Wireless transmission devices are the ideal alternative to fixed cables, particularly in harsh environments where traditional wiring is prone to damage. By eliminating the need for physical cabling such as RS-232, ACT POWER’s EASYCON Connect Series breaks cable limits, offering customer-centric design-in services to create reliable and innovative IoT M2M (Machine to Machine) systems across various domains.
Scalable Machine-to-Machine Wireless Solutions for the Evolving IoT Landscape
Background
Challenge
Industrial & Consumer Tech
Wireless Transmission Distance
Signal Attenuation and Interference
Integration with Legacy Systems

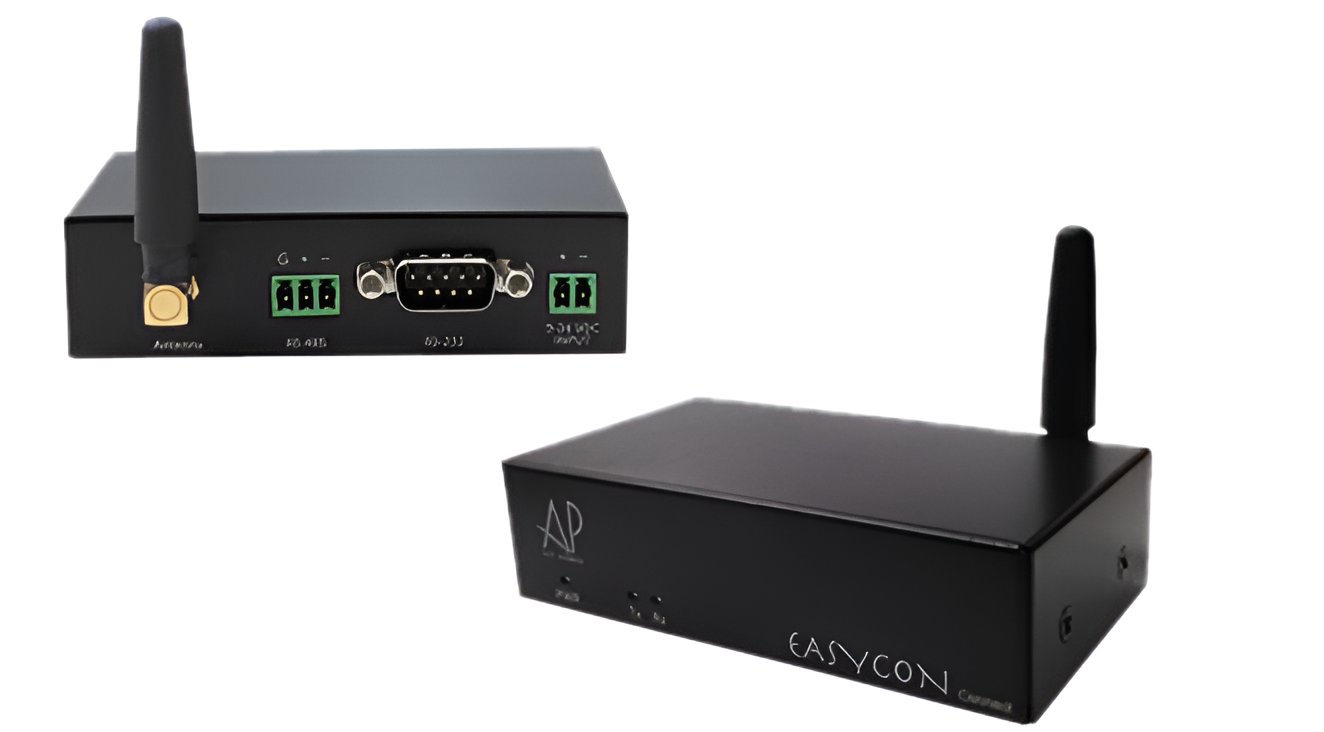

EASYCON Connect Series replaces RS-232/RS-485 cables with reliable 2–15 km wireless transmission via LoRa, overcoming challenges posed by weather, terrain, wildlife, and other harsh environmental constraints. With 8 frequency segments and DIP switch-configurable baud rates, it ensures robust, interference-free communication, making it ideal for industrial, smart city, agricultural, and non-critical military applications.
Solution:
Overcoming Harsh Environment Challenges with LoRa Wireless RS-232/RS-485 Replacement

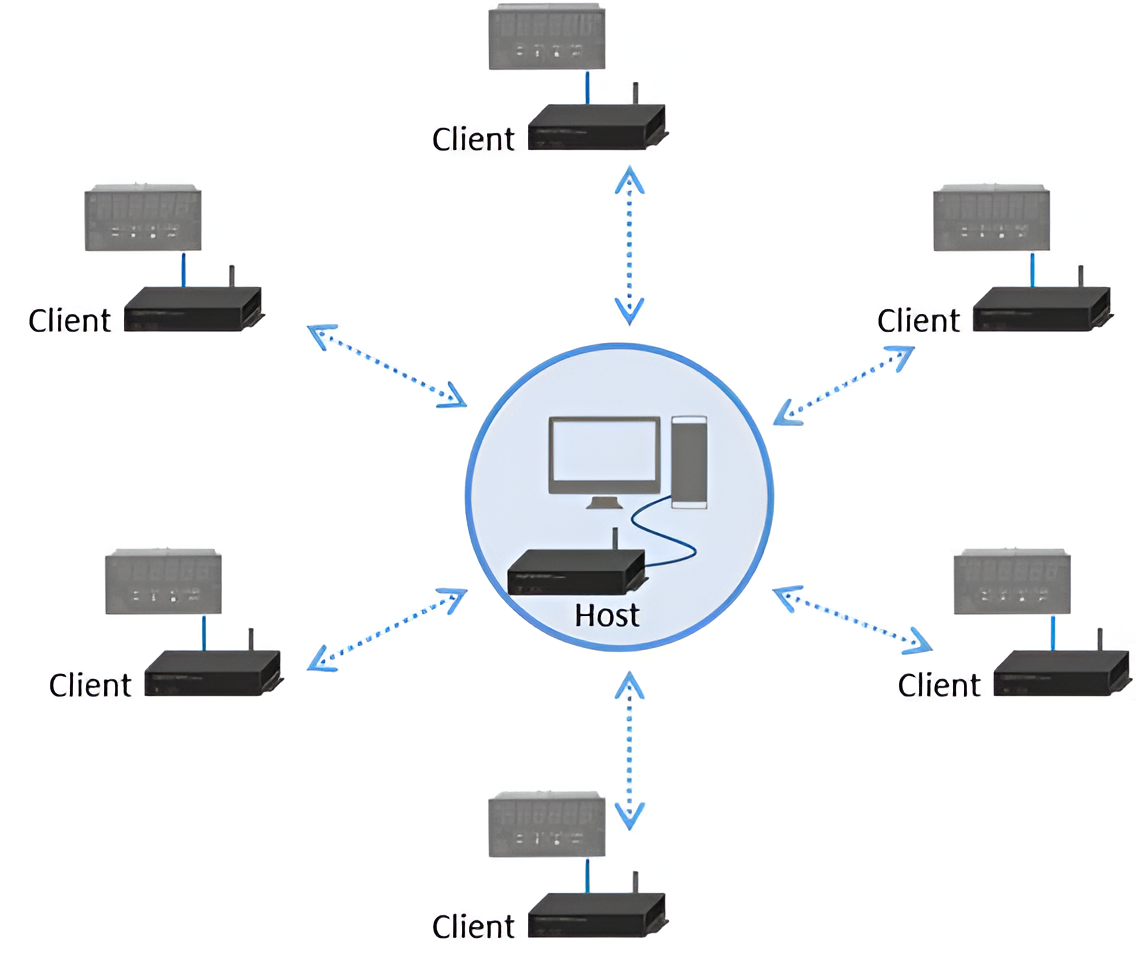

- Long-Range, Low-Power LoRa Technology: Enables secure data transmission between host and client with extended range and low power consumption.
- Support Sub-1GHz: Support multiple frequency ranges to meet ISM (Industrial, Scientific, and Medical) bands in different countries.
- Configurable Tx/Rx Modes: Allows easy switching between transmit and receive functions via DIP switch under Engineering Mode. Ideal for debugging and testing.
- Interference Prevention with Frequency Segments: Offers 8 selectable frequency channels to minimize signal interference from nearby systems.
- DIP Switch Baud Rate Selection:
Supports multiple baud rates (115200, 38400, 19200, 9600 bps) easily configured via DIP switch for flexible integration.
Benefits & Advantages
