ACT-EE0019 | ACT POWER TAIWAN

Up to 11.3Gbps Data Links
Up to 80km Transmission on SMF
EML Transmitter and APD Receiver
Metal Enclosure for Lower EMI
2-Wire Interface with Integrated Digital Diagnostic Monitoring
Hot-Pluggable SFP+ Footprint
Specifications Compliant with SFF 8472
Compliant with SFP+ MSA with LC Connector
Supported 9.95 to 11.3Gb/s Reference-Free
Max Power Dissipation: Up to 1.8 W Power Dissipation for Industrial Temperature
Compliant to SFF-8431, SFF 8472, RoHS
Applications: 10G Ethernet, 10G SONET/SDH, OTU2/2e

ACT-EE0019 - optical characteristics

ACT-EE0019 - electrical Characteristics

Operating Temp.

-40°C to +85°C

Storage Temp.

-40°C to +85°C

Humidity

5% - 95% RH

Electrostatic Discharge (ESD)

IEC/EN 61000-4-2

Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022 Class B (CISPR 22A)

Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022 Class B (CISPR 22A)

Laser Eye Safety

FDA 21CFR 1040.10, 1040.11 IEC/EN 60825-1, 2

Component Recognition

IEC/EN 60950, UL

ROHS

2002/95/EC

EMC

EN61000-3

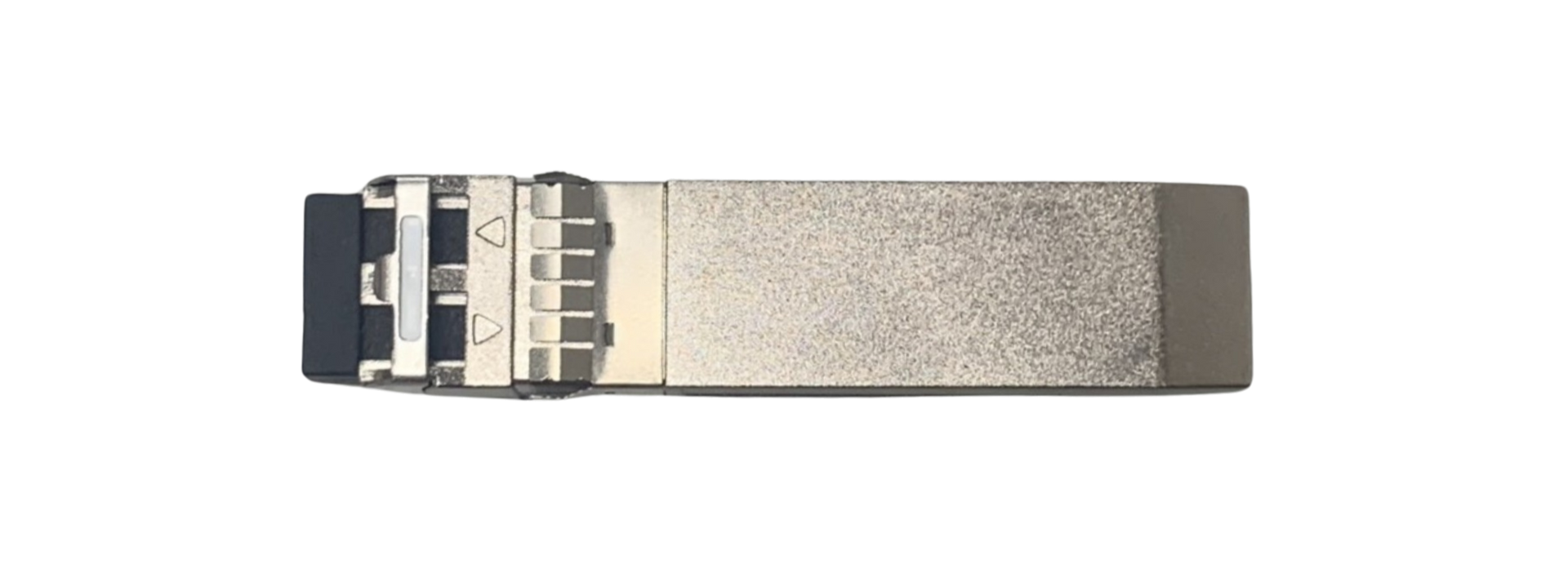

ACT-EE0019

10Gb/s 1550nm SFP+ 80kmTransceiver
