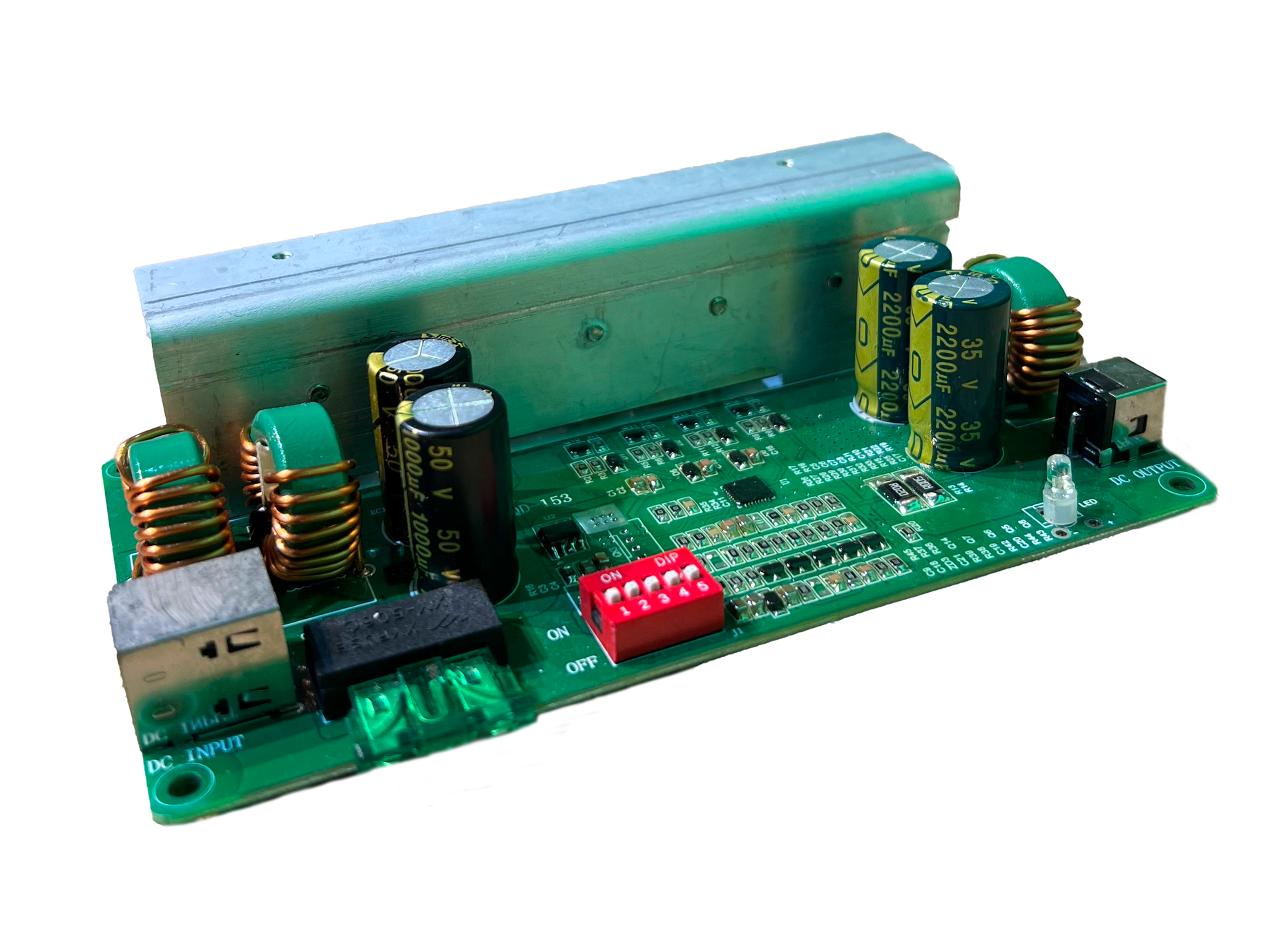

ACT POWER VES-P1201 Universal Power Supply

VES-P1201



  • 9 to 36VDC Input

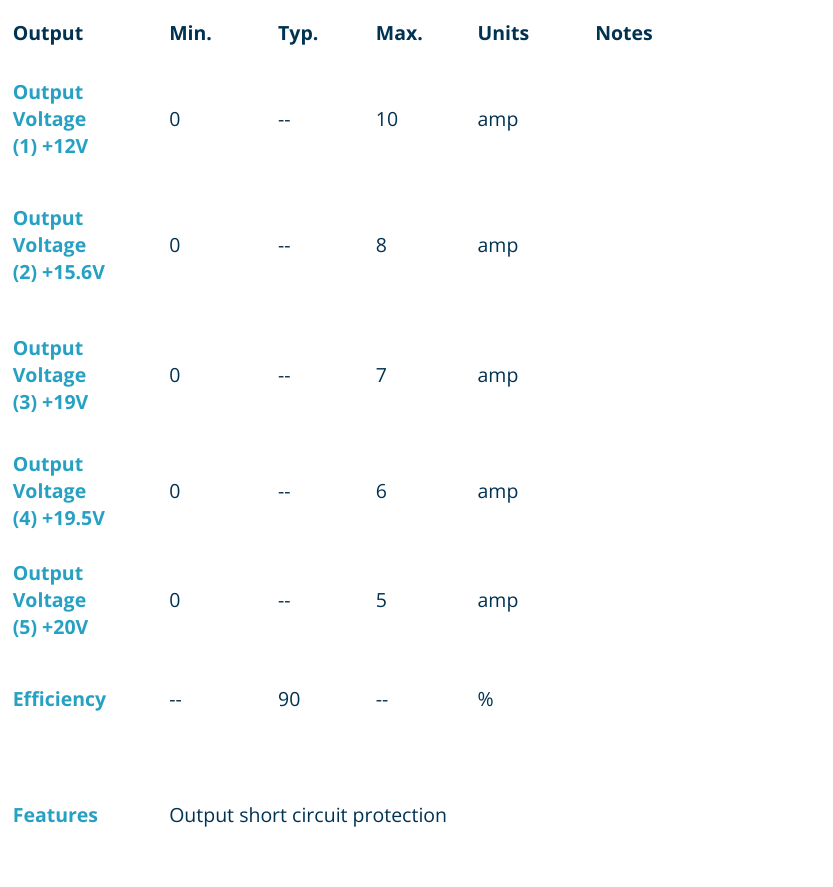

  • Adjustable 5 Different VDC Outputs
  • Including 12V/10 amp, 15.6V/8 amp, 19V/7 amp, 19.5V/6 amp, 20V/5 amp
  • Input Polarity Reversed Protection
  • Spade Type Fuse Protection
  • Non-Isolated Power Supply Module

Universal Power Supply Module

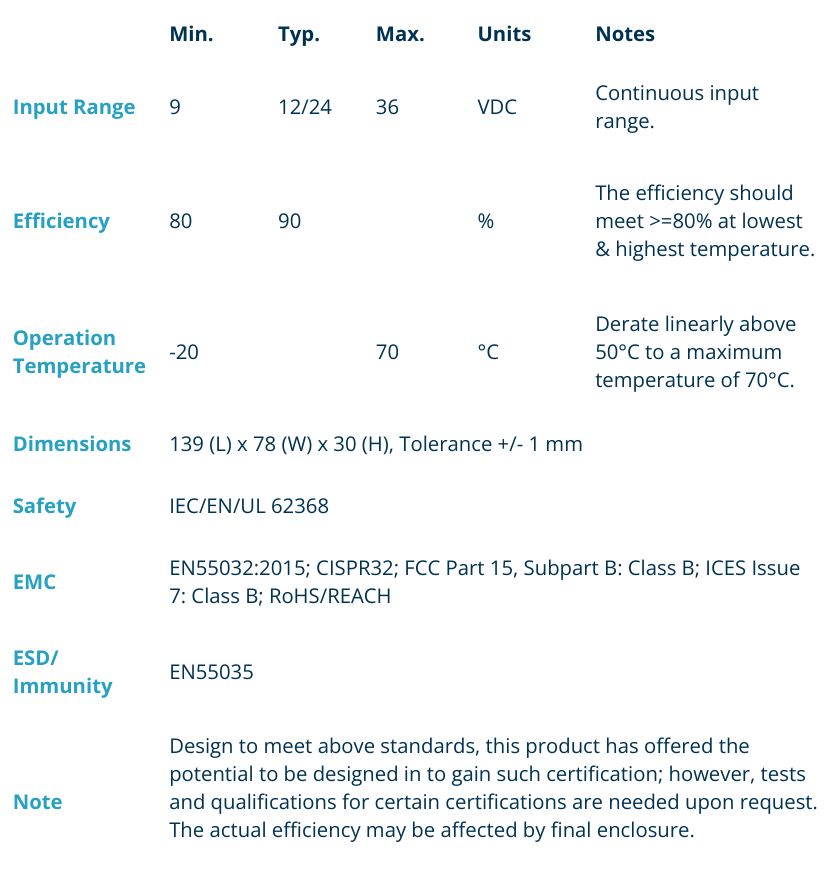

Safety

IEC/EN/UL 62368


EMC

EN55032:2015; CISPR32; FCC Part 15, Subpart B: Class B; ICES Issue 7: Class B; RoHS/REACH


ESD/ Immunity

EN55035


Note

Designed to meet the above standards, this product offers the potential to achieve such certification; however, testing and qualification for certain certifications are available upon request. The actual efficiency may be impacted by the final enclosure.

VES-M0801

Universal Power Supply Module


Related Product Mix

Docking Station Product Mix

ACT POWER Vehicle Docking Station Product Mix

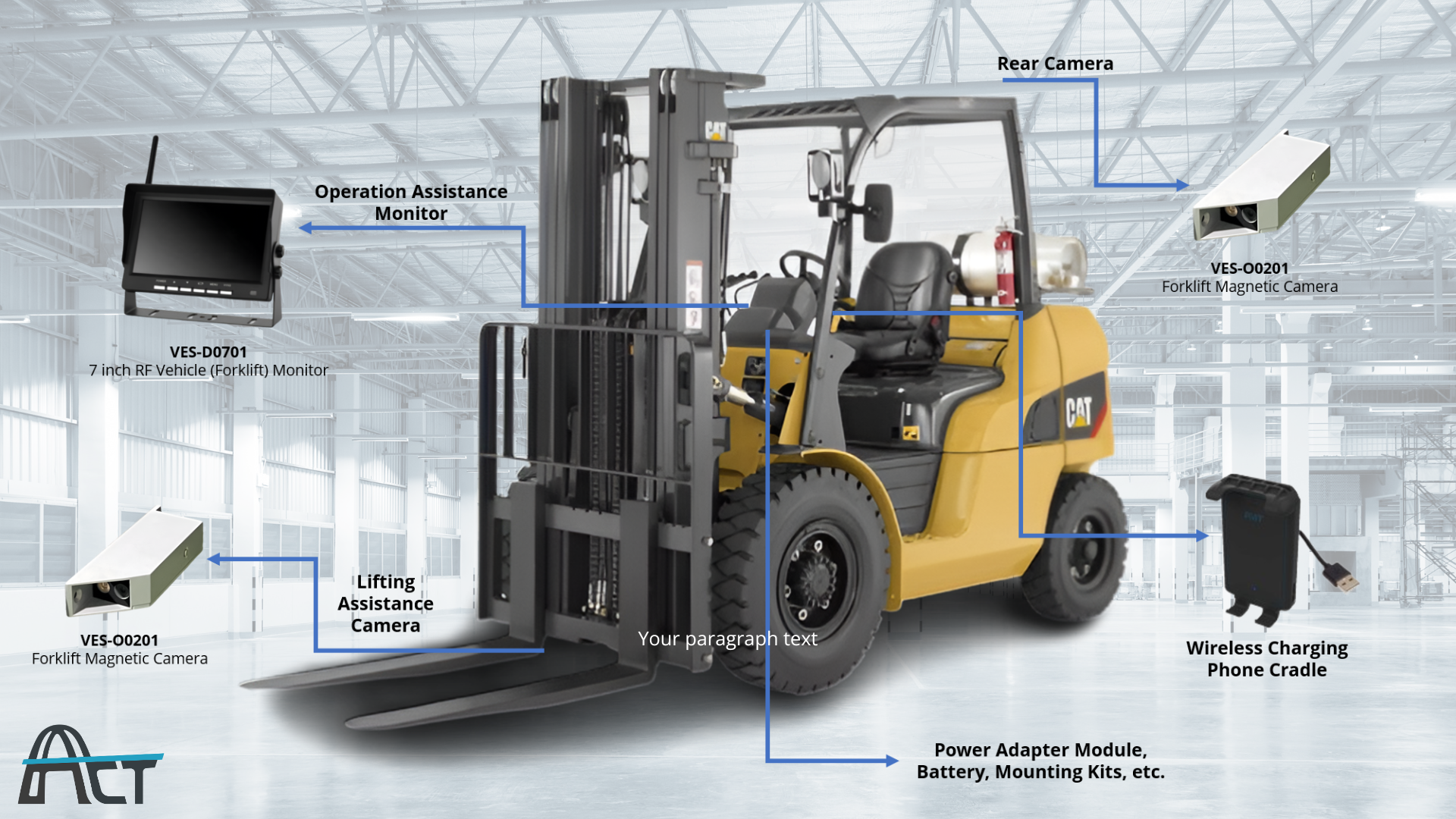

Forklift Product Mix
