CPU

Qualcomm Cortex-A53 64-bit Octa-Core Processor, 1.8GHz

GPU

Adreno 506

Operating System

Android 9.0

RAM

4GB LPDDR3

Storage

16GB eMMC (64GB Optional)

Storage Expansion

Micro SD 128GB

LCD Panel

10.1 Inch, 1280 x 800

Brightness

1000 nits

Touch Screen

Multi-Points Capacitive Touch

Camera (Optional)

Front: 5MP

Rear: 16 MP with LED Light

Bluetooth

4.2 BLE

WLAN

IEEE 802.11 a/b/g/n/ac, 2.4GHz/5GHz

Cellular

LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)

GNSS

GPS/GLONASS

NFC (Optional)

• Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 & 424 bit/s
• MIFARE 1K, 4K, NFC Forum Type 1, 2, 3, 4, 5 Tags, ISO/IEC 15693 All Peer-to-Peer Modes
• Card Emulation Mode (from Host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s T3T FeliCa

Sound

Built-in Speaker 2W, 85dB, Internal Microphones

Interfaces

• Type-C, USB 3.0 (For Data Transfer, Support OTG)
• Docking Connector x 1 (24 Pins)
• Headset Jack

1D/2D Scanner (Optional)

All Major 1D Barcodes, PDF417, QR Code M1/M2/Micro, and Data Matrix

Fingerprint Reader (Optional)

Capacitive, Area Sensor

Sensors

Acceleration Sensor, Gyroscope, Compass

Power

DC8-36V (ISO 7637-II Compliance)

Battery

3.7V, 8000mAh Li-ion (Replaceable)

Operating Time

4.5 Hours (Typ.)

Battery Charging Time 4.5 Hours

Dimension

277 x 185 x 31.6mm

Weight

1357g (2.99lb)

Gravity Drop Resistance

120cm

Vibration

MIL-STD-810G

IP Rating

IP67

Operating Temperature

-10°C to 65°C (Charging 0°C to 50°C)

Storage Temperature

-20°C to 70°C

VES-L1001

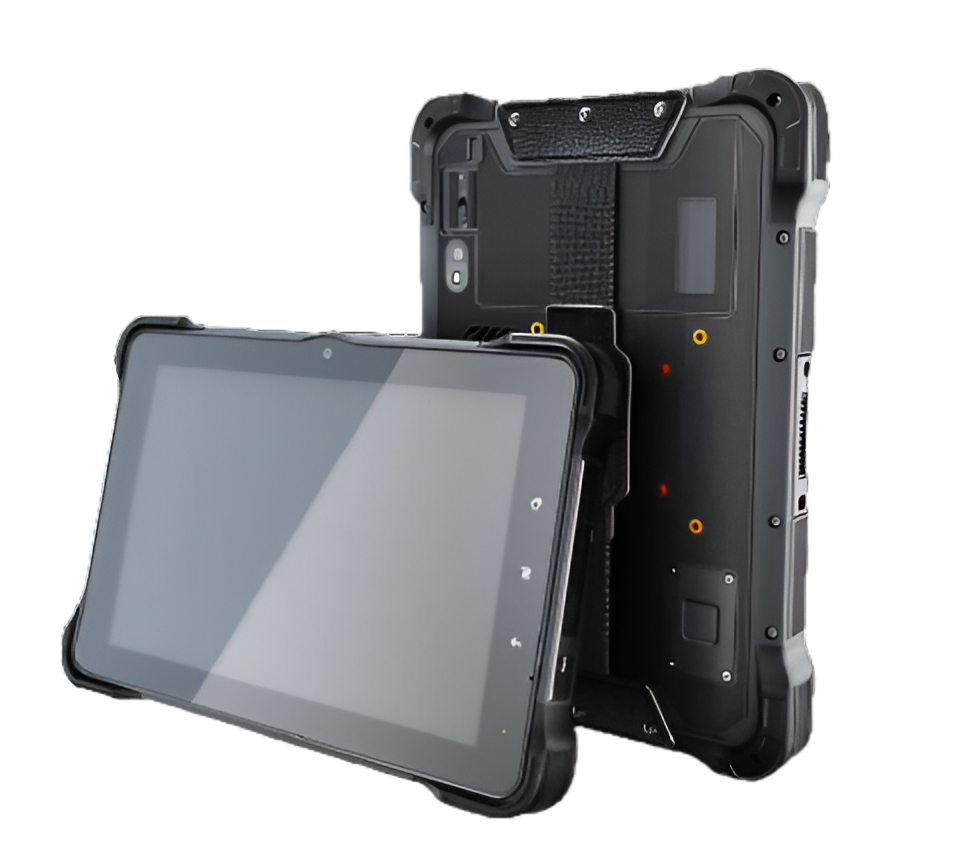

10.1” Rugged Android Tablet, Allen Wrench, Screws for RAM, SIM Card Plug, USB to Type-C Cable, Standard Model

VES-L1001-P

VES-L1001-P 10.1” Rugged Android Tablet, Allen Wrench, Screws for RAM, SIM Card Plug, USB to Type-C Cable, Pro Model

Optional Accessories

VES-L1001-VD

Vehicle Docking

VES-L1001-J1

J1939 Female to Open Wire

VES-L1001-OB

OBD-II Female to Open Wire

VES-L1001-BM

RAM 1” Double Ball Mount with Backing Plate
