Size
8-Inch
Resolution
1280 x 720
Aspect Ratio
16:9
Backlight
LED
Brightness
20~800 nits (Auto Dimming Adjustable)
Contrast Ratio
900:1
Display Color
16.7M
Response Time
40ms (Max)
Viewing Angle
85°/85°/85°/85° (R/L/U/D) CF>10
Active Area
178.20 x 102.20 mm
Interface
HDMI x 1, RJ45 x 1, USB-B x 1, USB-A x 2, USB-C x 1, 3.5mm AUX Audio Line Out x 1
Glass
Anti-Glare, Anti-Reflective
Touch Panel
Capacitive Mult-Touch
Touch Interface
USB Type B
Power Input
11V ~ 16V, 5A (12V Nominal)
Power Adapter
12V 5A (Optional)
Accessories
HDMI Cable x 1, USB Type B Cable x 1, VESA Mounting Screws x 4 (All in Accessories Bag), Power Cable x 1
Operating Temperature
-20 ~ 70 ℃
Storage Temperature
-30 ~ 80 ℃
Waterproof
IP65 Front Panel
Spark
5W x 2
Weight
860g (Max)
Dimension (mm)
222.95 x 166.95 x 35.8 mm
Mounting
75 mm VESA Mount
Compliance
MIL-STD 810G Shock and Vibration Specifications
MIL-STD 810G Temperature and Humidity (Operational and Storage)
VES-D0801

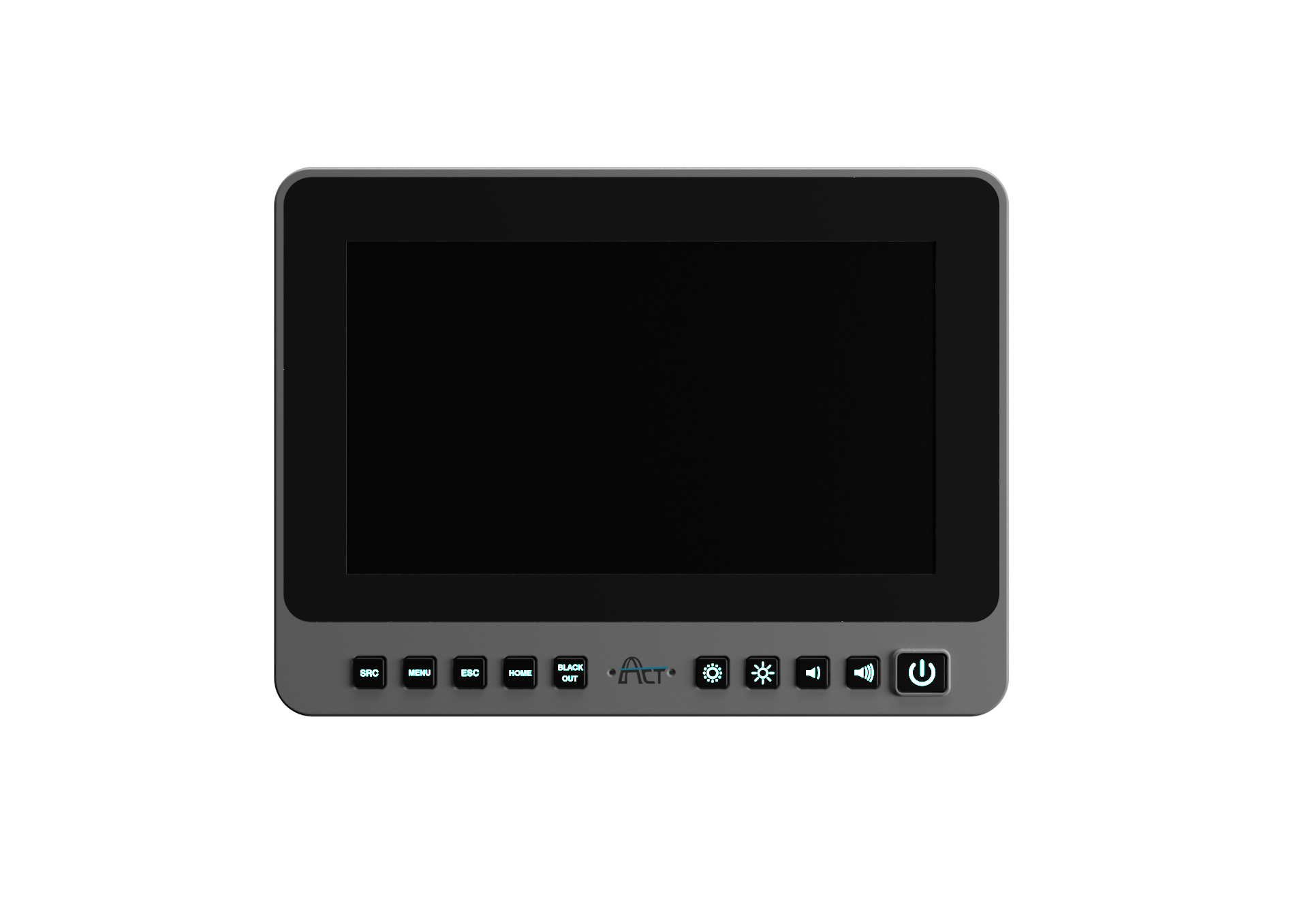

8” Rugged Vehicle Monitor
