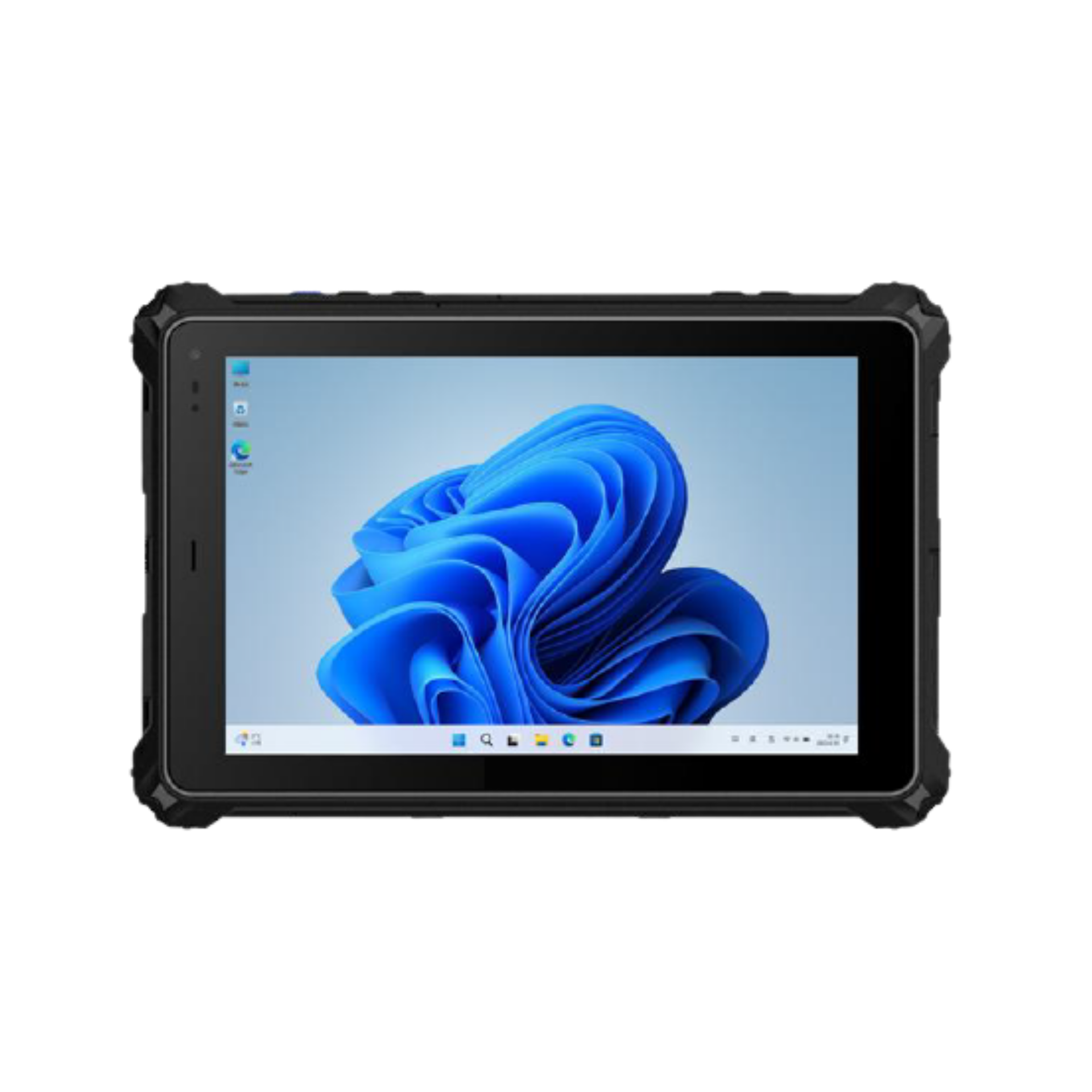

ACT POWER VES-L1008 10 inch N150 High-Brightness Rugged Tablet

VES-L1008



  • Intel N150, Quad-core
  • 10" FHD IPS Display, 1200 x 1920
  • 1000 nits High Brightness
  • 8GB RAM + 128GB Storage
  • Win 11
  • 5,100mAh High-Capacity Battery
  • IP68 Rating
  • Wi-Fi 6E & BT 5.3 Connectivity

10 inch N150 High-Brightness Rugged Tablet

CPU

Intel N150, Quad-core, 1.2 GHz base frequency, up to 3.6 GHz


LCD Panel

10” FHD IPS LCD, 1200 x 1920


Brightness

1000 nits


Memory

8GB (Optional: 6GB/12GB/16GB)


Storage

128GB (Optional: 256GB/512GB)


OS

WIN11


Camera

Front: 5MP Fixed-Focus

Rear: 13MP with Auto Focus


Battery

7.6V/5100mAh


3G/4G

WCDMA: B1/B2/B5/B8

CDMA2000

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B,B12/B13/B14/B66/B71

LTE-TDD: B38/B39/B40/B41


Wireless

WIFI6E 802.11(a/b/g/n/ac/ax) 2.4G+5G; BT5.3


Location

GPS + Glonass + Beidou + Galileo


Speaker

2x Speaker, 1W/8Ω


Sensor

G-sensor, Gtro-Sensor


Touch

10 Points Touch, G+G, Hardness 7H, Corning Gorilla Glass


I/O Interface

1x Type-C USB3.0 (Support OTG)

1x USB2.0

1x HDMI

1x RJ45 100/mbps

1x RS232

1x 3.5mm Earphone

1x Pogo Pin (12 Pin USB + Charging)

1x SIM Card Slot

1x TF Card, Max Support 256GB


Button

1x Power key

1x Volume + / Volume –

2x programmable function keys (F key / P key)


Power

DC 12V/4A


Dimension

283.19 x 187.79 x 22.85 mm


Operating Temperature

-20°C to 60°C


Storage Temperature

-30°C to 70°C


Humidity

90% @25°C, non-condensing


IP Rating

IP68


Certification

CE, RoHS, IEC62133, UN38.3


VES-L1008

10 inch N150 High-Brightness Rugged Tablet
