ESY-CI704
- Intel® Core™ i7-1255U Processor, Benchmark 13271
- Supports Dual Channel DDR5 3200 SODIMM, up to 64GB
- Support HDMI, VGA Outputs
- 2 x 1 GbE LAN Ports
- Industrial SSD or Innodisk SSD Support Wide Temperature (-40°C - +85°C)
- Wide Range DC 9 - 36V Input
- Support Windows 10 IoT
- Conduction Cooling, Fanless Chassis

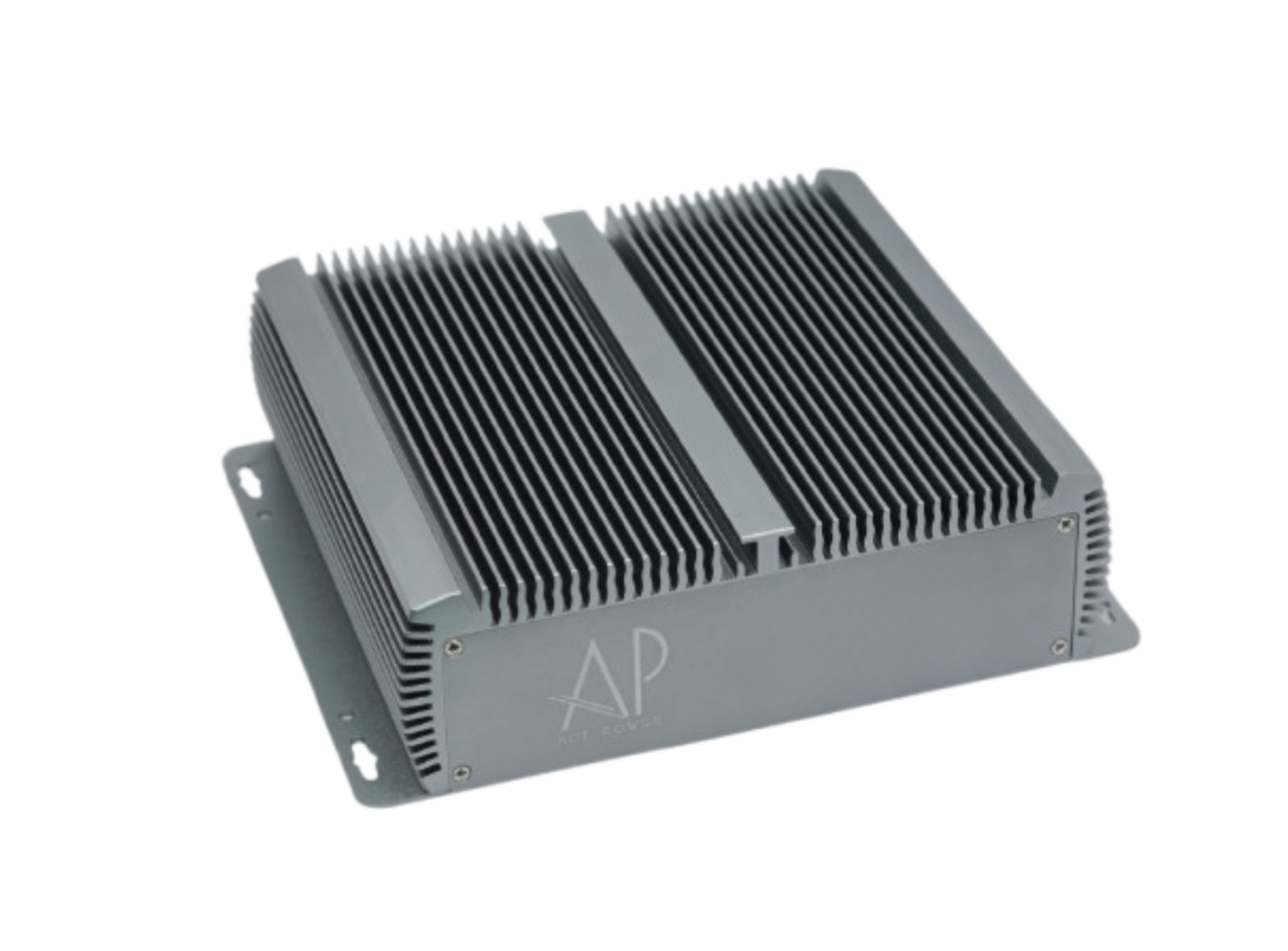

Intel i7 12th Generation CPU Rugged BOX PC
CPU
Intel® Core™ i7-1255U Processor, 12M Cache, up to 4.70 GHz
Memory
Dual DDR5 4800 MHz, Up to 64GB Maximum
Storage
2x SATA III, 6Gb/s
1x M.2 NVME 4x
Graphics
Intel® Iris® Xe Graphics Eligible
Display
1x HDMI
1x VGA
Ethernet
2x GbE LAN
I/O
2x RJ45
1x HDMI
1x VGA (Optional DP)
2x USB3.0
1x Audio In
1x Line Out
1x COM
WiFi/GPS
Optional Module: 4G/Wi-Fi/GPS
Power Input
9-36VDC
OS
Windows 10 IoT
Chassis
Rugged Floor Mount Design. Customization To Be Discussed
Form Factor
220 x 205 x 65 mm
Operating Temp.
-20°C to +60°C for Industrial SSD or -20°C ~ 70°C for Innodisk SSD
Storage Temp.
-30°C to +70°C
Humidity
90% @40°C, Non-Condensing
ESY-CI704
Intel i7 12th Generation CPU Rugged BOX PC
