VES-CNV06
- Compact Fanless Design
- Embedded with NVIDIA® Jetson AGX Orin Up to 275 TOPS
- Supports 4 x GbE (Optional PoE), 4 x USB 3.2 Gen 2 (10 Gbit/s)
- Supports 2 x mPCIe, 2 x Nano SIM Slots
- Supports Allxon 24/7 Remote Monitoring and OTA Deployment; Azure Certified Devices

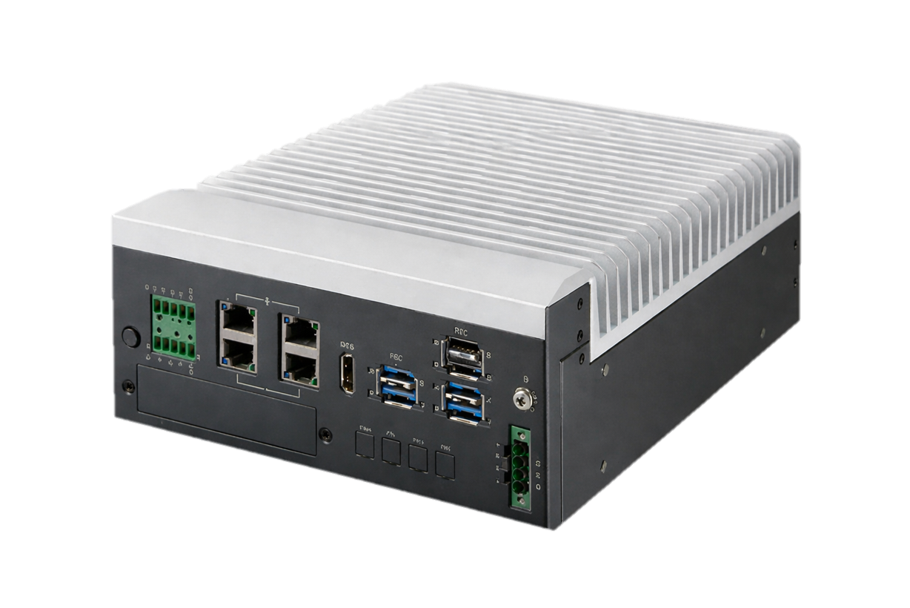

NVIDIA® Jetson AGX Orin 32G Fanless AI Box PC
System
AI Accelerator — NVIDIA® Jetson AGX Orin™ 32GB
CPU — NVIDIA 8-Core Arm® Cortex A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3
GPU — NVIDIA 1792-Core Ampere GPU With 56 Tensor Cores
Memory — 32GB 256-bit LPDDR5
Storage — 1 x SD Card Slot,
1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
Indicator — 3 x LED (GbE/PWR/GMSL)
Wireless LAN — Support Wi-Fi 6/BT 5.3 (Via M.2 Key-E 2230 x 1)
Fanless — Yes
Power
Power Supply — DC 9-36V, 16-4A
Interface
Ethernet — 4 x 10/100/1000 Mbps
PoE — 4 x PoE (10/100 MbE, Single-30W/Total-60W)
USB — External: 2 x USB 2.0, 4 x USB 3.2 Gen2, Internal: 1 x USB 2.0
Serial Port — 2 x RS-232/422/485 (Onboard P deader)
Mini PCIe — 2 x mPCIe (Singal: PCIe=USB)
SIM — 2 x Nano SIM Slots
M.2 — 1 x M.2 3052(B-Key, Signal: USB)
DIO — 4-ch DI, 4-ch D0
Display — 1 x HDMI (Max. Resolution 3840x2160 @60Hz)
Button — 1 x Power ON/OFF Button
Compliance
Certification — CE/FCC Class A, According to EN 55032/55035
Vibration — MIL-STD-810G, Method 514.7, Category 4
Shock — MIL-STD-810G, Method 516.7, Procedure I
Form Factor (DxWxH)
Core Module 192 x 230 x 87mm
Plus MIC -75M10: 192x230x111mm
Weight
4.5kg
Operating Temp.
-10°C to 60°C with 0.7 m/s Airflow (MaxN Mode)
Storage Temp.
-20°C to 80°C
Humidity
95% @40°C, Non-Condensing
Operating Vibration
3Grms @5 ~ 500Hz, Random, 1hr/axis
Operating Shock
10G/11ms
VES-CNV06
NVIDIA® Jetson AGX Orin™ 32G Fanless AI Box PC
