ESY-O0201
- Integrated Ambarella CV28 AI Vision Processor
- Memory: 256MB NAND/1GB LPDDR4 SDRAM
- Storage: 64GB Micro SD Card
- Supports Advanced Image Processing/Encoding & AI Vision Computing
- Built-in LTE & Wi-Fi Modules & Antennas to Enable Live Video Streaming
- H.264 Video Streaming Encoding, Built-in 64GB Storage
- Support the SOS Button to Trigger the Emergency Event Recording & Sync to GMS Cloud
- Support 120-Degree Horizontal FOV Video Recording with Dual Mic
- Easy Wearing Option: Modularized & Adjustable Chest/Shoulder Clip

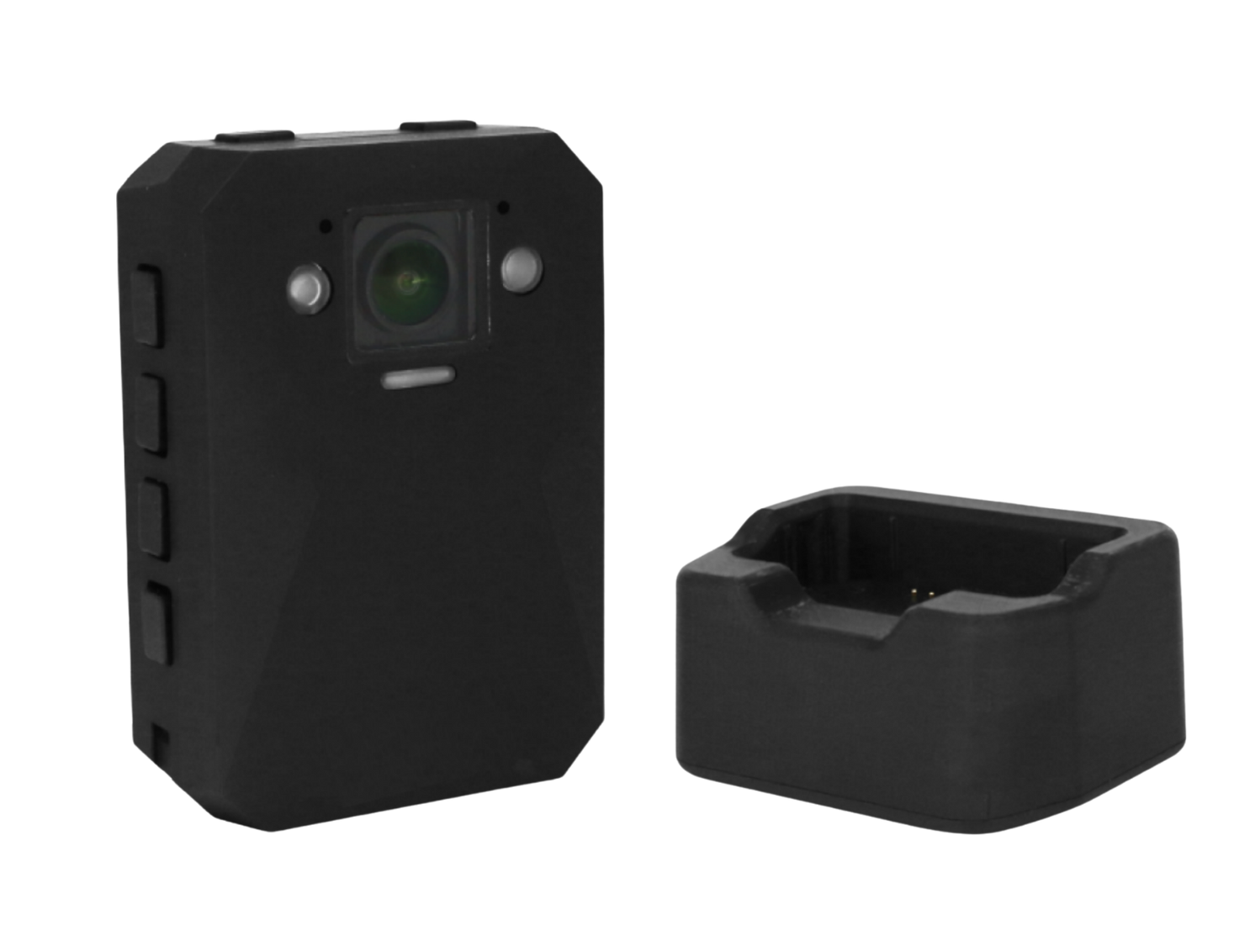

4G 1080P Body-Worn Camera
System SOC
Ambarella CV28 Intelligent Vision Processor
Memory
256MB NAND/ 1GB LPDDR4 SDRAM
Storage
64GB Micro SD Card
Video Encoding Format
H.264
CMOS
Sony Starvis IMX335 CMOS
Camera FOV
FOV (D/H/V): 152° / 120° / 72°
Video Recording
Support 1080P/720P/VGA Resolution, 25/20/15/8 FPS
Video Streaming
Support 1080P/720P/ VGA Resolution, 25/20/15/8 FPS
Recorded Data
Support Pre-Recording & Post-Recording Buffer; Local-Tone HDR, Low-Light Enhancement, EIS
Video Function
2 x Build-in MEMs MIC, 1 x Nano SIM Card Socket, 1 x Mini USB, 5 x Dock Pogo-Pin for Charging/Connection
I/O
1 x Mounting Socket
4G & GPS
Built-in 4G& GPS Module & Antenna
Wi-fi
1. Built-in 2.4GHz Wi-fi 5 Module & Antenna
2. Support Smartphone/PC Connection via Fixed IP WebGUI
3. Support Video/Audio Setting, Firmware OTA, Manually Download
Buttons
31 x Power Buttons, 1 x Video Record, 1 x Audio Record, 1 x SOS, 1 x Snapshot, 1 x Light, 1 x Menu
Indication LED
Top: 1 x Power LED, 1 x Record LED, Front: 1 x LED
Audio Prompt
Built-in Speaker, Support Audio Indication
Battery
3000mAh @ 3.7V Battery Life: 8 Hours
Form Factor
90 mm x 61 mm x 27.7 mm
Weight
Approx. 160 g
Accessories
1 x Chest Clip, 1 x Mini-USB Cable
Options: 1 x Shoulder Clip , 1 x LANDock
Form
1 Piece & Compact Footprint, Can Fit on A Desk without Replacing Other Items, Can also Be Carried in A Bag or Briefcase
Dimension
99 x 59.5 x 42mm
Weight
70g
I/O Ports
1 x 10/100 Mb Ethernet RJ-45 (for Data Upload/Download)
Indication
1 x LED, Green = DC-in, Orange = MDE68 & RJ-45 & DC Are All Connected
Power
Comply with Common USB Adapter DC=5V, Max. Output > 2A
Operation Storage Condition
Working Temp — 0°C to +40°C
Storage Temp — -40°C to +65°C
Humidity — 40-80% RH (Non-Condensing)
Operating Temperature
-10°C to +50°C
Storage Temperature
-40°C to +80°C
Humidity
40% - 80%, Non-Condensing
Drop-Proof
Drop-Proof 1.5m
Water-Proof
Comply with IEC IPX5
ESY-O0201
4G 1080P Body-Worn Camera
