CPU  Optional A ccessories

MTK MT6771 Octa-Core 2.0GHz

Memory Storage

4GB

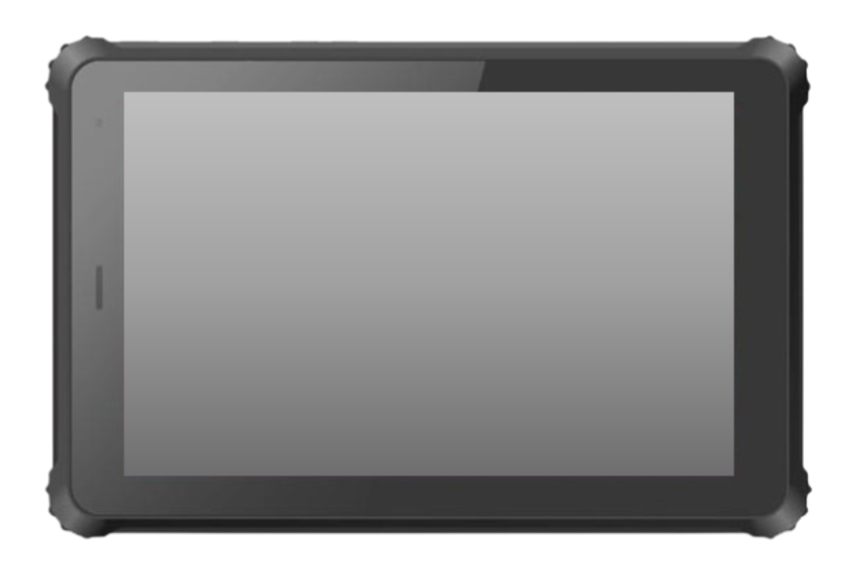

LCD Panel

10.1-inch TFT-LCD

1280*800 450/1000 nits

1920*1200 800nits

Cover Glass

CGG, 7H, Light Transmittance 85%

Touch Screen

5-Point Capacitive Touch Screen

AG/ AF/ Wet Hand/ Glove

Storage

64GB

Camera

Front Camera: 5MP with Fixed Focus

Rear Camera: 13 MP with Auto Focus amd Led Light

Speaker

Dual Speaker

MIC

Dual MIC

Earpiece

WaterProof Earpiece

Switch Button

Power On/Off: 1pc

Volume +/-: 1pc

Customized Function Key

Barcode Scanner Shortcut Key

LED Indicator

Charging Indicator

Sensor

Support G-sensor, Gyroscope, E-compass, Distance sensor, Motor, Light sensor

I/O Interface

POGO PIN: 1 x pogo pin( USB+Charging)

USB: Type C x 1, Type A 2.0 x 1

Video: 1 x Mini HD

Audio: 3.5mm Headphone Jack

DC Jack: 1 x DC Jack

LAN: 1 x RJ45

COM Port: 1 x RS232

SIM Card Slot: Micro SIM SIM Card x 1

TF Card Slot: 1 x up to 256GB

Aviation Plug: Expansion 1 x CAN

WWAN

2G: GSM

3G: WCDMA, TD-SCDMA, CDMA2000

4G: LTE-FDD, LTE-TDD

Battery

Li-lon Battery, 10000mAh@3.8v

Battery Life

10hrs (1080P Video under LCD 50% Backlight)

Certification

CE/ RoHS/ UN38.3/ MSDS/ IEC62133

Extended Function

NFC: 13.56 MHz

RFID: RFID/ HF RFID/ UFH RFID

ID Card Recognition

Barcode Scanner 1D/2D

Power Input

5V DC Input, 5V/3A Power Adapter

5-24V DC Input, No Battery Supply

Wireless

WIFI:  2.4G+5G Dual-Band

Bluetooth: v2.1+EDR/v3.0+HS/4.1 LE

GNSS: GPS+ BD+ GLonass

NFC

Yes

Dimension

274 x 181 x 23mm

Operating System

Android 11

Accessories

5V/3A Power Adapter

Certification

CE、RoHS、UN38.3、MSDS、IEC62133

Optional A ccessories

Office docking, Vehicle stand, Vehicle charger, Passive stylus pen, Type-C data cable, Type-C OTG cable, USB-DC cable, CAN BUS
