LCD Panel
10.1” LED Backlight LCD Panel
Resolution
1280 x 800
Aspect Ratio
16:10
Brightness
350 nits (1,000 nits optional)
Contrast Ratio
1000:1
Viewing Angle
85° /85° /85° /85°
Life Time
50,000 hours
Viewing Angle
85°/85°/85°/85° (R/L/U/D) CF>10
Audio & Video
1x HDMI
1x DVI
1x VGA
1x Audio In/Out
1x USB-A (touch screen interface)
Interface
HDMI x 1, VGA x 1, USB Type B x 1, USB Type A x 2, USB Type C x 1, 3.5mm AUX Audio Line Out x 1
Power
1x DC Input (9-36VDC)
Touch
Without touch/Capacitive touch, 2 options
Mounting
VESA 75 x 75 mm
Dimension
257 x 175.6 x 53.6 mm
Weight
Around 1.5kg
Power
349.09 x 252.24 x 32.4 mm
Operating Temperature
0°C to 60°C
Storage Temperature
-20°C to 70°C
Humidity
90% @25°C, non-condensing
IP Rating
IP65 Front Panel
VES-D1009-C

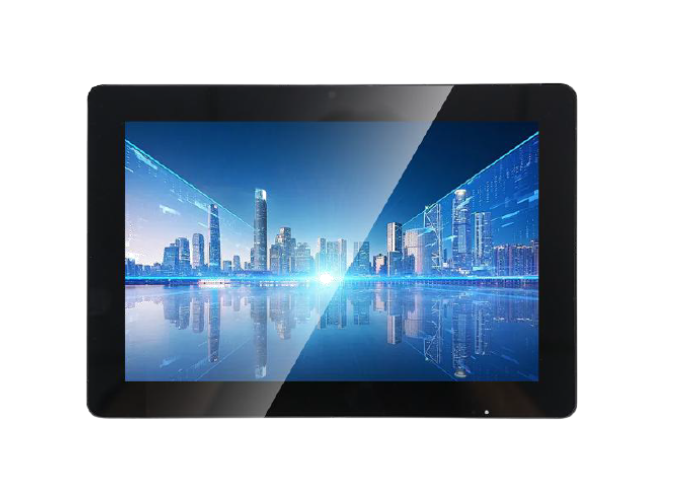

10.1 inch Industrial/ Vehicle Monitor (without touch)
VES-D1009-C
10.1 inch Industrial/ Vehicle Capacitive Touch Monitor
