Display
Display Size — 10.1” LED Backlight LCD
Resolution — 1920 x 1200
Aspect Ratio — 16:10
Brightness — Up to 1500 nits (with Auto Dimming)
Contrast Ratio — 1000:1
Viewing Angle — 170/170 (H/V)
Life Time — 50000 Hours
Touch
Touch Function — 10-Point Capacitive Multi-Touch
IP Rating — Standard IP65 Front
Interfaces
Audio & Video
- 1x HDMI (Up to 2160p30; 1080p60)
- 1x VGA (Up to 1080p60)
- 1x USB-C (Up to 1080p60)
- 1x 3.5mm Audio Jack
- 1x Speaker
USB — USB-C Available for Power Input (No PD & PD at the Same Time)
DC Input — 12-24VDC Input
Others
Form Factor — 251 x 170 x 33 mm
Weight — 820g (Standard Version)
Power Consumption — <=19W
Working Temperature
-20°C to +70°C
Storage Temperature
-30°C to + 80°C
IP Rating
Standard Version: IP65 Front
Extension Version: IP65 with Extension Cable
VES-D1004-S

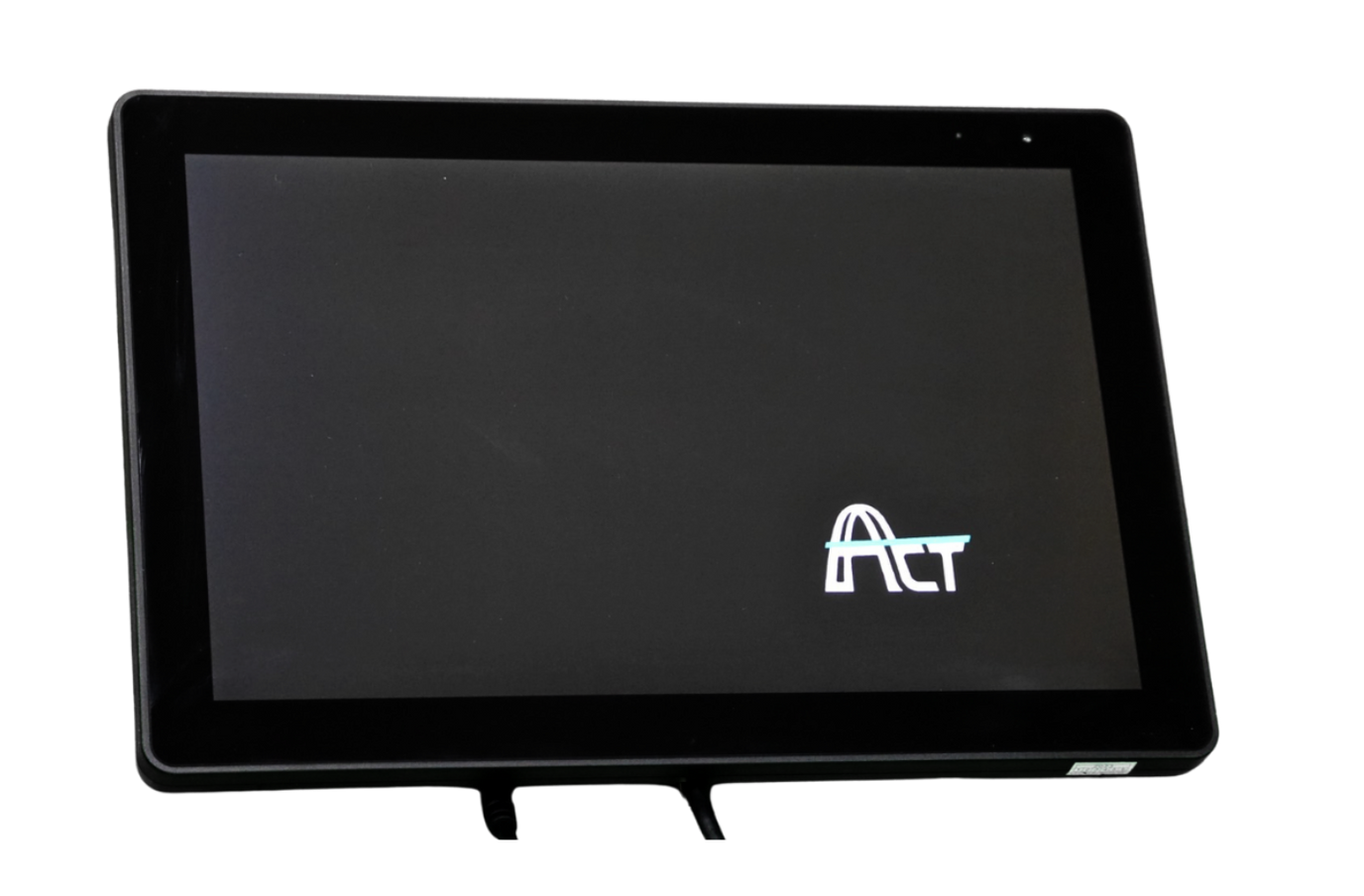

Standard Version 10.1" Industrial/Vehicle Capacitive Touch Monitor
VES-D1004-EV
Extension Version 10.1" Industrial/Vehicle Capacitive Touch Monitor
with VGA Interface
VES-D1004-EH
Extension Version 10.1" Industrial/Vehicle Capacitive Touch Monitor with HDMI Interface
