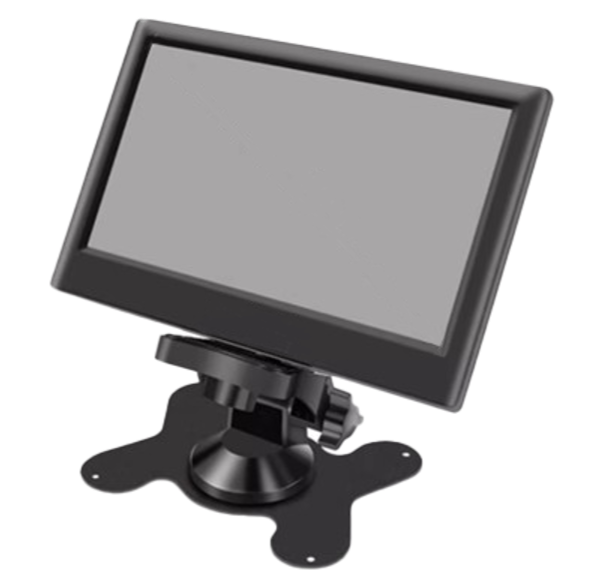

VES-D0702
7” Vehicle-Grade Capacitive Touch Monitor
- 7-inch Capacitive Touch Monitor
- 1024 x 600 Resolution
- Brightness 300 cd/m²
- HDMI Input
- USB Port for Touch Interface (Support Raspberry Pi)
- Anti-Glare
- IP65 Front Panel
- Works for Raspberry Pi 4/3/2/Zero, Windows, Linux, etc.
- Rugged Design
- VESA Mount
LCD Panel
LCD Panel — 7-inch LED Backlight LCD Panel
Resolution — 1024 x 600
Brightness — 300 nits
Viewing Angle — 170/170 (H/V)
Touch Screen
Touch Function — Capacitive Multi-Touch
IP Rating — IP65 Front Panel
Surface Treatment — Anti-Glare
Interfaces
1x HDMI
1x USB-A (for Touch Control)
1x DC Input
Others
Form Factor — TBD
Weight — TBD
Power Input — 9-16 VDC
Power Consumption — 6W Typical (TBD)
Mounting — RAM Mount
VESA Mount — 75 x 75 mm
Working Temperature
-20°C to +60°C
Storage Temperature
-30°C to + 70°C
Humidity
10%- 90% RH, Non-Condensing
IP Rating
IP65 Front
VES-D0702
7” Vehicle-Grade Capacitive Touch Monitor
