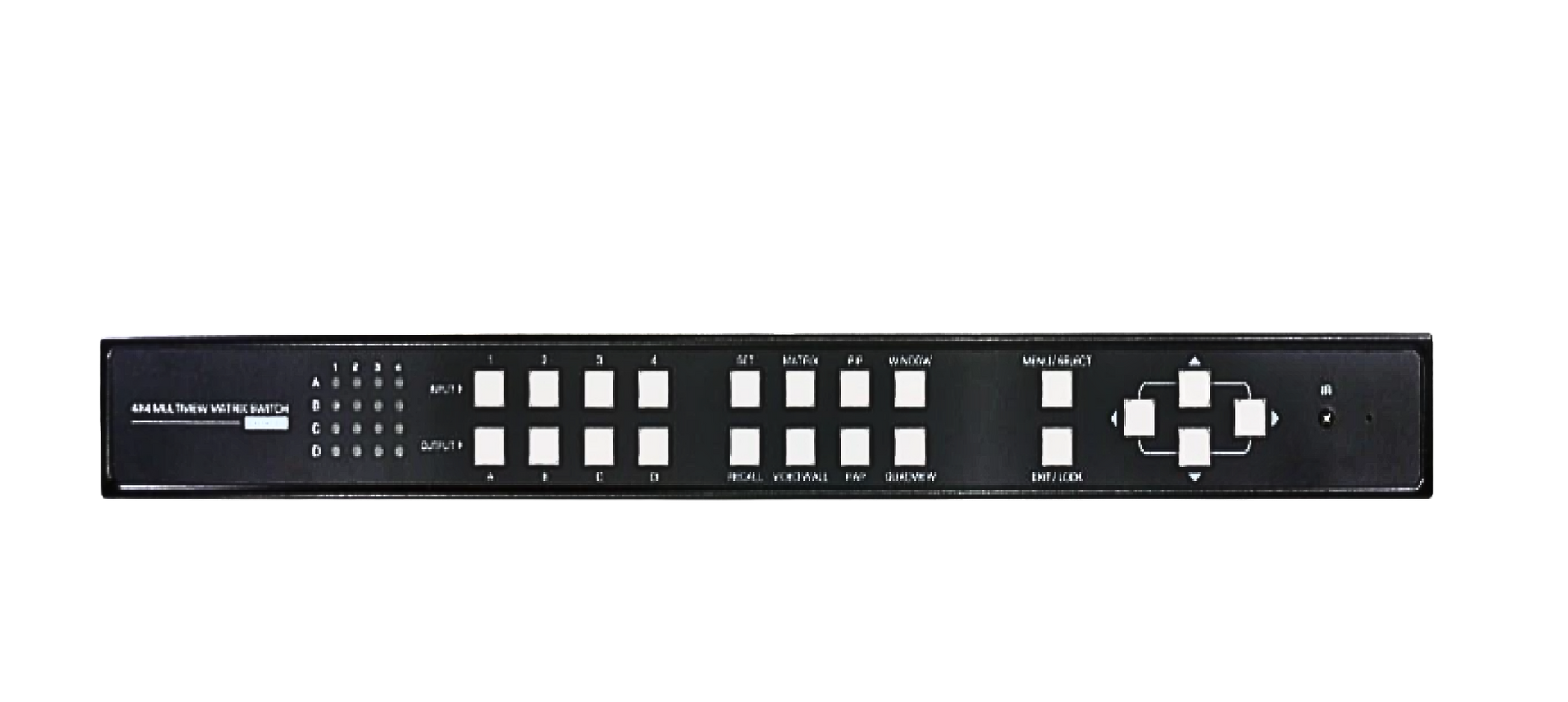

PAV-V4601
4 Inputs to 4 Output Multiviewer
- Selects Any of the 4 HDMI 2.0 Source Inputs to be Dynamically Exhibited onto 4 HDMI UHD Monitors
- Supports Mainstream Video Resolution of 3840 x 2160@60Hz (UHD TV 4K Standard)
- Supports Advanced Video Resolution up to 4096 x 2160@60Hz (DCI 4K Standard)
- Offers 5 Display Modes, All Applicable to Support Video-Wall Presentation
- Enables Mouse Drag-and-Drop Video Source Swapping in PIP-View, PAP-View, and Quad-View Display Modes
- Allows Free Drag-and-Resize Window Position and Size Adjustments in Window-View Display Mode
- Features 8 Video-Configuration Memory Banks for Different Users or Applications
- Provides 5 Control Methods: Push Buttons, Mouse, IR Remote Control, OSD Menu, and RS-232 Serial Control
- Supports 2 x 2 Video-Wall Layout
- Firmware Upgradeable via USB Port
- Designed in a 1U Rackmount Form Factor
- Supports Lockable HDMI Cables
Interface
Input — HDMI x4
Output — HDMI x4
Other I/O — RS-232
IR
1 x IR Receiver (Front Panel)
1 x IR 3.5mm Phone Jack for Connecting IR Extender (Rear Panel)
Buttons
1 x 2 — Position Power Switch
22 x LED Backlit Momentary Switch
LED Indicator
Fixed — 16 (Green)
Backlit Switch — 8 (Green) + 8 (White) + 5 (Blue) + 1 (Orange)
Resolution
3840 x 2160(UHD 4K) / 4096 x 2160(DCI 4k)
Power
DC 12V
Weight
2.3 kg
Safety / Emission
FCC, CE
Form Factor
438 x 200 x 44 mm
Storage Temperature
-20 to 60℃
Operation Temperature
0 to 40℃
Humidity
0 to 90% RH, Non-Condensing
