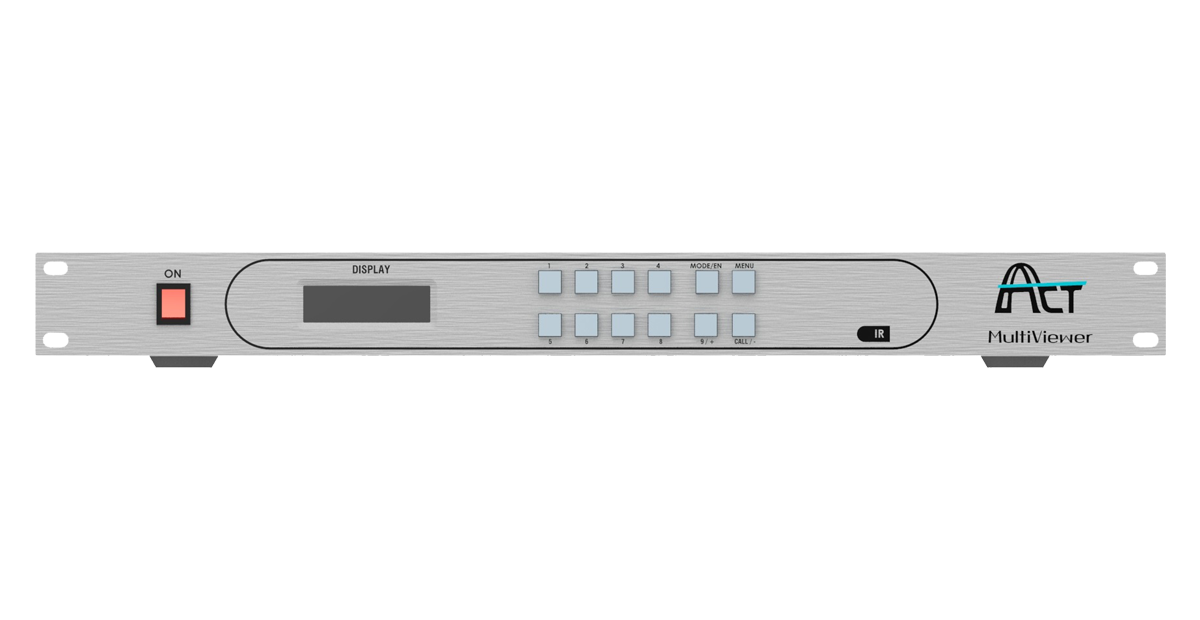

PAV-V9301
- 9 HDMI Inputs to HDMI Output
- Control through RS-232 or RJ45
- Customized Display Mode. E.g., Picture-in-Picture, Independent Display, Windows Overlap or Stacking, Roaming, Free Size, Free Positioning
- Free Setting for 1, 2, 3, 4, 6, 8, 9 Display Segmentation
- Seamless Switch
- Independent Display Button Switch
- Maximum 16 Modes Save in Devices
- Support Max. 1920x1080 Input, Compatible With 800x600, 1024x768, 1280x1024, 480i/p, 576i/p, 720p, 1080i/p
- Support Max. 3840x2160 Output. Customized Output: 1920x1080, 1680x150, 1600x1200, 1400x900, 1366x768, 1280x1024, 1280x720, 1024x768
- Support Transparency Adjustment
- Support Customized Mode Looping
9 Inputs to 1 Output Multi-Viewer
Interface
Input — HDMI x9 (HDMI 1.4a)
Input Resolution — Support 1920x1080, Compatible With 800x600, 1024x768, 1280x1024, 720p, 1080p
Input Audio Signal — HDMI 2CH Audio PCM 24 bit, 32 ~ 192KHz
Output — HDMI x1
Output Resolution — Support 3840x2160, Compatible With 3840x2160p30, 1920x1080, 1680x1050, 1600x1200, 1400x900, 1366x768, 1280x1024, 1280x720, 1024x768
Output Audio Signal — PCM 16 bit, 48KHz
TMDS Frequency
Max. 340MHz
Ethernet
10/100 Mbps
Buttons
Panel Button x9
Setting Button x3
Remote Control
HDMI Input Button x9
Setting Button — x3
HDMI Status — x9
LED Display Panel — x1
Power
100V-240V
Storage Temperature
-40 to 70℃
Working Temperature
-15 to 55℃
Humidity
5 to 90% (Non-Condensing)
Weight
3.1 kg
Dimension
445 x 360 x 45 mm
482 x 360 x 45 mm (With Mounting)
PAV-V9301
9 Inputs to 1 Output Multi-Viewer
