PAV-V5601
- One Display Screen Can Simultaneously View Four Signals, Greatly Improving Efficiency
- Point-To-Point Display, No Loss of Frame Rate, Supports 4K60 UHD Input and Output
- Supports Control Methods Such As Buttons/IR/RS232
- Supports Seamless and Rapid Switching between Five Signals
- Supports Direct Input of Multiple Signals into Software Conferencing and Live Broadcasting Software
- The Four Screens Can Be Defined to Display in a Customized Way
5 Inputs to 1 Output Multi-Viewer
Interface
Input — HDMI x4 (HDMI 2.0), Type-C x1
Input Resolution — Support 640x480~3840x2160 p60
Input Audio Signal — RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Output — HDMI x1, UVC x1
Output Resolution — Support 1920x1080 p50~3840x2160 p60
Output Audio Signal — RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Audio Output Port — Support Analog Audio
Other I/O — RS-232, Analog Audio x1

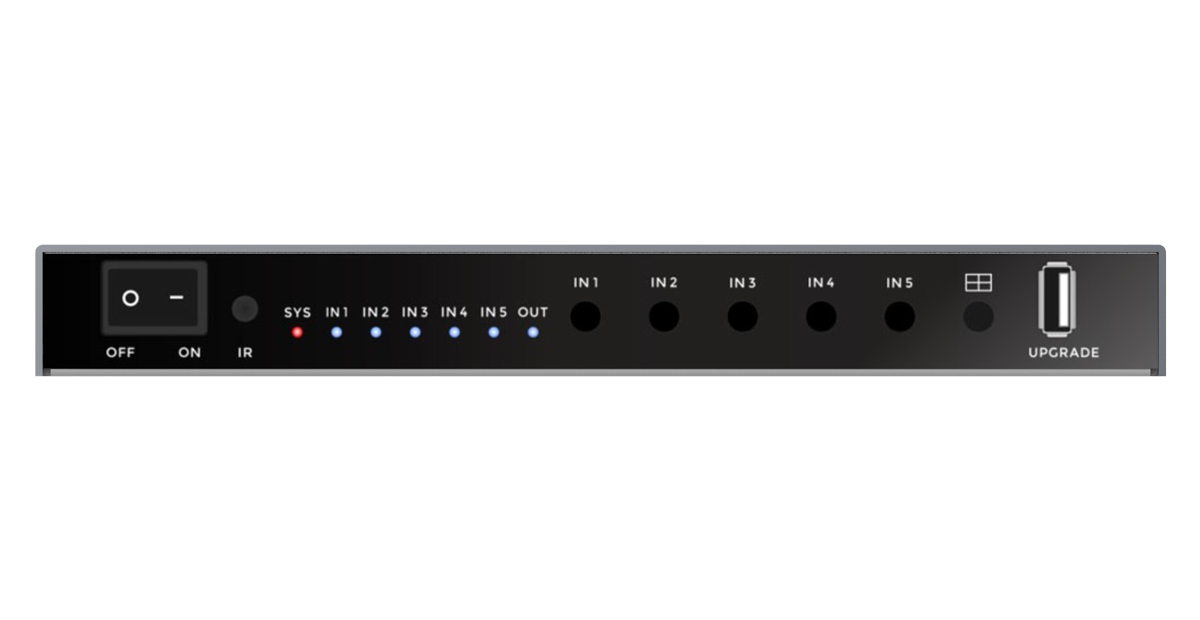

Buttons
Display Switch Button x6
Power Button x1
Remote Control
Support IR
Support RS232 Serial Port
Power Input
12V DC / 1.5A
Storage Temperature
-20 To 70℃
Working Temperature
0 To 45℃
Humidity
10 To 90% (Non-Condensing)
Weight
0.7 kg
Dimension
240 x 124 x 28 mm
PAV-V5601
5 Inputs to 1 Output Multi-Viewer
