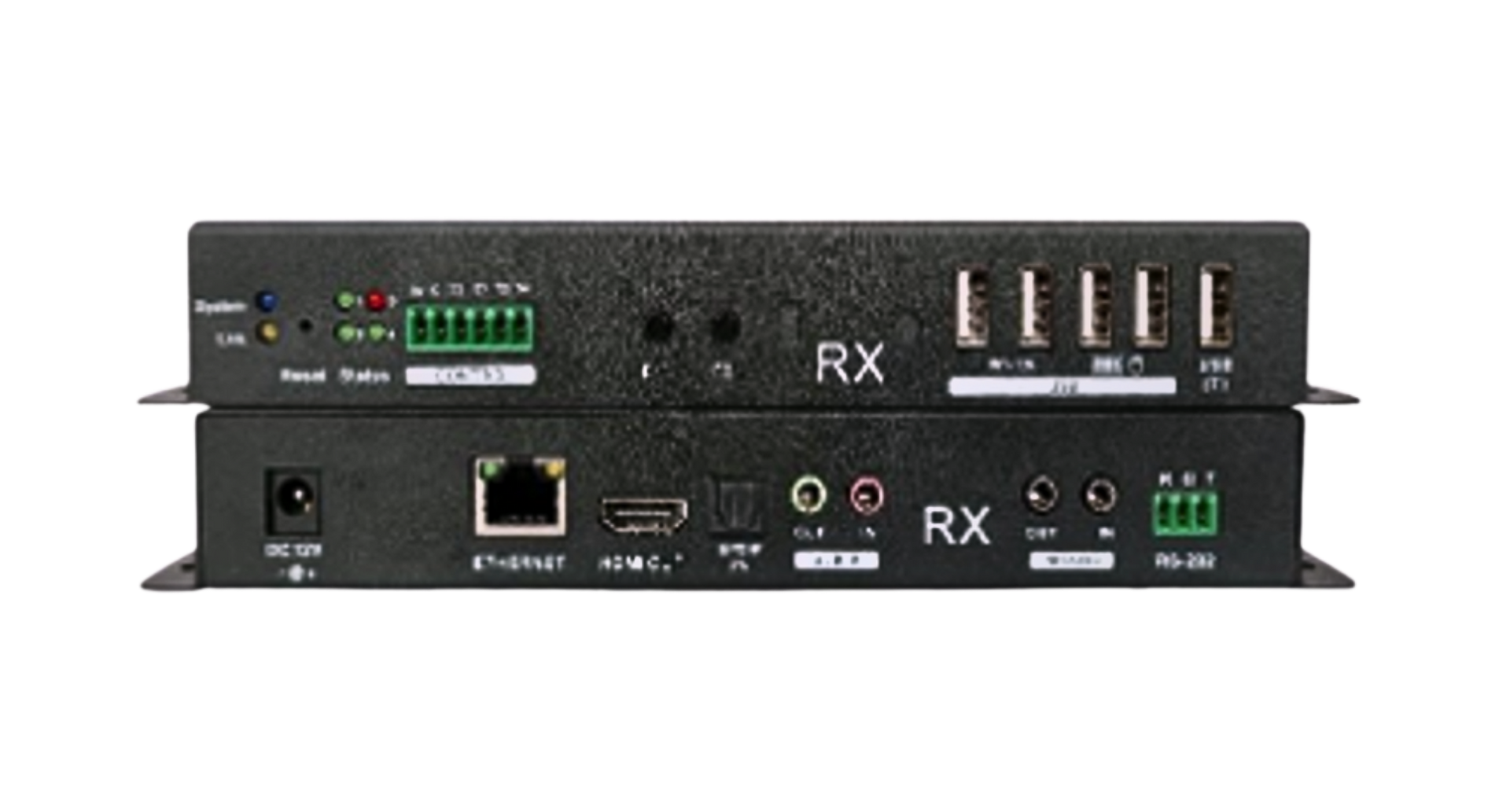

PAV-R4604
4K60 AV/KVM over Gigabit Ethernet Decoder
- Achieves as Low as 8ms Latency at 4K60
- Provides Nearly Uncompressed Video Quality
- Supports Resolution Scaling, including 4K60 to 1080P and 1080P to 4K60
- Enables MxN Video Wall Configurations with Rotation Options of 180°/270°
- Offers Seamless Fast Switching with No Tearing, Black Screens, or Frame Lock Issues
- Allows KVM Control for Remote PCs with Hotkeys and OSD Menu Switching
- Features a Customizable On-Screen Display (OSD) on Receivers
- Includes an API for Integration with 3rd-Party Controllers via HTTP, UDP, TCP, or RS232
- Provides Optional Support for AES67 and Licensed Dante Protocol for Audio Networking
- Offers an Add-On PoE (Power Over Ethernet) Module
Video Input
1x HDMI Type A Output and ARC-In
Analog Audio
1x 3.5mm Mono Mic in
1x 3.5mm Stereo Line out
S/PDIF
Toslink (ARC-IN)
USB
3x USB 2.0 Type A
2x USB 1.1 Type A
IR
2x 3.5mm Phone Jack
(Receiver and Emit)
RS-232
1x 3P-Phoneix Connector
Ethernet
1x RJ45
1x SFP Cage
Control I/O
4x Customize GPIO
1x 5V200mA Output
Button
2x Tact Switch
LED
6x Status Indicator
Support
HDMI Compliance — HDMI 2.0a (DVI 1.0)
HDCP — 2.2
Max Resolution — 4096 x 2160@60 (HDMI) 4:4:4
Video Scaler — Yes
Audio Format — HDMI Audio: 7.1 LPCM 192kHz, Dolby True HD, DTS-HD Master Audio, ATMOS, DTS:X, SPDIF
Audio Net — 2CH for Optional DANTE AV-A (Need Licensee) or AES67
ARC — HDMI or S/PDIF
IR — 20-60KHz Half-Duplex, Support Proton Code
USB — KM over IP, USB over IP, USB Policy Supported, HW_USB over IP
Control I/O — TTL 3V
RS-232 — 300-11520bps,
Serial over IP, TCP/UDP Server or Command Mode
KVM — OSD Management, Hotkey to Specified Function, Mouse Roaming
Video Wall — No Limit Display, Support Rotation 180 and 270 Degree
Misc
Power Supply — DC12V 1A
POE — Optional POE Add-On Module
Form Factor — 220 x 102 x 30mm / 550g
Operating Temperature
-20 to 65℃
Storage Temperature
-40 to 85℃
Humidity
Up to 90%
PAV-R4604
4K60 over IP Receiver (Decoder)
PD3012
12W PD Add-On Module
D8-AVA2
DANTA AV-A Embedded
D8-AES67
AES67 Embedded
