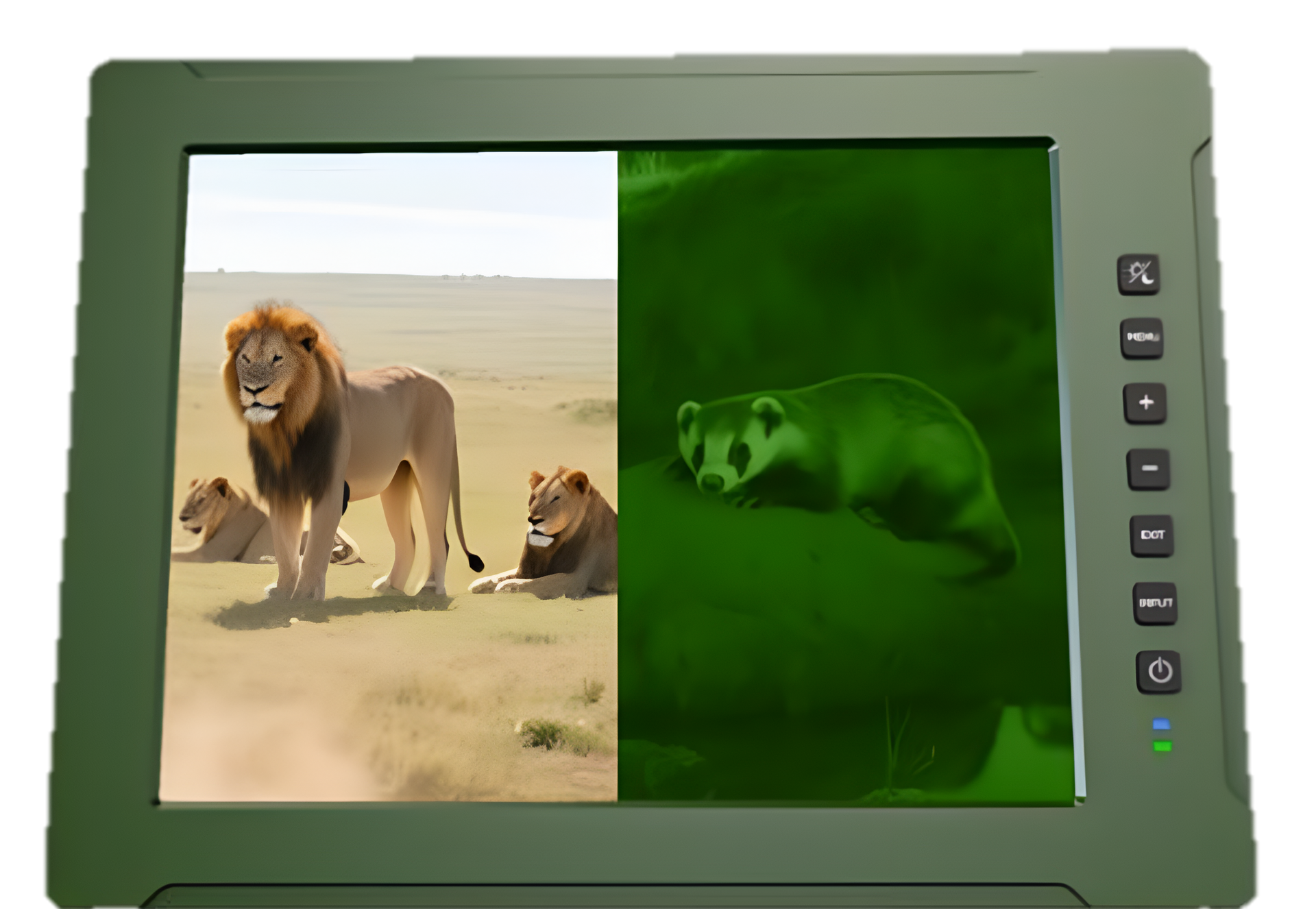

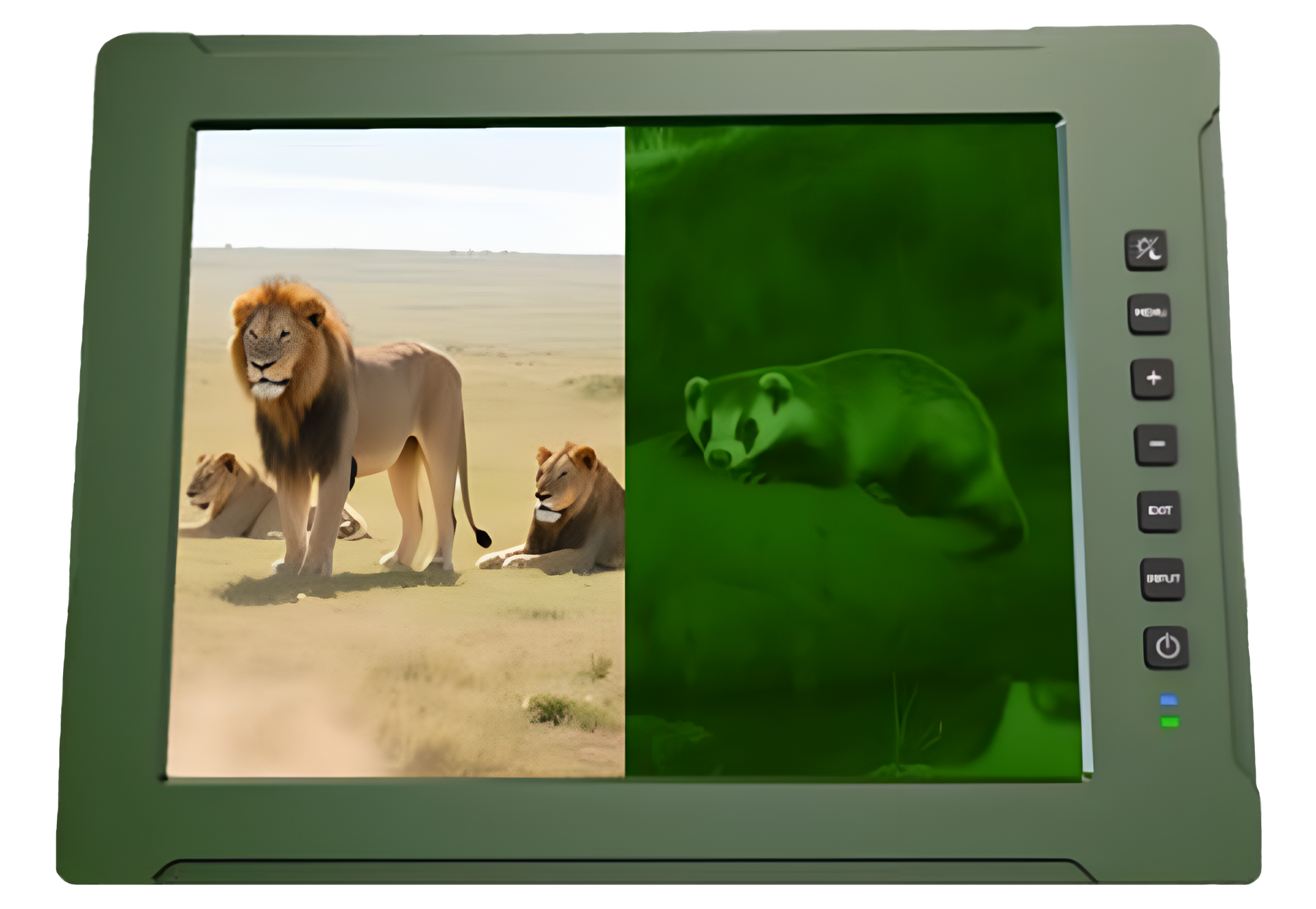

MIC-D1014
- 10.4 inch LCD Size
- Day/Night Dual-mode Display Delivers Brightness from 0.03 nits to 1000 nits
- Operates Reliably in All Weather Conditions from -30°C to 70°C
- High-Sensitivity Touchscreen Works with Wet Hands or Gloves
- LED Panel Offers a Lifetime of 50,000 Hours
- Designed with EMC Protection for Electromagnetic Compatibility
- Optical Bonding Maximizes Display Transparency and Reduces Reflections
- Meets IP65 Rating for Dust and Water Resistance
10.4 inch NVIS Mission Critical Monitor
Display
Touch Screen — 5-Wire Resistive Touch with AG Toughened Glass and Optical Bonding Capacitive Touch (Optional)
Panel — 10.4 inch LCD
Resolution — 1024 x 768
Brightness —
- Day mode : 1000nits
- NVIS mode : Dimmable under 0.03 nit
Aspect Ratio — 4:3
Contrast — 1000:1
Viewing Angle — 170° / 170°(H/V)
LED Panel Life Time — 50,000 Hours
Signal Input
HDMI — 1
VGA+Audio — 1
USB — 1 x USB-A (for Touch and Upgrade)
Supported Formats
VGA —
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
HDMI —
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
Audio Input
HDMI — 2ch 24bits
Bulit-in Speakers — 1
Power
Input Voltage — DC 12-36V
Power Consumption —
≤13W (15V, Normal Mode)
≤69W (15V, Heating Mode)
Other
Form Factor —276mm x 208mm x 52.5mm
Weight— 2kg (with Gimbal Bracket)
Operating Temp.
-30°C to +70°C
Storage Temp.
-30°C to +80°C
Shock
Design to meet MIL-STD-810F
Vibration
Design to meet MIL-STD-810F
EMI/EMC
Design to meet MIL-STD461E/F
Protection Rating
IP65, NEMA 4X
MIC-D1014
10.4 inch NVIS Mission Critical Monitor
MIC-D1014-GB
Gimbal Bracket (Optional)
MIC-D1014-VB
75mm VESA Bracket Mount (Optional)
MIC-D1014-RM
1.5 inch RAM Mount (Optional)
