SLM-MR230M-E
- 23" TFT LCD
- Operating Temperature: -20°C to +55°C
- Storage Temperature: -20°C to +60°C
- Optical Bonding: EMI Mesh with Optical Bonding
- LED Life Time: 50,000 Hours
- EMI/EMC Is Designed to Meet MIL-STD-461E/F
- Shock Is Designed to Meet MIL-STD-810D
- Vibration Is Designed to Meet MIL-STD-810E

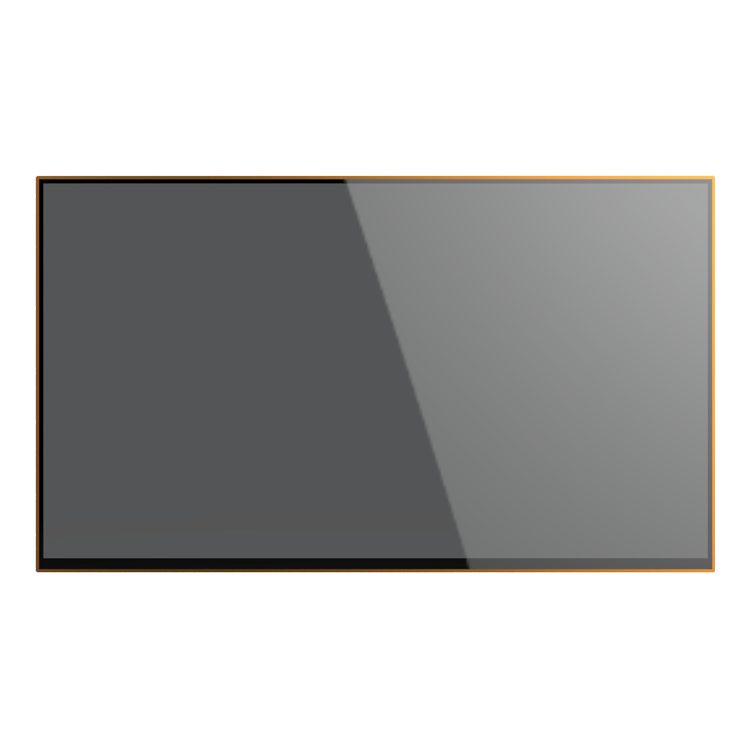

23" Military LCD Module
LCD Module
LCD Panel Size —23" TFT LCD
Backlight — LED
Resolution — 1920 x 1080
View Angle — ±89° (H), ±89° (V)
Luminance — 700 cd/m² (After Bonding)
Contrast Ratio — 1000:1
Aspect Ratio — 16:9
Response Time — 14 ms
No. of Colors — 16.7M (True 8 Bit)
Active Area — 509.184(H) x 286.416(V) mm
Pixel Pitch — 0.2652 (Per One Triad) x 0.2652 mm
LED Life Time — 50,000 Hrs
Touch Screen
Touch Type — 5-Wire Resistive Touch
Viewable Area — 513.80 x 219.02 mm
Active Area — 409.8 x230.240 mm
Touch Interface — USB
Touch Glass — AG/AR Strengthened Glass
Optical Bonding — EMI Mesh With Optical Bonding
Touch Drivers — Support Windows, Linux, Mac, etc.
Operation Temperature
-20°C to +55°C (Note)
Storage Temperature
-20°C to +60°C (Note)
Humidity
Ta=40°C, 90%RH, Non-Condensing (Note)
EMI/EMC
The LCD Kit Is Designed to Meet MIL-STD-461E/F for a Whole Display Unit (Note)
Shock
The LCD Kit Is Designed to Meet MIL-STD-810D for a Whole Display Unit (Note)
Vibration
The LCD Kit Is Designed to Meet MIL-STD-810E for a Whole Display Unit (Note)
Altitude Above Sea Level
0 ～ 9144 m (30,000 Feet) (Note)
Note: To Work With the Mentioned Certifications, This LCD Kit Offers the Potential to Meet Such Certifications. However, It Still Depends on the Final Design of the Complete Unit to Pass the Testing and Validation Required for Certifications.
