LCD Panel

LCD Size — 21.5" TFT LCD

Backlight — LED

Resolution — 1920 x 1080

No. of Colours — 16.7M

View Angle — ± 89° (H), ±89° (V)

Luminance — 300 nits (After Bonding)

Aspect Ratio — 16:9

Contrast Ratio — 1000:1

Pixel Pitch — 0.24795 x 0.24795mm

LCD Panel Life time — 50,000 hrs

Interface — LVDS

Response Time — 15ms (Tr+Tf)

Active Area — 476.064(W) x 267.786(H) mm

Touch Screen

EMI Mesh — Yes

Optical Bonding — Yes

Cover Glass — Strengthen Glass

Glass Surface Hardness — >5H

Interface

Power Input

• 1x 18-32VDC Input / Connector: D38999/20WA98PN / Cap: D38999/33W9N

Input Sources

• 2x HDMI
• 1x DVI
• 1x VGA

OSD Keypad — Membrane Type

OSD Keys — Multi Language OSD Menu;

Buttons: Power ON/OFF, Menu, Exit, Up, Down

Machanical

Material — Aluminium Alloy

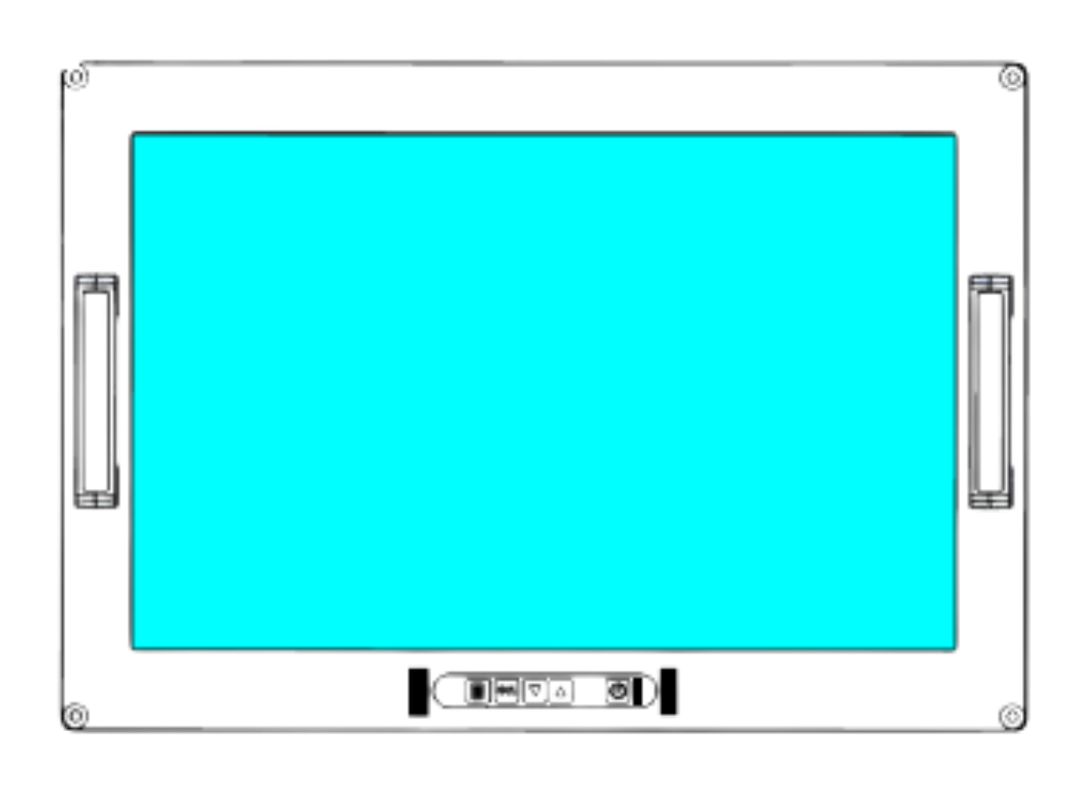

Design — Open Frame with Front Handle

Form Factor — Approx. 566 x 362 x 50mm
