MIC-L0805
- Intel i5 – 1235U (12MB Cache, up to 4.4Ghz, 10 Cores, 12 Threads TDP 15W)
- 16GB Memory
- 128GB Storage
- 8-inch FHD (1200*1920)
- 43.32Wh Removable Battery for Longer Duration
- Speedy Wi-Fi 6E, Enabling Faster Speeds and Lower Latency
- Versatile I/O Optional Modules for All Kinds of Applications
- Windows 11

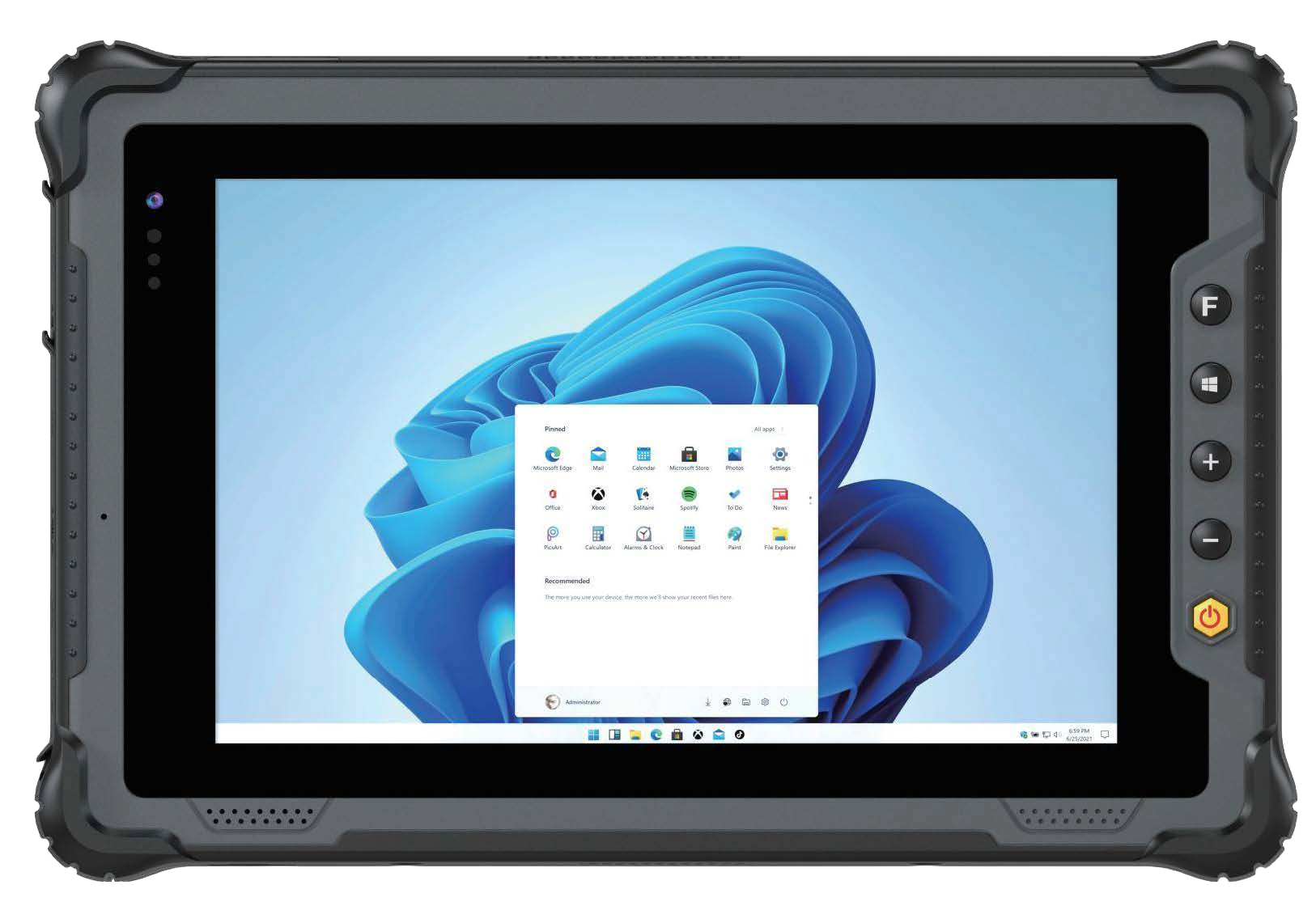

8” Windows Rugged Tablet
Processor
Intel i5 – 1235U (12MB Cache up to 4.4GHz, 10 Cores, 12 Threads , TDP 15W)
Optional Intel i7 – 1255U (12MB Cache up to 4.7GHz, 10 Cores, 12 Threads, TDP 15W)
Graphics
Intel® Iris® Xe Graphics Eligible
Memory
16GB LPDDR4 On Board
Storage
128GB SSD On Board
Optional 256GB SSD
Optional 512GB SSD
Display
8", FHD (1200x1920), 550 nits
Optional 8", HD (800x1280), 1000 nits
Touch
10-Point Capacitive Touchscreen, Supports an Active Pen
Optional 10-Point Capacitive Touchscreen, Supports Glove & Water Touch
Mode
I/O Interface
Nano SIM + Micro SD Card
USB 3.2 (Type-A) x1
USB 3.2 (Type-C) x1
10/100/1000M Ethernet (RJ45) x1
4.0 mm DC In Jack x1
12-Pin Pogo Pin x1 (Charge & USB)
Network & Connectivity
Intel® Wi-Fi 6E (802.11 ax)
Bluetooth® 5.3
4G LTE LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 GSM:
GPS/ GLONASS Modules
Audio
Integrated 1W Speaker *1
Integrated Microphone
Class K
Camera
FF 5.0 MP Front Camera
AF 13.0 MP Rear Camera and Flash Light
Security
Integrated TPM2.0
Fingerprint Scanner
Optional HF-RFID (NFC) Reader
Battery & Charging
Li-ion Battery, 7.6V, 5700mAh, 6h48min
RTC 3V/1mAh On Board
AC Adapter: 100-240V, 50Hz-60Hz, 48W (12V/4A)
Dimension
236.8 mm(L) * 155.8mm (W)* 21.6mm (H)
Weight
~850g
Durability
Design to Meet MIL-STD 810H Certified
4ft, 26 Drops (Each Side, Edge, & Corner)
Design to Meet IP67 Certified
±8kV Contact Discharge, ±10kV Air Discharge
Operation Temperature
-20°C to +60°C
Storage Temperature
-30°C to +70°C
Humidity
95% , Non-Condensing
Certifications
CE/FCC/RoHS, Applied after Sample Confirmation
MIC-L0805
8” Windows Rugged Tablet
