LCD Size
24-inch Full HD TFT LCD
Backlight
50,000 Hours Long-Life WLED
Resolution
1920 x 1200
Interface
30-Pin, 2-Channel LVDS
Luminance
300 nits
No. of Color
16.7M
Surface Treatment
AGAF Type, 6H Hard Coating
Active Area
527.04 x 296.46 mm
Pixel Pitch
0.2745 (H) x 0.2745(V)
LED Life Time
50,000 Hrs
Viewable Area
311.1 x 235.1 mm
Active Area
307.1 x 231.1 mm
Interface
DVI, VGA, RS232
IP
IP65 Front Bezel
Power Connector
9W4 subD
Power Consumption
100W (Max.)
Control
Up / Down / Menu/ End / Power
OSD
On Screen Display
Weight
8.5 KG
Operating Temp.
-20°C to +60°C
Storage Temp.
-30°C to +80°C
Humidity
50°C, 80% RH for 240 Hours
Shock
Design to Meet MIL-STD-810G
Vibration
Design to Meet MIL-STD-810G
EMI/EMC
Design to Meet MIL-STD461E/F
MIC-D2414

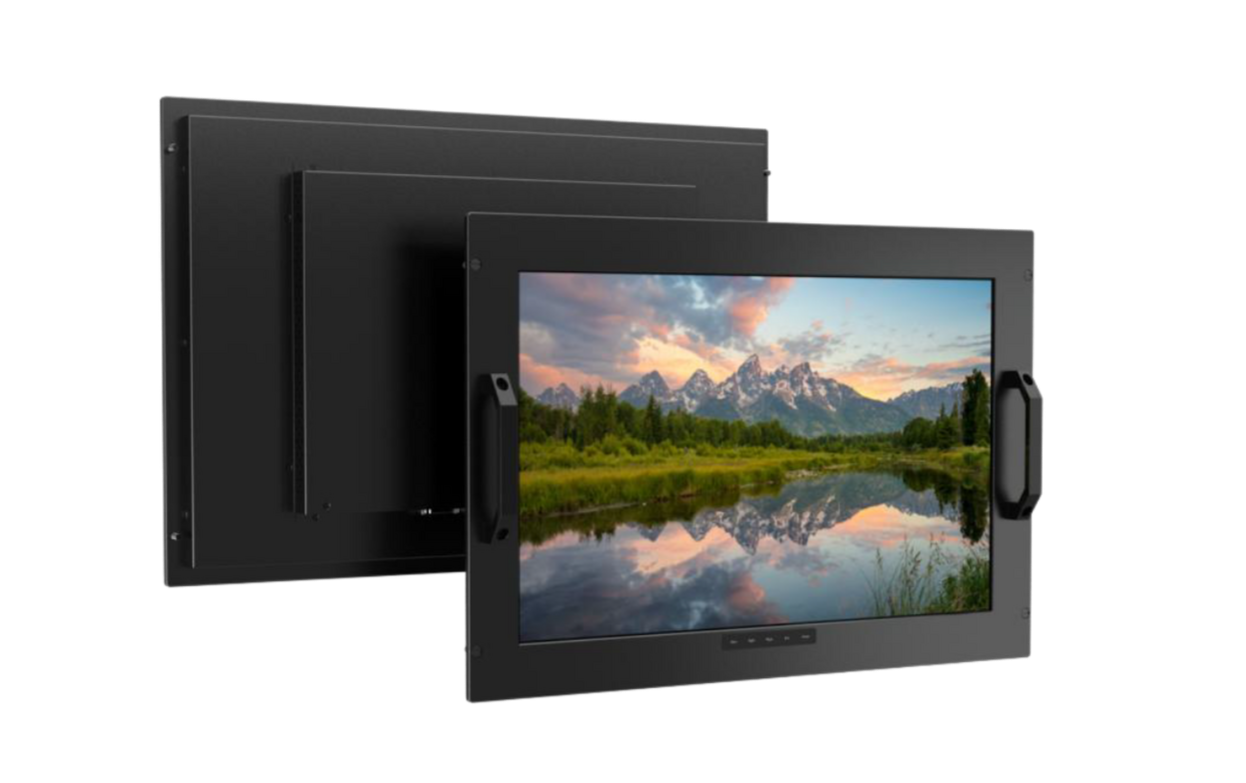

24” Full HD TFT LCD Display
