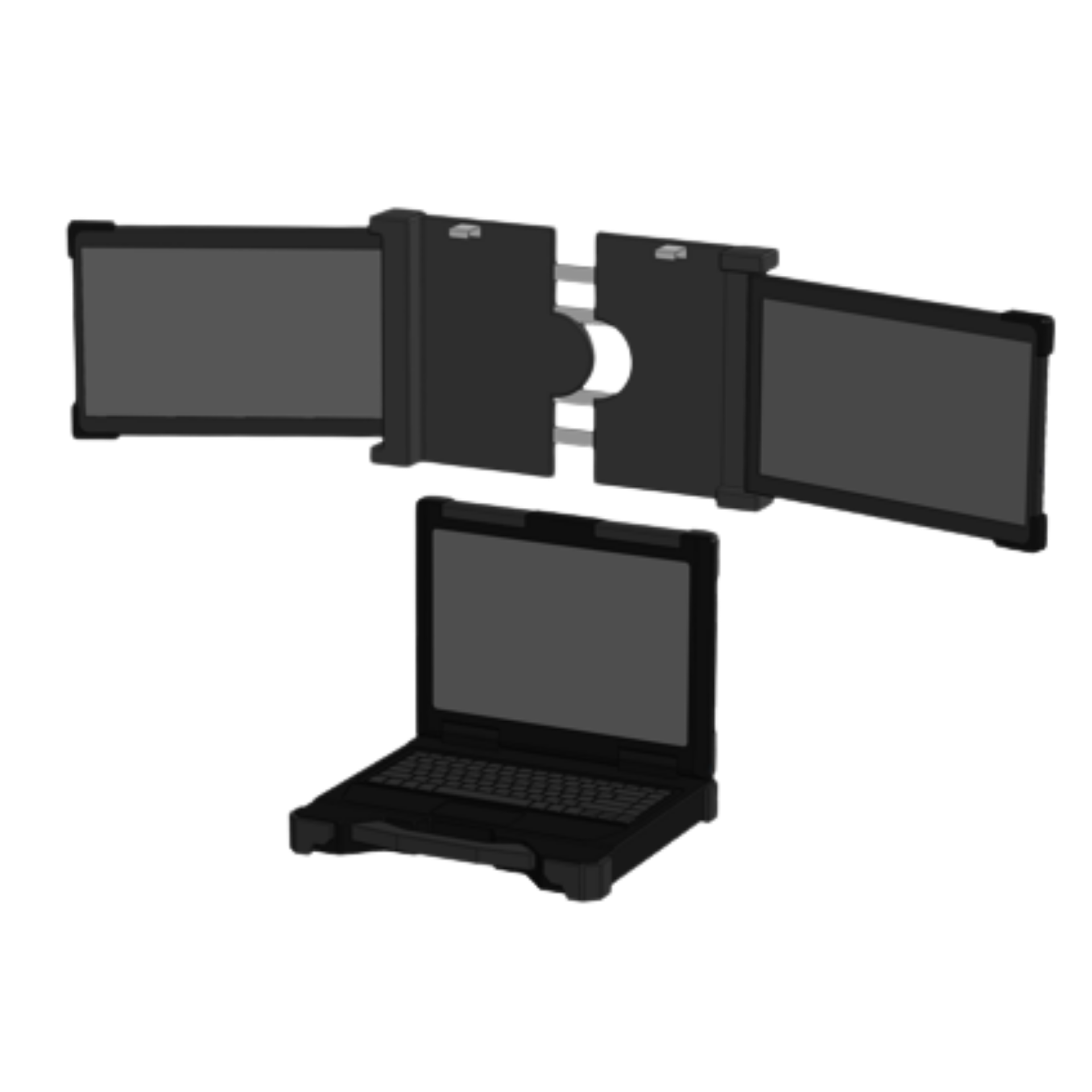

MIC-D1305
13.3” Dual-Display Portable Side-Mount Kit

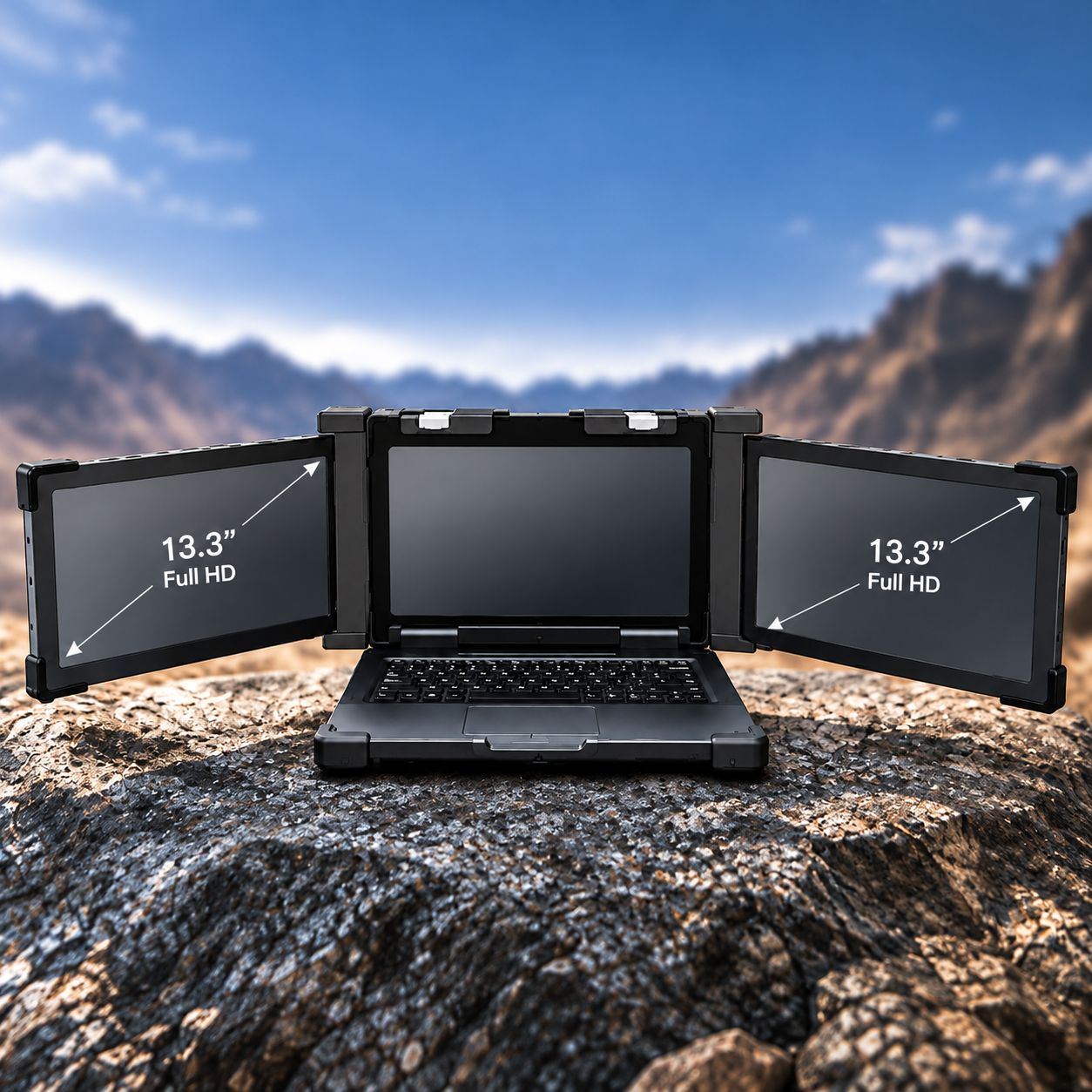

- Dual 13.3” Full HD Rugged Displays
- 300 nits High Brightness for Sunlight Readable
- Side-mount Configuration and Simple Installation

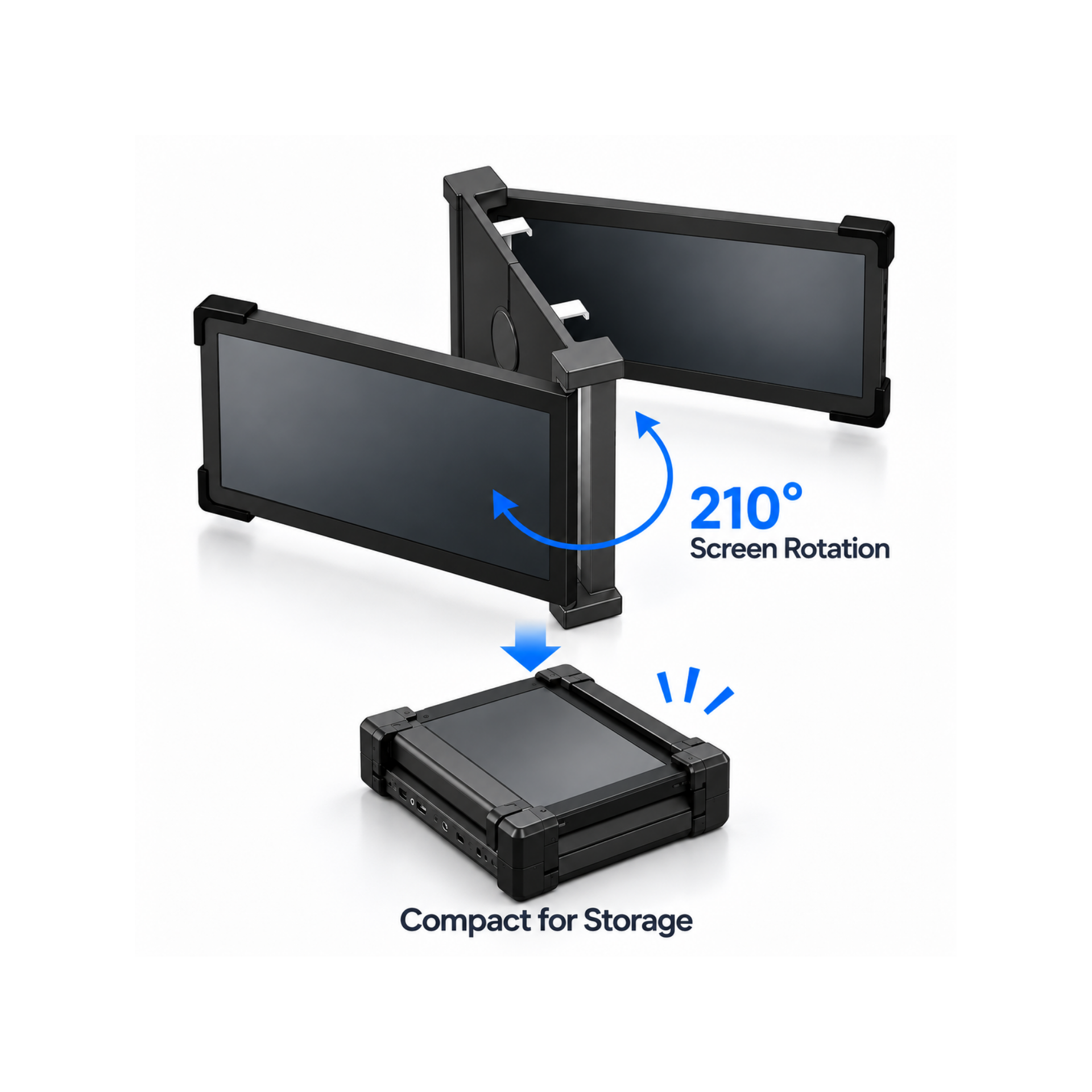

- Flexible Rotation Screen

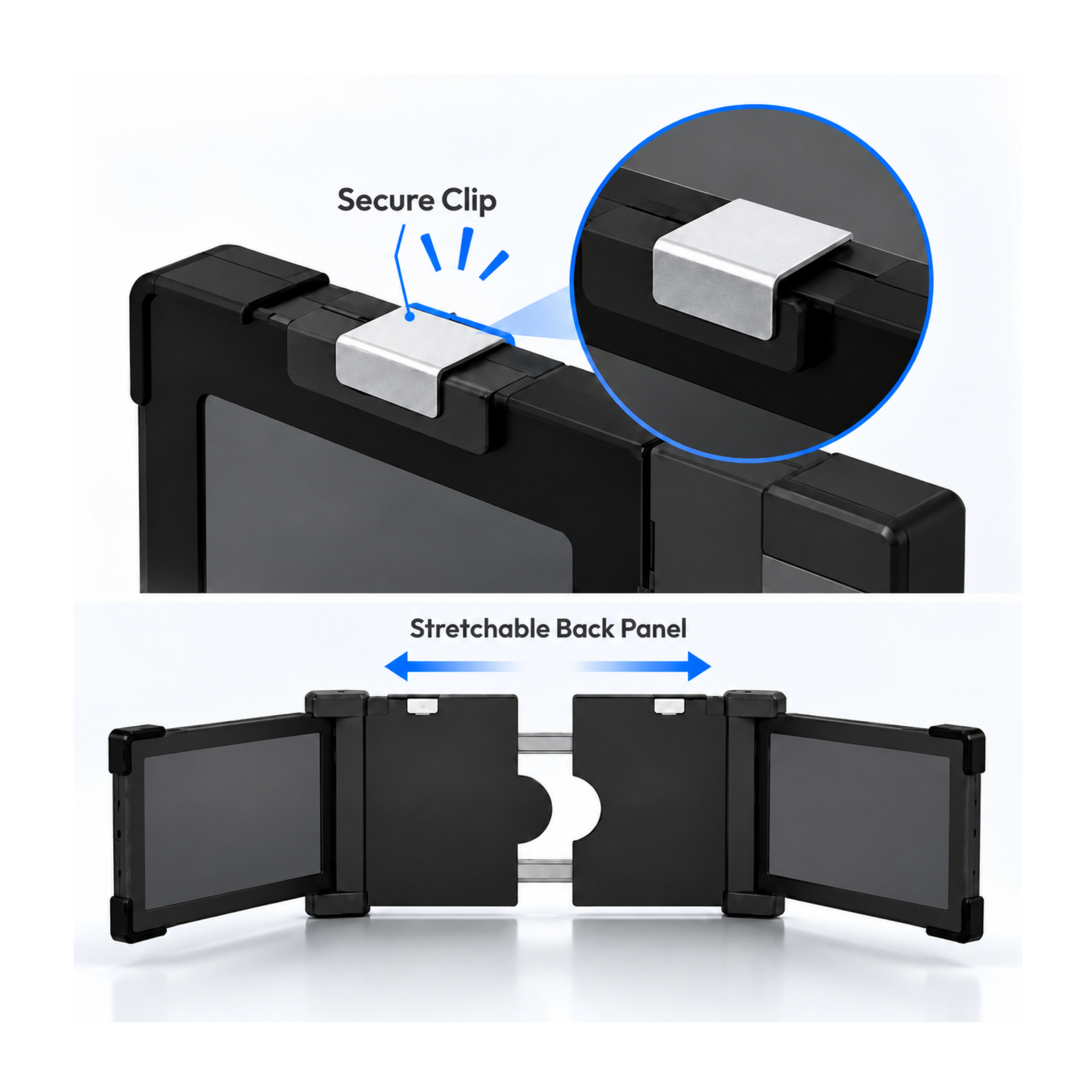

- Stretchable Back Panel
- IP65 Front Panel
- EMI Mesh, Optical Bonding
- Design to meet MIL-STD-810
- 9-36V DC Input
LCD Size
2x 13.3”
Backlight
LED
Resolution
1920 x 1080 Full HD
Pixel Pitch
0.153 (H) mm x 0.153 (V) mm
View Angle
178°/178° (H/V)
Brightness
300 nits (after bonding)
Contrast Ratio
1000:1
Aspect Ratio
16:9
Pixel Pitch
0.2745 (H) x 0.2745(V)
LED Lifetime
50,000 Hrs
Optical Bonding
Full optical bonding with OCR
EMI Mesh
Integrated EMI shielding mesh
Cover Glass
1x USB-C 3.2 supports video input and power delivery
1x HDMI 2.0 Input
1x DC IN
Rotation
210° for Dual Display
Power
9-36VDC, <25W (Both Displays)
Dimension (Fold)
Approx. 354 x 236.07 x 54 mm
Dimension (Open)
Approx. 950.08 x 236.07 x 54 mm
Weight (Dual Display Kit)
Approx. 3.5 kg
Mounting
8.5 KG
Operating Temp.
-20°C to +60°C
Storage Temp.
-30°C to +70°C
Humidity
Ta≦40°C, 90%RH, non-condensing
IP Rating
IP65 Front Panel
Shock & Vibration
Design to Meet MIL-STD461E/F
MIC-D1305
13.3” Dual-Display Portable Side-Mount Kit
