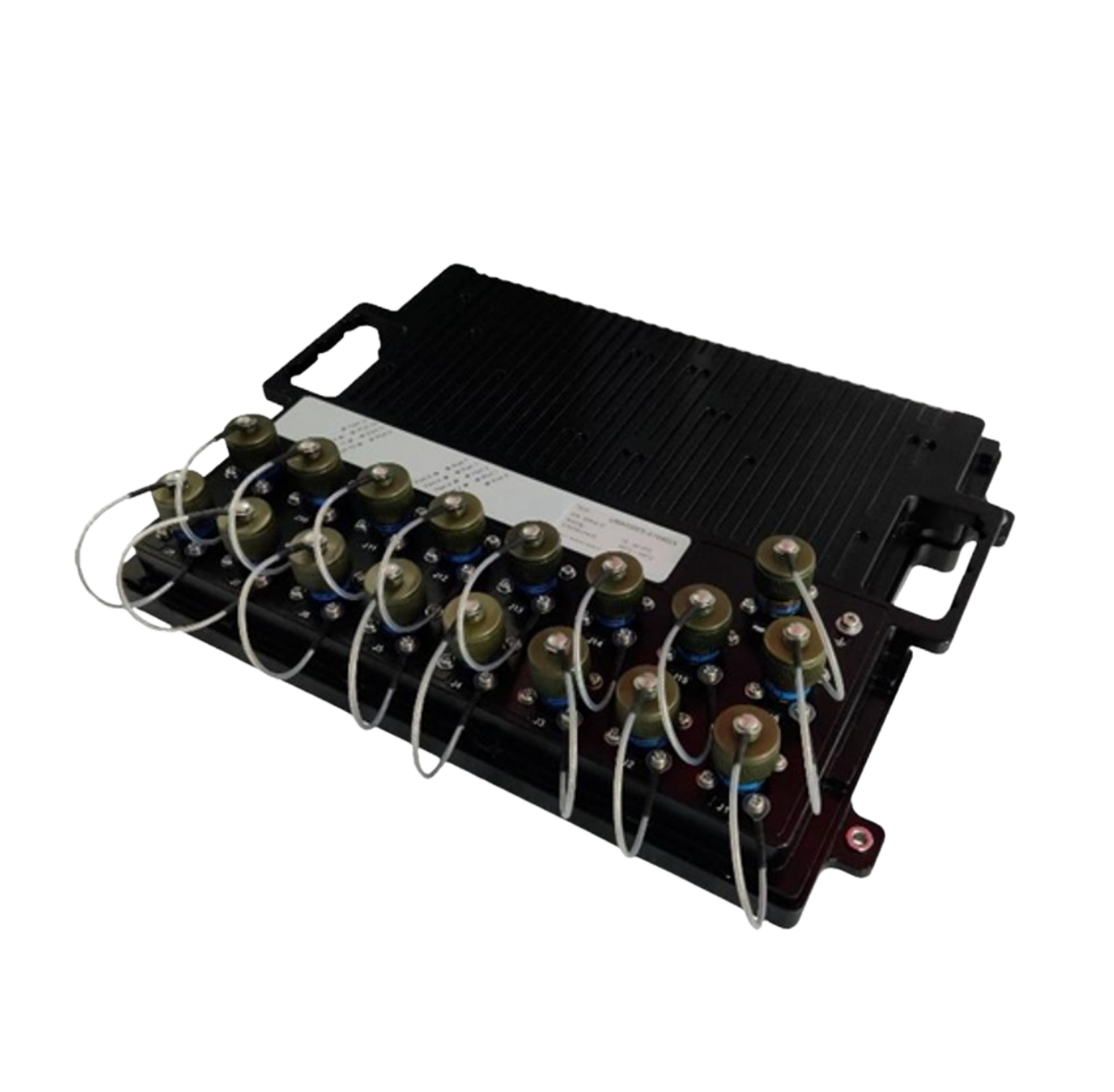

MIC-W1601-TI
- High End D38999 Connectors
- Rugged MIL Housing
- Fully Manageable over Web Interface / Telnet
- Fanless Operation
- Low Power Consumption
- Supports IEEE802.1Q VLAN, Rapid Spanning Tree Ieee802.1D 2004
- Redundant Ethernet Connections
- Long-Term Availability
Rugged Managed 16-Port Gb Switch
Switch Lookup Engine
- Support up to 1024 MAC Entries with Automatic Learning and Aging
- Support Auto Crossover (Auto MDI/MDIX) and Polarity Correction
Jumbo Frame Support
Up to 10k Byte
Status LED
2 LEDs for Each Copper Port (Link/Activity And Speed Indicators)
Copper Ports
16 x 1Gbit LAN Ports
Over MIL Connectors
16 x LAN Over TVP00RW-9-9S or D38999/20WB35N
I/O Interfaces
1 x Power Over D38999/20W A98PA
Management Software (Layer 2 Management)
- Port-Based VLAN
- Quality of Service
- IEEE 802.1D RSTP Support
- SNMP V1, V2c, V3 Support
- Telnet
- IGMPv3 Snooping
- IEEE 802.1Q VLAN
- IEEE 802.1X MAC Address Checking
- Port Monitoring
- Firmware Update via HTTP or TFTP
- TLS (HTTPS)
Power
24V DC Input, 7W Power Consumption (Typ.)
Form Factor
350 x 270 x 50 mm (W x H x D)
Weight
<8 Kg
Material
Aluminum
Operation Temperature
-20°C to +60°C
(Optional -40°C to +85°C)
Storage Temperature
-40°C to +85°C
Humidity
5 to 95%, Non-Condensing
EMI/EMC
MIL-STD-461E
- CE102, CS101, CS114, CS116, RE102, RS103, CS115 & HESD
Vibration
5-20Hz, 6dB/octave, 20-50Hz: 0.02g2/Hz, Then Rolling up to 0.001 g2/Hz at 50 to 500 Hz
MIC-W1601-T1
Rugged Managed 16-Port Gb Switch
