- Fusion of Night Vision Sensor, Thermal Sensor, CMOS or Laser Rangefinder
- In Fusion Mode, Can Be 0 Millilux Moonless Starlight
- AI Low Light & Defog Enhancement
- Strong Flashlight Suppression
- Thermal: <40mk, QVGA or VGA High Resolution
- 1km < Laser Rangefinder
- Supports Wireless Transmission
- MIL-STD-810G

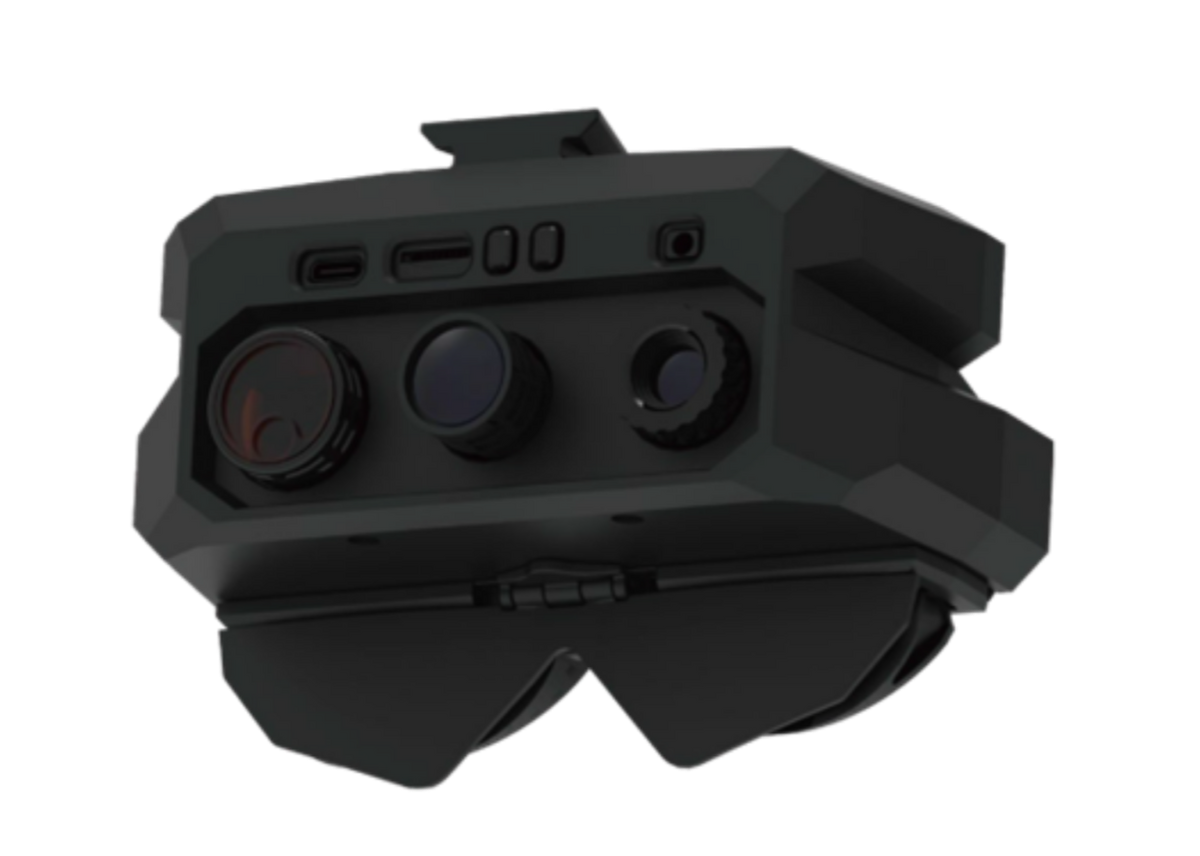

MIC-OTH01
IVAS (Integrated Visual Augmentation System)
Sensor
Thermal / Night Vision / CMOS / Laser
Lens
Night Vision : 6mm / F1.0 Lens
Thermal : 13.5mm Focal Length Len
Resolution
640 x 512
Spectral Range
8 to 14μm
NETD
< 40mK
Frame Rate
40fps / 100fps / 30fps
Signal-to-Noise Ratio
56dB
Shutter Design
Software-Controlled, Near Shutterless
Digital Zoom
1x / 2x / 4x / 8x
Noise Reduction
Support
Color Palettes
White Hot, Black Hot, Red Hot, Rainbow, Pseudo Night Vision
Network Interface
Wireless / BT / 2.4G / 5.8G
Battery
Bulit-In 2 x 18650 Li-Ion
Power Input
Type-C, 5V/3A
Power Consumption
6W
Ingress Protection
IP54
Form Factor
150 x 72.8 x 108.62 mm
Weight
250g
Operating Temperature
-10℃ to +65℃
Storage Temperature
-20℃ to +80℃
Humidity
5% - 95% RH (Non-Condensing)
Shock
Design to Meet MIL-STD-810G
Vibration
Design to Meet MIL-STD-810G
EMI/EMC
Design to Meet MIL-STD461E/F
MIC-OTH01
IVAS (Integrated Visual Augmentation System)
