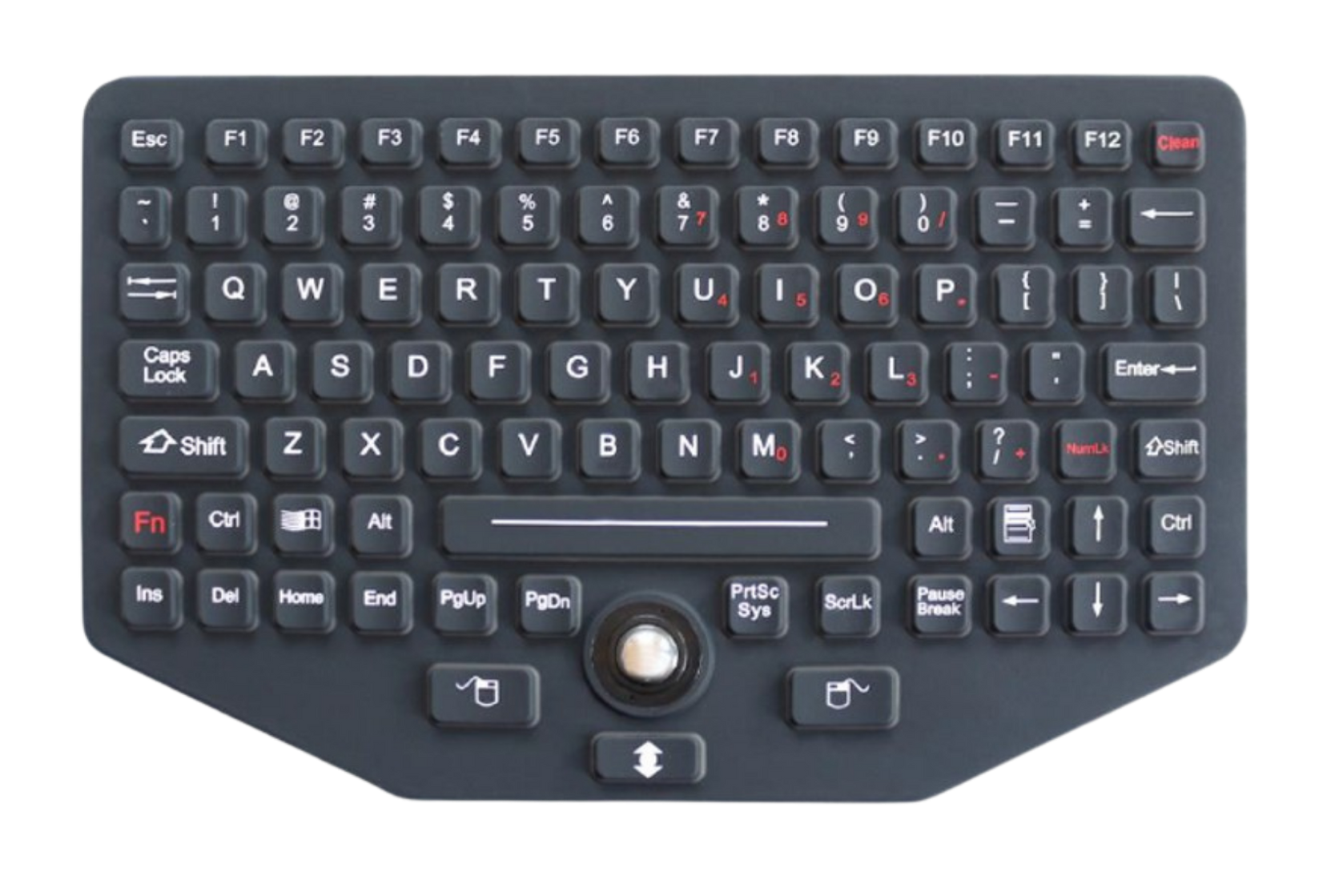

89 Keys Silicone Rugged Keyboard with Sealed Optical Trackball
- Military-Grade Rugged and Sealed Keyboard with IP65 Protection
- Integrated 800DPI Sealed Optical Trackball
- Supports 12 FN Keys (F1~F12) and Compact 89-Key Layout
- Silicone Keys with 1.5mm Travel for Precise Tactile Feedback
- Antimicrobial and Wear-Resistant Key Surface
- FN+CLEAN Key Function for Easy Maintenance
- Compatible with Multiple Operating Systems and Customizable Interfaces
- Compliance with MIL-STD-810F, MIL-STD-461G (Optional)
- Designed for Embedded Applications in Military and Industrial Environments
MIC-K8904
Number of Keys
89 Keys + 3 Mouse Buttons
Key Technology
Silicone with Carbon Contact Switches
Key Travel
1.50 ± 0.10 mm
Key Lifespan
> 5 Million Cycles
Key Force
1.5N ± 0.2N
Form Factor
283.0 mm x 177.0 mm
Operating Voltage
DC +5V ± 5%
Operating Current
≈ 50mA
EMC Standards
EN 55032:2015, EN 55035:2017
Interface
USB
(Others Based on Customization)
OS Compatibility
Windows, Linux, Unix, Mac OSX, VxWorks, Android (uCOS Pending)
Operating Temperature
-20°C to +60°C
Storage Temperature
-30°C to +70°C
Relative Humidity
100%
Shock & Vibration
MIL-STD-810G
Protection Rating
IP65
Compliance
MIL-STD-810F, MIL-STD-461G (Optional)
MIC-K8904
89 Keys Silicone Rugged Keyboard with Sealed Optical Trackball
