Video

Sensor — 2.0M Pixel 1/2.8" High-Performance DSP CMOS Sensor

Output Resolution —  H.265, 1920(H)×1080(V)

D/N Mod —  Color, Color Video Anytime in Low Light Conditions

Illumination — Color:0.001 Lux @(F1.5,AGC ON); Black & White:0.0005Lux @(F1.5,AGC ON)

SNR — ≥50dB(AGC OFF)

WDR — 120dB

Scan Method — Progressive Scanning

Electronic Shutter — 1 / 25 Seconds to 1 / 100000 Seconds; Support Slow Shutter

Support — 2D, 3D Noise Reduction; Backlight Compensation, Slow Exposure, Exposure Compensation

Frame Rate — 2.0MP 25/30 Frame (Full Real Time), Support 1~30 Frame/Seconds Adjustable

Network interface — RJ45 Ethernet,10/100M; Support TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6;

onvif

Access Protocol — Standard ONVIF Protocol, Support Third Party Access; PC; Support IE6.0 and above Smart Phone, Support Android\iPhone

Lens

IR Distance — 80m-100m

Optical Focus — 33X Zoom

Wiper Function — Support

Function — Support WEB Configuration, OSD, Real-Time Video, Transmission Support Dual Stream, Support SD Card

Pan Tilt

Rotation Range — Horizontal 360° Unlimted Rotation, Vertical -30-90°, Auto Reversal

Rotation Speed — Horizontal & Vertical Min 0.01°, 0-60°/S

Presets — 256

High Precision GPS — UM960; YU101

Housing Material

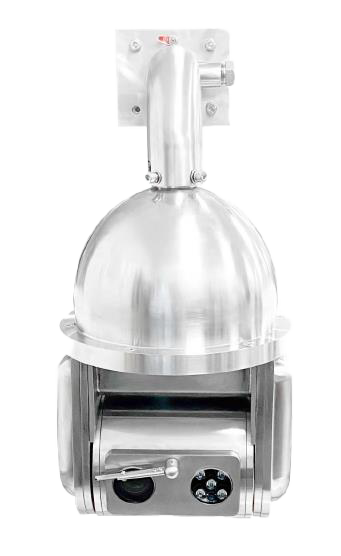

Explosion-Proof Housing — 316 Stainless Steel, Polishing Passivation Treatment, Rust

Corrosion Resistance, Never Fade

Ingress Protection — IP68

Method of Installation — Bracket Mount

Atex Mark — II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC(85 degree) Db

IEC Mark — Ex dIIC T6 Gb/DIP A20 TA, T6

Power —  DC24V4A /AC220V Based on Additional Cost
