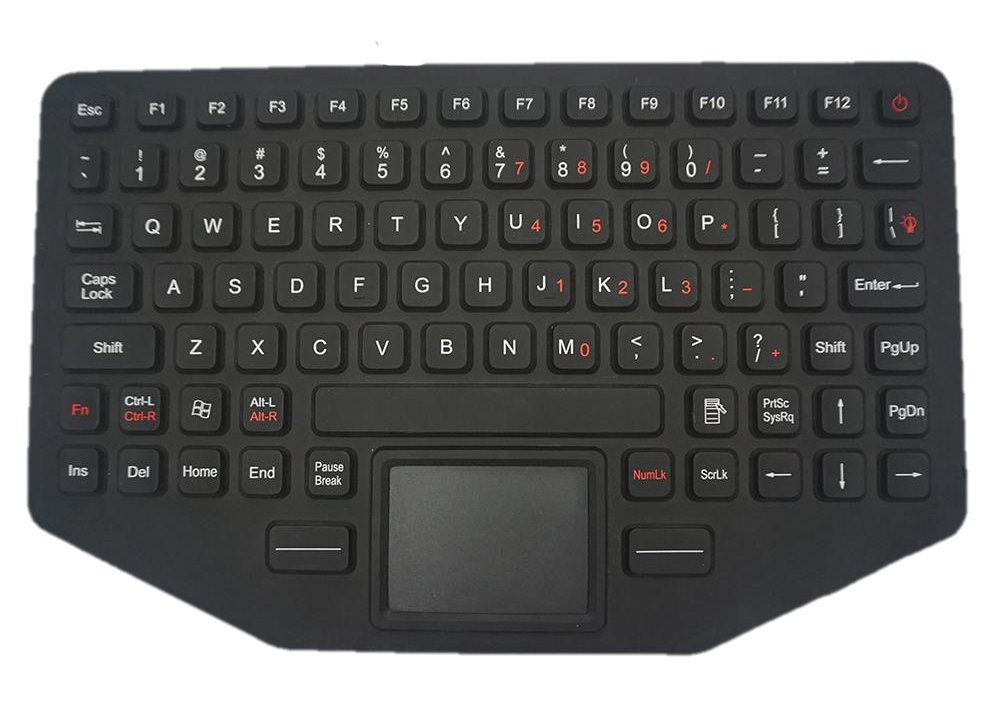

Silicon Rubber Keyboard with Touchpad, Panel Mount, Military Standard
- Silicone Keyboard with Function Keys
- Touchpad with Left/ Right Click Button
- 12 Function Keys
- Red Backlight On/ Off Operation (Brightness Adjustable)
- USB Interface
- Panel Mounted with Mounting Holes
- IP67, Resistance in Salty or Greasy Environments
MIC-K8903
Number of Keys
89
Key Switch
Carbon Switch Technology
Switching Cycles
More than 5 Million Actuations
Material
Silicone
Backlight
Red LED
Touch Pad
Capacitive Type, X/Y Resolution: >1,000 dots/inch (40 dots /mm)
Power Supply
5V DC +/-5%
Interface
USB 2.0
Compatibility
All Windows, Linux, Mac
Dimensions
285.0 x 179.7 mm (Front Panel)
Weight
0.7kg
Other
Functional Keys Activation & Keys Lock Operation
Antimicrobial One-Pece Silicone Cover with Nano-Ag
Operating Temperature
-20°C to +60°C
Storage Temperature
-30°C to +60°C
Humidity
Suggested Best Environment: 90%@40°C, 5% to 95%RH, Non-Condensing
Shock & Vibration
MIL-STD-810G
Protection Rating
IP65; IK08
EMC Standard
EN55032:2015, EN55035:2017
Design to Meet MIL-STD-461E & JSS55555
Other
Resistance in Salty or Greasy Environments
MIC-K8903
Silicon Rubber Keyboard with Touchpad, Panel Mount, Military
Standard

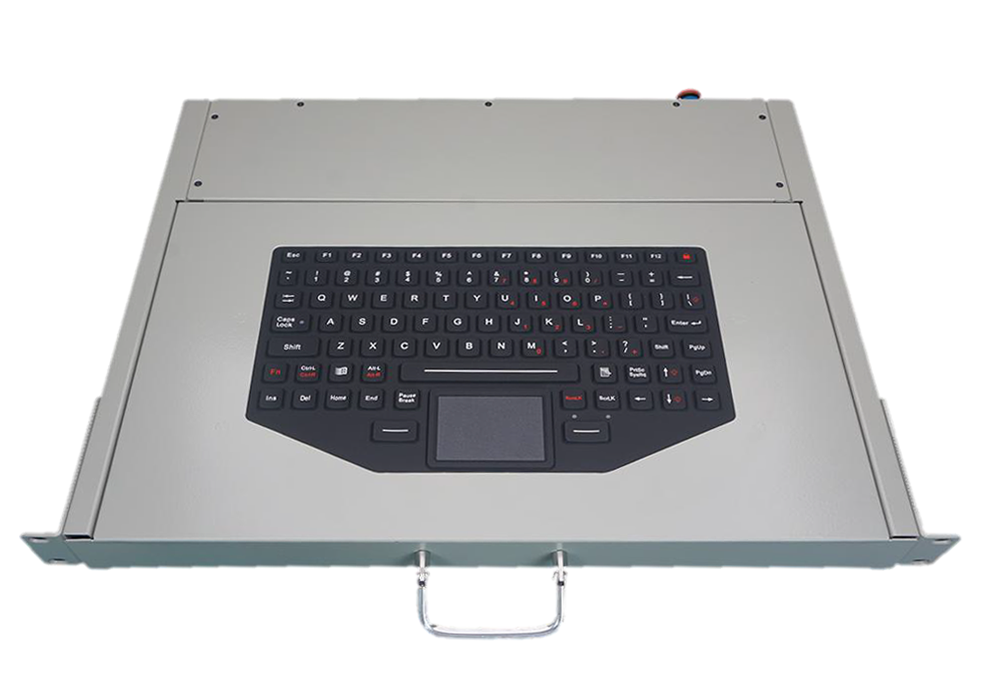

MIC-K8903-1U
MIC-K8903 & 19” Rack Mount Drawer Integration
Computer Connections
1
Control Port (Keyboard/ Mouse)
1x DB9F
PC Port (Keyboard/ Mouse)
1x USB-A
1x 6P Mini-DIN F (Purple)
1x 6P Mini-DIN F (Green)
Cable Length
1800mm
Humidity
0-80% RH, Non-Condensing
Weight
4kg
Material
Metal
Product Dimension
440 x 355 x 42.5mm
