SLM-MR050M-E
- 5 TFT LCD Panel
- Operating Temperature: -20°C To +70°C
- Storage Temperature: -30°C To +80°C
- Optical Bonding: EMI Mesh With Optical Bonding
- LED Life Time: 50,000 Hours (Min)
- EMI/EMC Is Designed to Meet ML-STD-461E/F
- Shock Is Designed to Meet MIL-STD-810D
- Vibration Is Designed to Meet MIL-STD-810E

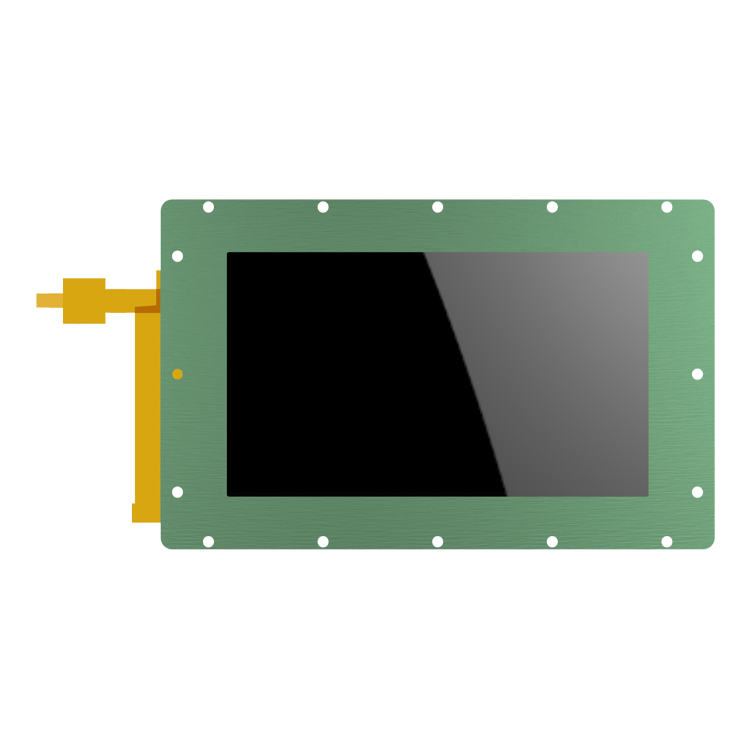

5" LCD Module Open Frame
LCD Module
LCD Panel Size — 5 TFT
Backlight — LED
Resolution — 720 x 1280
View Angle — ±80° (H), ±80° (V)
Luminance — 700 Cd/M² (After Bonding)
Contrast Ratio — 800:1
Aspect Ratio — 16:9
Response Time — 30 Ms
No. of Colors — 16.7M
Active Area — 62.10 x 110.40 mm
Pixel Pitch — 0.08625 (H) x 0.08625 (V)
LED Life Time — 50,000 Hrs (Min)
Touch Screen
Touch Type — Capacitive Multi Touch
Viewable Area — 110.25 x 62.23 mm
Active Area — 110.25 x 62.10 mm
Touch Interface — I2C
Touch Glass — AR Coating, Strengthened Glass
Optical Bonding — EMI Mesh With Optical Bonding
Touch Drivers — Support Windows, Linux, Etc.
Operating Temperature
-20°C To +70°C (Note)
Storage Temperature
-30°C To +80°C (Note)
Humidity
Ta≦40°C, 95%RH, Non-Condensing
EMI/EMC
The LCD Kit Is Designed to Meet ML-STD-461E/F for a Whole Display Unit (Note)
Shock
The LCD Kit Is Designed to Meet MIL-STD-810D for a Whole Display Unit (Note)
Vibration
The LCD Kit Is Designed to Meet MIL-STD-810E for a Whole Display Unit (Note)
Altitude Above Sea Level
0～9144 M (30,000 Feet) (Note)
*Note: LCD Kit Has to Be Properly Packed with Bezel and Back Cover with Required EMI-EMC and IP Gaskets to Meet EMI/EMC and Environmental Specifications.
SLM-MR050M-E
5 Inch LCD Module Open Frame
