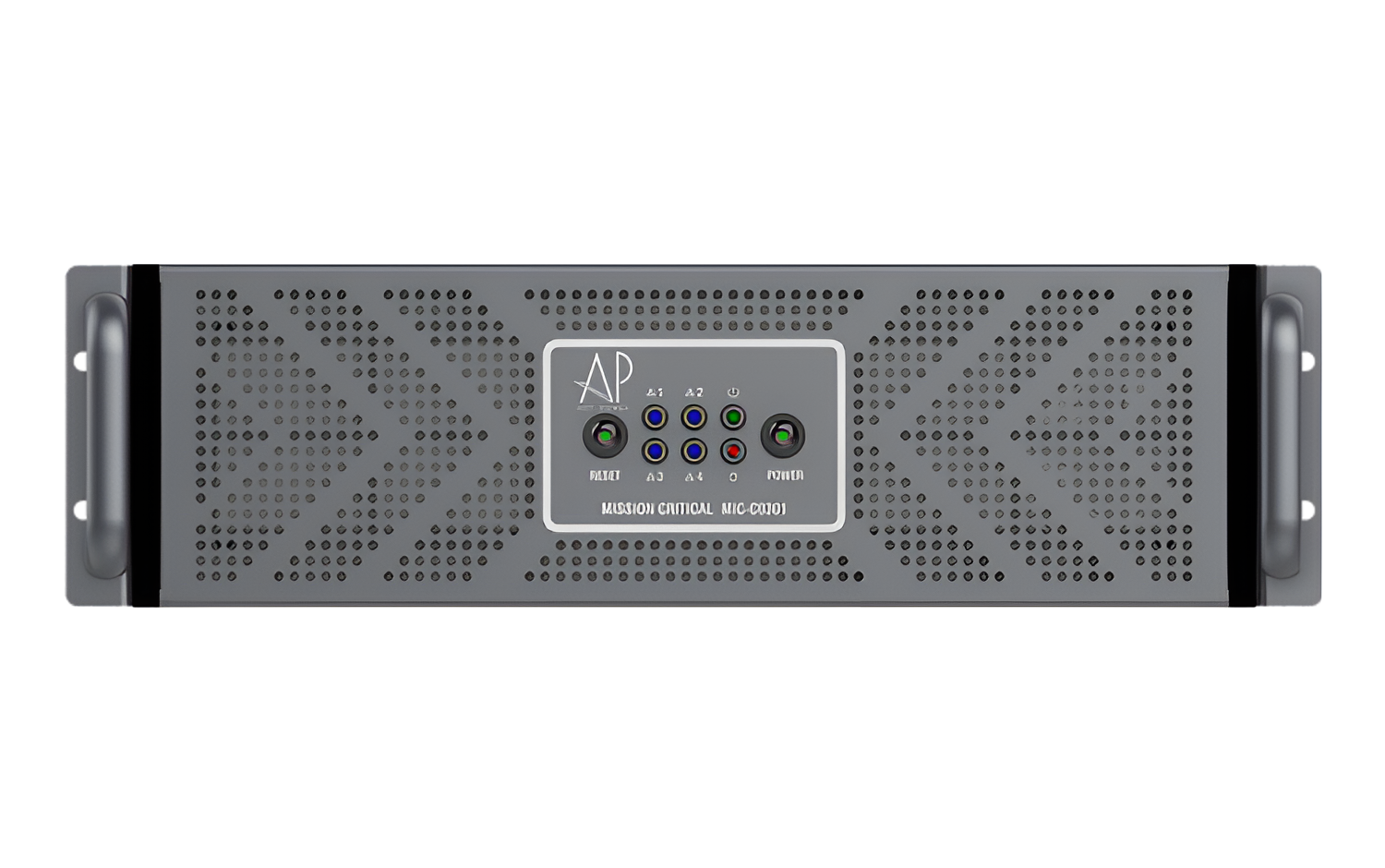

MIC-S0301
- 3U 19" Rack Mount Type Server
- Intel Xeon Gold G230 Processor, 20 Cores, 40 Threads
- Up to 256GB Capacity Each Slot, 12 DIMM Slots
- Supports DVI-D, HDMI, VGA Output
- MIL Circular Connector with Dust Caps
- -30 to +55°C Operating Temperature
- Designed to Meet MIL-STD-810 & MIL-STD-461
19” 3U Rugged Server
Chassis
Rugged 3U 19" Rack Mount Server
Main Board
Server Grade/Workstation Grade Main Board
Chipset
Intel® C621
Processor
- Intel® Xeon® Gold 6230 Processor, 20 Cores, 40 Threads
- 2.1 to 3.7 GHz Frequency
- 42MB Cache Memory
Memory
- Total 128 GB ECC DDR4 2933 MHz Pre-Mounted
- Up to 256 GB Capacity Each Slot, 12 DIMM Slots
Graphics
- 1 ASPEED AST2500
- GEFORCE GT 710
- 2GB DDR3 64-bit Graphics RAM
- 1 x DVI-D Supports Up to 4096x2160
- 1 x HDMI Supports Up to 4096x2160
- 1 x VGA Supports Up to 2048x1536
Storage
- M.2 Interface: 4 PCIe 3.0 x4, RAID 0 & 1
- Form Factor: 2242/2260/2280/22110
- Key: M-Key
- M.2 Supports RAID 0, 1 (Up to RAID 5, 10), VROC Key Is Required for RAID
- 2 TB M.2 SSD Pre-Mounted
PCI-E
- 4 PCIe 3.0 x16
- 3 PCIe 3.0 x8 (in x16 Slot)
- (2 Slots Occupied by Display Card and LAN Extension)
I/O Ports Rear (MIL Circular with Dust Caps, Cable Secured)
- 4 x LAN with D38999 Military Connector
- 3 x USB2.0 with D38999 Military Connector
- 3 x RS232 with D38999 Military Connector
- 1 x HDMI with D38999 Military Connector
- 1 x DVI-D with D38999 Military Connector
- 1 x AC with D38999 Military Connector
I/O Ports Front Buttons
1 x On/Off Button
1 x Reset Button
2 x LED Indicators
Supported OS
Linux
OS
Red Hat Enterprise Linux WS v8.0 or above with 1 Year RHN
Cooling
Forced Air Cooling with High-Speed, High-Volume Fans
Dimensions
3U - 17.5" x 24" x 3.5" (W x L x H)
Weight
Approx. 15kg
Power
- Power Consumption — Approx. 200 Watts
- Power Supply — Dual 550W Redundant Power Supplies
- Supports Automatic Power on State in BIOS
- Power Input — AC 90-264V Input
Operation Temperature
-30°C to +55°C (Note)
Storage Temperature
-40°C to +70°C (Note)
Humidity
240 Hours or Better MIL-STD-810, Humidity, Method 507, Procedure II
EMI/EMC
MIL-STD-461E, RE 102, CE 102 Compliant or Better
Shock
20g, 11 msec - Functional Shock or Better, 40g, 11 msec Crash Hazard Shock or Better MIL-STD-810, Shock, Method 516, Procedures I/V
Vibration
4.43 grms, 5-500 Hz, 75 Min/Axis or Better MIL-STD-810, Vibration, Method 514, Procedure I
Altitude Above Sea Level
15,000 ft Operation, 40,000 ft Transport or Better MIL-STD-810, Altitude, Method 500
Note: To Work with the Mentioned Certifications, This LCD Kit Offers the Potential to Meet Such Certifications. However, It Still Depends on the Final Design of the Complete Unit to Pass the Testing and Validation Required for Certifications.
