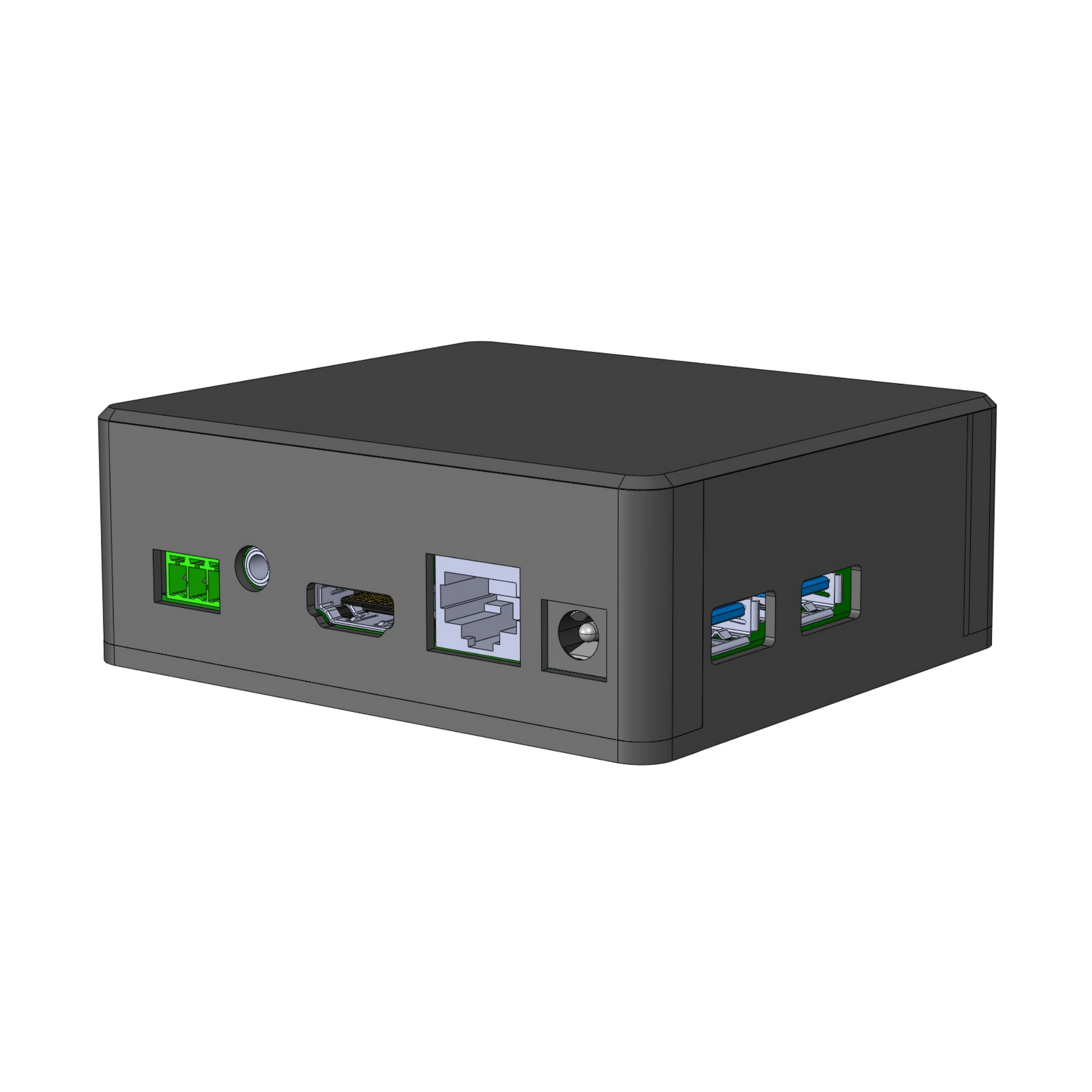

ESY-CRK02
Set-Top Box Design with Integrated TF Card, USB, and HDMI Interfaces
- Quad Core 64-bit Cortex A55 with up to 1.8GHz
- GPU ARM G52 2EE
- 1080p@60fps H.265/H.264 Video Encoder
- 2GB LPDDR3
- 16GB eMMC
- 1x RJ45 Port, 10/100M
- 1x USB 2.0
- 1x USB OTG
- 1x HDMI 2.0
- TF Card Support (up to 128GB)
- Android 11
SOC
Quad Core 64-bit Cortex A55 with up to 1.8GHz
Microarchitecture
ARMv8-A (64-bit) ARMv8 Cryptography Extensions
GPU
ARM G52 2EE, Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, Embedded High Performance 2D Acceleration Hardware
Memory
2GB LPDDR3 on Board
Storage
16GB eMMC on Board
TF Card
Support, up to 128GB
External I/O
1x RJ45, 10/100M Adaptive Ethernet
1x USB 2.0
1x USB OTG
1x HDMI 2.0
1x RS485
1x Infrared Receiver, Support Infrared Remote-Control Function
OS
Android 11
Power
5V/2A
Output 5V DC, 1x DC Power Jack
Material
Plastic Case
Form Factor
Approximately 90×90X13 (mm)
Weight
TBD
Operating Temp.
0℃ to 70℃, Recommend 5℃~35℃
Storage Temp.
-35℃ to 75℃, Recommend Storage at Room Temperature
Humidity
10% - 90% , Non-Condensing
