ESY-CI506
Intel Core Ultra 5 Mini PC
- CPU: Intel Core Ultra 5 Processor 125U
- Memory: DDR5 SO-DIMM slots x 1(up to 96GB)
- Storage: M.2 M-Key 2280 x 1, PCIe 3.0 x 2 / SATA 3.0
- Input Voltage: DC 9–36V, 120W
- 5G: M.2 B-Key for 5G module
- Wifi: M.2 E-Key slot for Wi-Fi 7 module
- I/O Interface: Ethernet x 1, USB x 6,Type C x 1, DDR5 SO-DIMM x 2, M.2 2280 x 1, Wi-fi M.2 x 1, 5G M.2 x 1, Power Jack x 1
- Cooling: Fanless Design
- OS: Windows 11 IoT LTSC 2024
CPU
Intel Core Ultra 5 Processor 125U
Memory
DDR5 SO-DIMM slots x 2, up to 96GB total
Storage
M.2 M-Key 2280 x 1, PCIe 3.0 x 2 / SATA 3.0
SIM Slot
SIM Card Slot x 1
Antennas
External Antenna x 4
5G
M.2 B-Key x 1 for 5G ( SRM825N)
Wi-Fi
M.2 E-Key slot for Wi-Fi 7 module
TPM
TPM 2.0 Supported (Trusted Platform Module

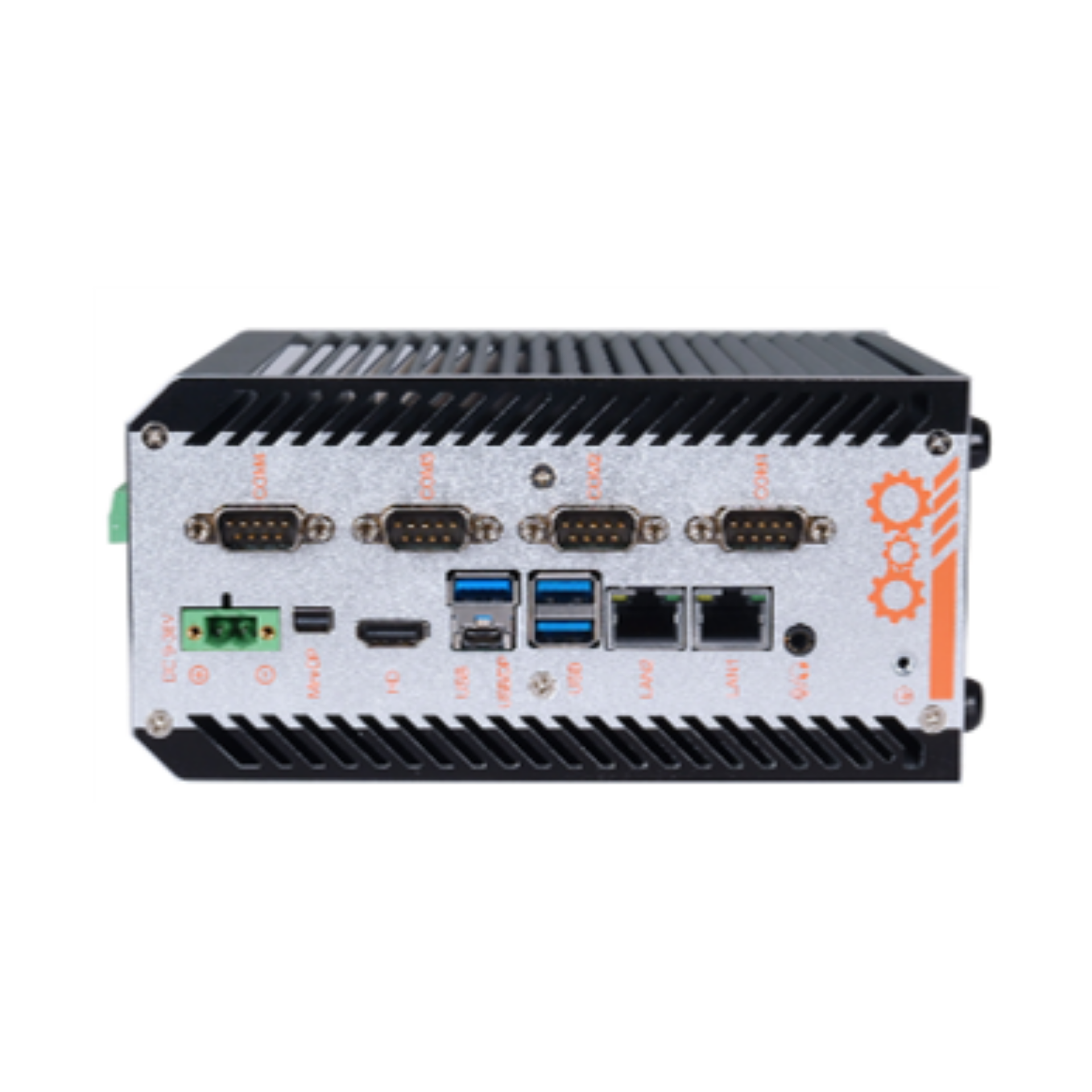

Front Panel
DC 9–36V Terminal Block x 1, Audio x 1, mDP x 1, HDMI x 1, RJ45 LAN x
2, USB Type-C (DP + USB) x 1, USB Type-A x 3, COM x 4
Rear Panel
USB Type-A x 4, GPIO Terminal Block x 1, Antenna Connector Hole x 4,
Power Button x 1, LED Indicator x 2
Cooling
Fanless
Power Voltage
DC 9–36V, 120W
Power Consumption
Approx. 70–75W
Power Adapter
24V 5A
Dimension
174 x 129 x 86 mm
Gross Weight
4Kg
Mounting
Wall Mount with Keyhole Slots ( R2.5 / R4.5 mm)
Case Material
Aluminum
Chassis Color
Black and Silver with Orange Accents
OS
Windows 11 loTLTSC 2024
Operating Temp.
0°C to +60°C
Operation Humidity
+5% -90%, Non-Condensing
Storage Temp.
-20℃ to 85℃
Storage Humidity
+5% -90%, Non-Condensing
Compliance/Certification
CE/FCC/RoHS
ESY-CI506
Mini PC
