ESY-CRK01
- Rockchip RK3568B2 Quad-Core Arm® 4 x Cortex-A55 Up to 2.0GHz
- GPU ARM Mali-G52 1-Core-2EE
- Built-in NPU with 0.8 TOPS AI Acceleration Capability
- VPU 4K@60fps H.265/H.264/VP9 Video Decoder
- VPU 1080p@60fps H.265/H.264 Video Encoder
- 8GB LPDDR4
- 64GB eMMC
- 2x 1Gbps Ethernet
- 2x USB 3.2 Gen 1 Type-A
- 1x HDMI
- Linux Ubuntu Core 24.04

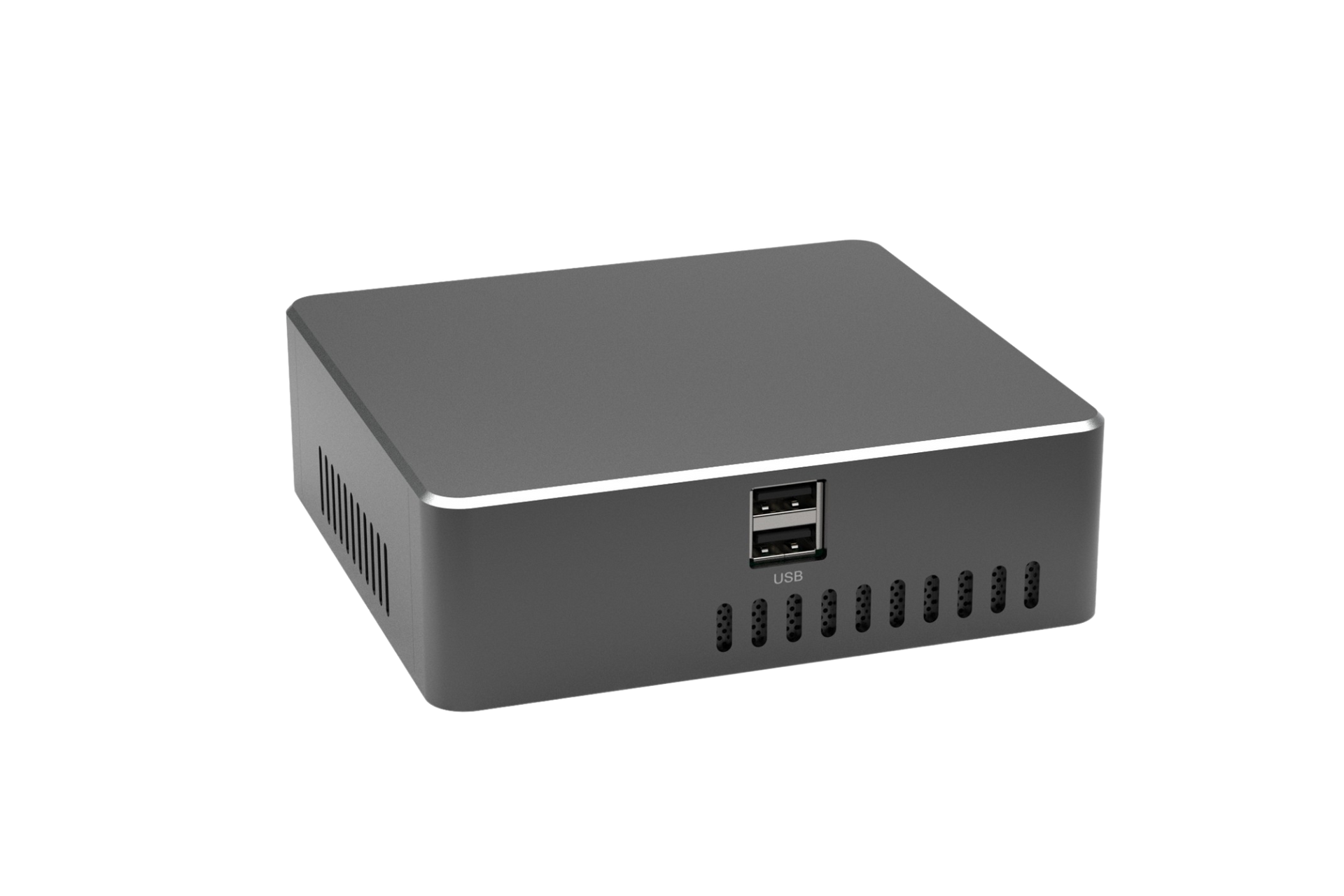

Rockchip RK3568 Gateway PC
SOC
Rockchip RK3568B2 Quad-Core Arm® 4 x Cortex-A55 Up to 2.0GHz
Microarchitecture
ARMv8-A (64-bit) ARMv8 Cryptography Extensions
GPU
Mali-G52 1-Core-2EE
VPU
4K@60fps H.265/H.264/VP9 Video Decoder
1080p@60fps H.265/H.264 Video Encoder
NPU
0.8 Top
Memory
8GB LPDDR4X On Board
Storage
64GB eMMC On Board
External I/O
2x 1Gbps Ethernet
2x USB 3.2 Gen 1 Type-A
1x HDMI
OS
Linux Ubuntu Core 24.04
Power Supply
12V / 3A
Output 5V DC, 1x DC Power Jack
Housing Material
Metal Case
Operating Temperature
0°C to 50°C
Storage Temperature
0°C to +60°C
Humidity
90% @25°C, Non-Condensing
Dimension
Approximately 136×126 x 42 (mm)
Certifications
CE/FCC/RoHS, applied after sample confirmation. TBD
ESY-CRK01
Rockchip RK3568 Gateway
