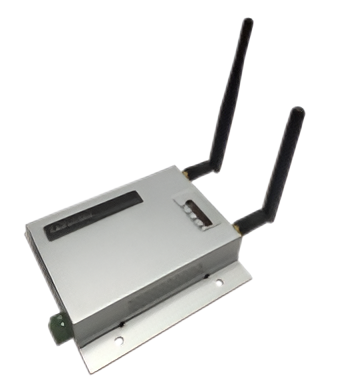

ECN-T4RW
EASYCON 4G Wi-Fi Router
- Highly reliable M2M serial terminals.
- Out-of-the-box prototyping of Wireless network from industrial RS-232 and RS-485 serial ports.
- 3 LEDs indicate LAN, NET, and WAN across all the data traffic modes.
- Easy-to use Plugene Software for terminal configuration.
- Sophisticated PlugMaster Software for integration of 3G network and original application systems.
- 4G wireless network gives the best coverage and mobility.
- "Always On" wireless communication gives real time remote monitoring.
- Full product documentation.
M2M Wifi
LTE 900/1800/2100 MHz
802, 11b/g/n
Dimension
108 x 104 x 25 mm (W x D x H)
Watchdog
Built-in
Interface
RJ45/RS-232 Console Port
Ethernet
10/100M
Web Fun.
ICMP/IP/TCP/UDP/DHCP/PPP/ARP
TELNET/DNS/SSH/VRRP/HTTP/HTTPS
Power
DC 9V-30V
Setup
Wall Mount
Surge Protect
2KV
15KV EDS
Support
Operating Temperature
-20°C-85°C
Storage Temperature
-40°C ~ 85°C
Humidity
5%-95%
Certification
CE, NCC
ECN-T4RW
EASYCON 4G Wi-Fi Router
