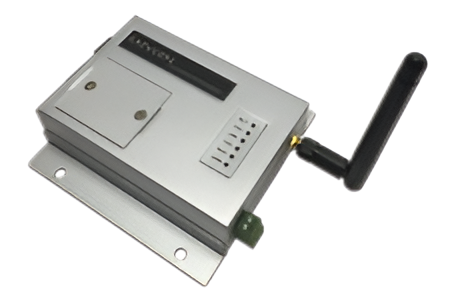

ECN-T4
EASYCON 4G Terminal
- Highly reliable M2M serial terminals.
- Out-of-the-box prototyping of Wireless network from industrial RS-232 and RS-485 serial ports.
- Provide DIO 4 in / 4 out (Optional)
- 6 LEDs indicate power, GSM link and all the data traffic modes.
- Easy-to use Plugene Software for terminal configuration.
- Sophisticated PlugMaster Software for integration of 3G network and original application systems.
- 4G wireless network gives the best coverage and mobility.
- "Always On" wireless communication gives real time remote monitoring.
- Full product documentation.
Memory
128K SRAM
Modulation
4G 900/1800/2100 MHz
Dimension
103 x 104 x 25.3 mm (W x D x H)
Watchdog
Built-in
RS-232
Male DB-3
RS-485
RS-485(2 Wire)
Digital IO (Optional)
4 Input / 4 Output
DC Input
DC 9V-30V
Consumption
≤0.8W
Operational
≤1.5W
Operating Temperature
-20°C-85°C
Storage Temperature
-40°C ~ 85°C
Humidity
5%-95%
Certification
CE, NCC
ECN-T4
EASYCON 4G Terminal
