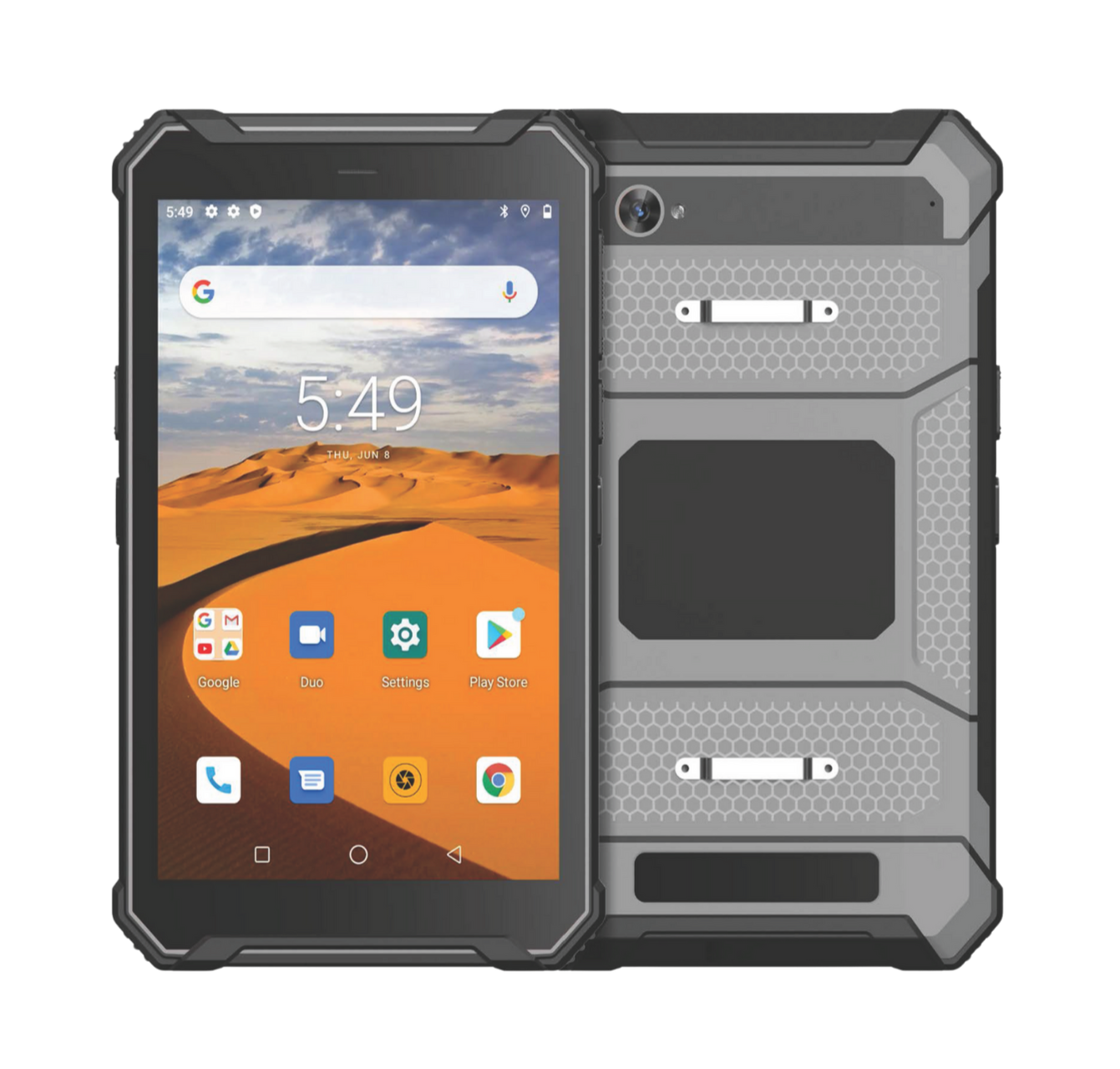

ACT POWER ESY-L0801


  • Integrated with MTK8791H (Octa-Core, 2.4GHz)
  • OS: Android 16
  • LCD: 8-inch HD + IPS1280*800
  • Brightness: 1000 nits
  • Memory & Storage: 8GB+256GB
  • Camera: Front – 8MP, Rear – 32MP
  • Battery: 12000mAh, 33W Fast Charging
  • Supports NFC Function
  • Design to Meet IP68/MIL-STD 810G

ESY-L0801

8” Rugged Android Tablet

Performance

CPU — MTK8791H (Octa-Core, 2.4GHz)

LCD — 8.0-inch HD+ IPS1280*800

Brightness — 1000 nits

OS — Android 16

RAM — 8GB

ROM — 256GB

Camera

  • Front Camera: 8MP Pixel
  • Rear Camera: 32MP Pixel, Auto-Focusing

Battery — 12000mAh, 33W Fast Charging

NFC — Yes

Work Time

  • Operation Time: 15 Hours
  • Standby: About 15 Days

Button

  • 1 x Power On/Off, 1 x Volume +/-
  • 1 x Programmable Smart Key, 1 x Broadcast Key

Compass — Support

AC Power — 110~240v 11V 3A

Wireless

  • WIFI (2.4G/5G) / WIFI6
  • Bluetooth: BT5.2
  • GPS, GLONASS, Galileo

Sensor — Gravity Sensor, Light Sensor, Range Sensor, Gyroscope Sensor

I/O Port

  • USB Type C
  • Supports OTG

Others

  • TF Card: Supports up to 512GB Micro SD
  • SIM Card: Double SIM (Nano)

Communication

2G — GSM850/900/1800/1900

3G — 850/900/1700/1900/2100(Band1、2、4、5、6、8、19)

4G

  • FDD-LTE: Band1/2/3/4/5/7/8/12/17/18/19/20/25/26/28AB/66
  • TTD-LTE:B34/38/39/40/41

5G — N1/N3/N7/N28/N38/N41/N77/N78/N79


Physical Characteristics

Form Factor —  217 x 129.3 x 16.2 mm

Weights — 643g


Operating Temperature

-20°C to +60°C


WorkingTemperature

-30°C to +70°C


Humidity

3% - 80% RH


Certifications

Design to Meet IP68/MIL-STD-810G


ESY-L0801

8” Rugged Android Tablet
