- 12.1” LCDPanel 1024 x 768 (XGA)
- High Brightness Display 1200 nits for Outdoor Readability
- PCAP Multi-Touch Glove and Water-Operable
- Panel Mount, Fixed Installation
- Operation from -40 to 70 °C
- Rugged Industrial Design IP65/ Type 4X (Front)
- Design Meet UL, cUL, ATEX, CE, FCC, ICES Standard
- Embedded Mount Design

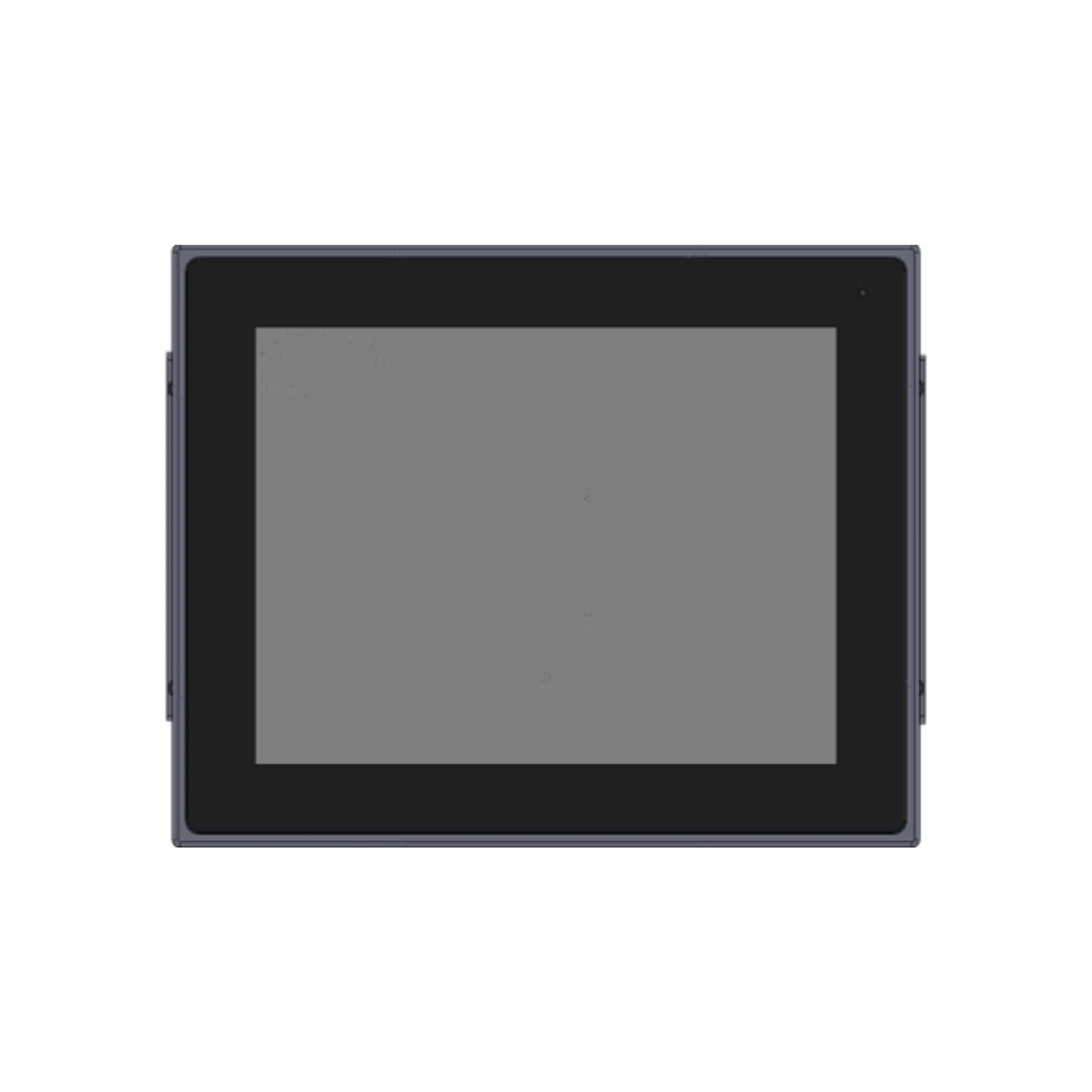

ESY-D1201
12.1” Industrial Touch Panel
Panel Size
12.1”
Resolution
1024 x 768 (XGA)
Aspect Ratio
4:3
Brightness
1200 nits
Contrast Ratio
800:1
Touch Technology
Projected Capacitive (PCAP)
Touch Interface
USB
Backlight Life
50,000 Hour
Power Input
12-24V DC
PowerConsumption
24W (Typical)
Interface
Display Port x1
HDMI x1
VGA x1
USB –B (Touch)
3-Pin Screw-Type Power Connector
Front Bezel
Powder-Coated Aluminum
Colour
Pantone:BlackC(PrintSpray)
Mounting
Panel Mount
Dimension
300.56 x 239.14 mm
Weight
2.54kg / 5.59lbs
Operating Temperature
-10°C to +70°C
Storage Temperature
-30°C to +80°C
Humidity Range
10-90%, @40°C, Non-Condensing
Certifications
Design To Meet:
Ordinary Locations –UL/cUL: UL61010-1, UL61010-2-201-CSA:
CSAC22.2 No. 61010-1/-2-201
Hazardous Locations –UL/cUL: Class I Division 2 (UL 121201/CSA C22.2
No. 213)ATEX: II3GExecIICT5Gc
EMC –CE: EN IEC 61326-1
EMC –FCC: Part 15B ICES-001
IP Rating
IP65 /Type 4X Front Protection
ESY-D1201
12.1” Industrial Touch Panel
