- 7-inch Panel PC based on the RK3576 platform
- Dual Gigabit Ethernet-2 ×1000 Mbps LAN
- Flexible Serial I/O Expansion for RS485 and RS232
- Multiple display interfaces: eDP / LVDS / MIPI / HDMI
- Suitable for front mount installation
- IP65 waterproof protection for surface

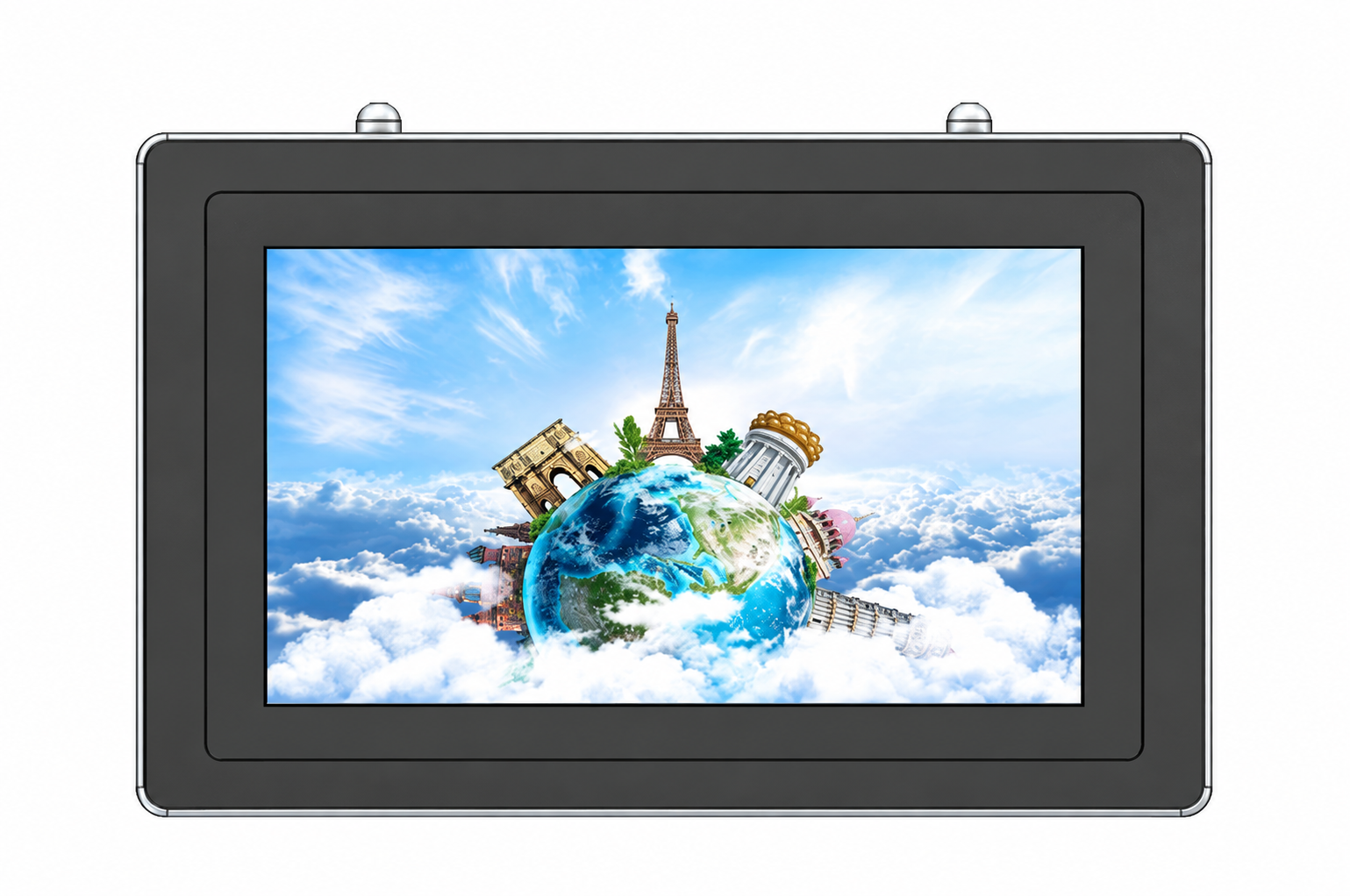

ESY-A0702
7-inch Rockchip RK3576 Panel PC
CPU / NPU
Rockchip RK3576, 4 x Cortex-A72 + 4 x Cortex-A53, up to 2.2GHz; 6 TOPS NPU
Memory
LPDDR4X 4GB standard
Storage
eMMC 32GB
Display Interfaces
1 x eDP, 1 x LVDS, 1 x MIPI, 1 x HDMI 2.0 output up to 4K@60Hz
Network
2 x 1000 LAN
USB
2 x external USB 2.0, 1 x external USB 3.0 OTG, additional internal USB 2.0 headers
Serial / Control
COM1 / COM2: RS485 (optional RS232); COM3 / COM4: RS232
PanelSize
7-inch
Backlight
LED Backlight
Lifetime
50,000 hours
Touch Type
Capacitive Multi Touch Screen, Black print surrounding
Surface Hardness
>5H
Surface Treatment
AG/AR
IP Rating
IP65 Front
Material
Aluminum
Operating Temperature
-10°C to +70°C
Storage Temperature
-20°C to +70°C
Certifications
CE/FCC/RoHS, applied after sample confirmation
ESY-A0702
7-inch Rockchip RK3576 Panel PC
