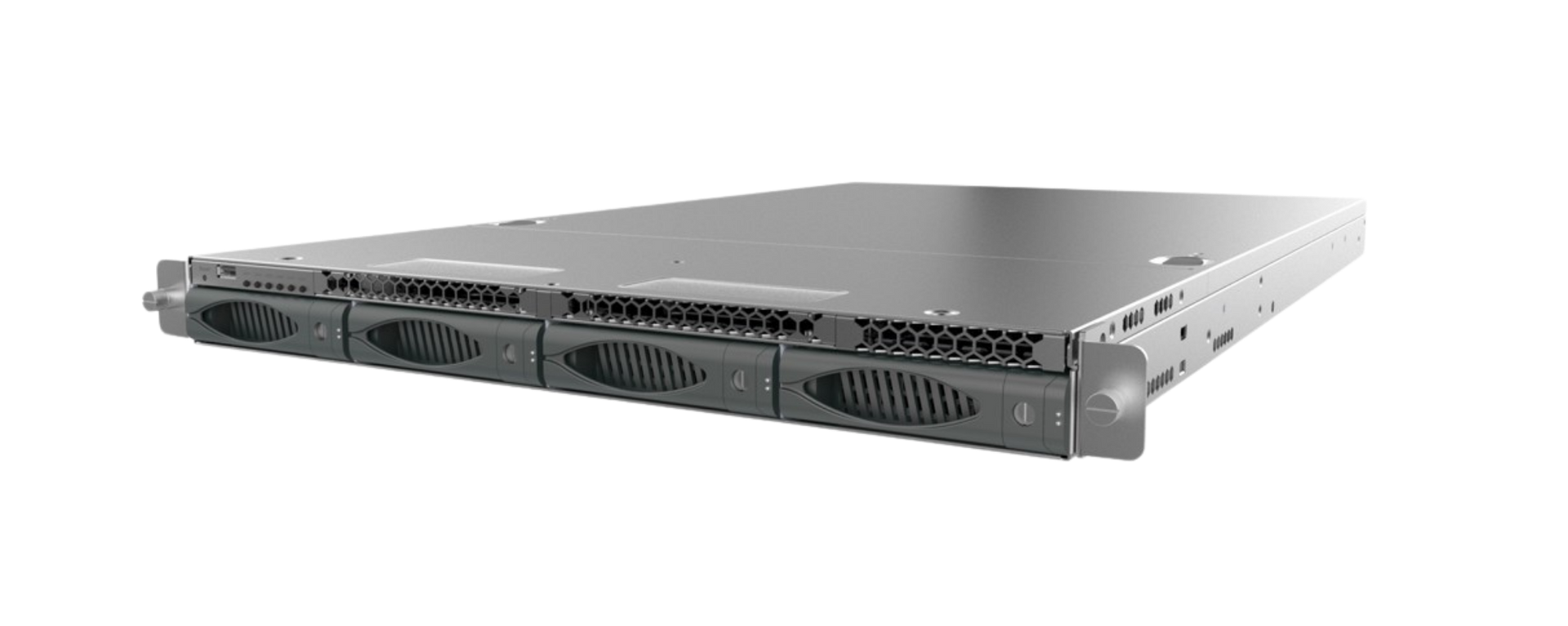

ESY-S0101-NAS
- Intel® Processor N100, 1U Rackmount
- 1 x DDR5 4800MHz, SO-DIMM, Max 32GB
- 1 x 256GB SSD (Up to 2TB, Option)
- 4 x 3.5“ Drive Bays, Support 4 x SATA
- 1 x HDMI Output
- 2 x USB 3.0
- 2 x 2.5GbE LAN
- Mini-ITX Mainboard 17.0 cm x 17.0 cm
- Flex ATX 300W 80 PLUS
- Ubuntu 24.04 LTS Server
1U Rackmount Network Appliance with Intel® Processor N-series
CPU
Intel® Core™ Alder Lake-N100 Processor, Up to 3.40 GHz
Memory
1 x DDR5 4800MHz, SO-DIMM, 16GB
Storage
1 x 256GB M.2 SSD
Graphics
Intel® UHD Graphics
Display
1 x HDMI (4096 x 2160 @60Hz)
Ethernet
2 x 2.5GbE intel i226 LAN
Rear I/O Interface
2 x USB 3.0
6 x LAN
1 x HDMI
1 x Power key
Front I/O Interface
1 x USB 2.0, 1 x Reset key (TBC)
LED Indicators
System : Power, LAN1, LAN2, LAN3, LAN4, LAN5, LAN6 (TBC)
HDD Tray : HDD Power and Activity LED
Power
Flex ATX : 300W 80 PLUS
Cooling
5 x Cooling Fan
Case Material
Approx. 7kg
Dimension
440 (W) x 659 (L) x 44 (H) mm
OS
Ubuntu 24.04 LTS Server
Operating Temp.
0°C to +60°C
Storage Temp.
-20°C to +70°C
Humidity
5% to 90%RH, Non-Condensing
ESY-S0101-NAS
1U Rackmount Network Appliance with Intel® Processor N-series
