IAD-M121
- Supported DC 12V and 24V Input
- Support 2560 x 1600 @60 Resolution
- Supported USB By-Pass, Reserved DP Input Function for Potential Connection
- Wide Operating Temperature: -20°C to +70°C
- Support 8-bit / 10-bit Color Depth LVDS Output
- Support XVYVV Color Space

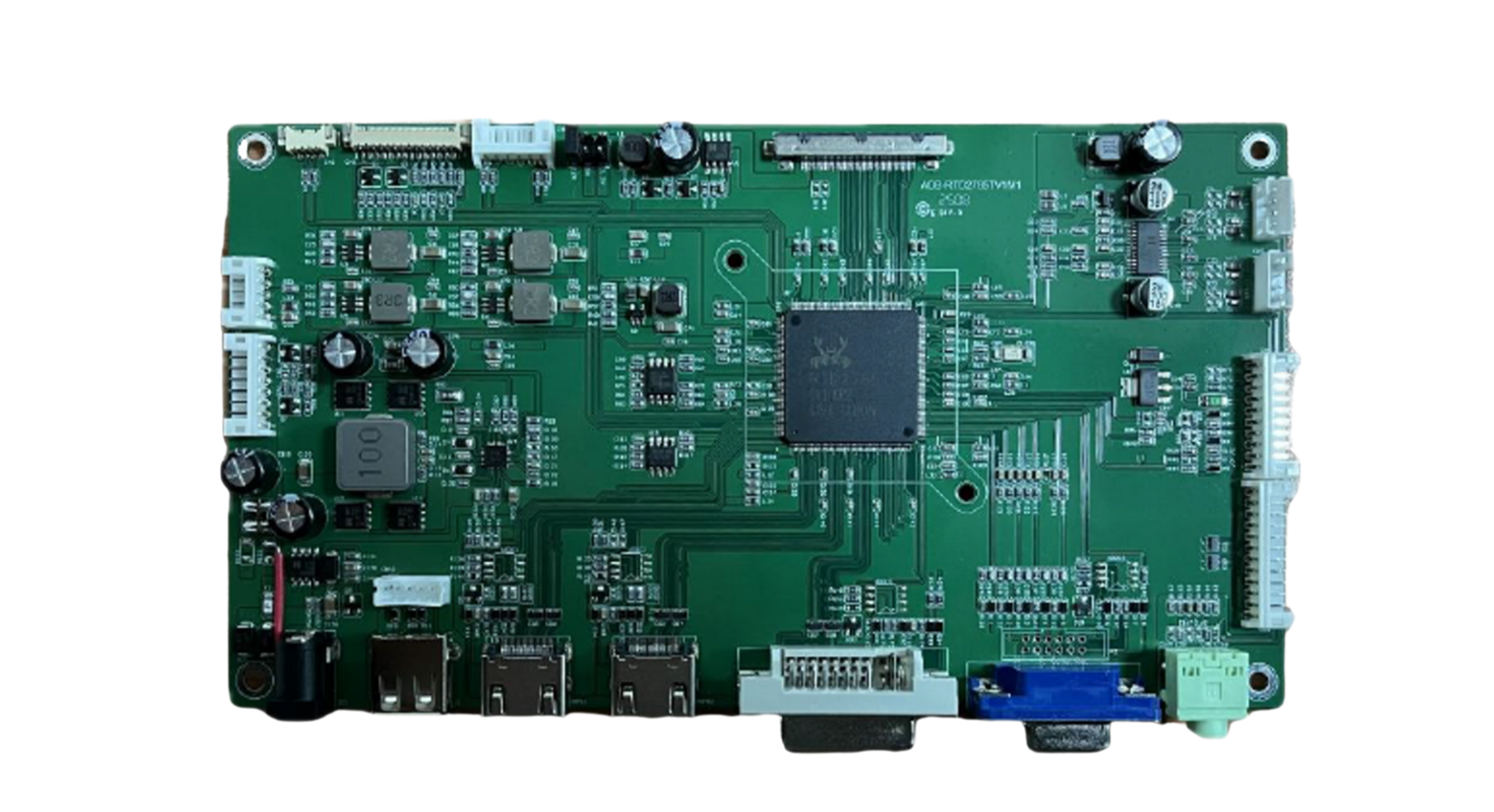

WQXGA LCD AD Board
Supported Resolution
Up to 2560 x 1600 @60Hz Panel
Input Interface (Border Line)
1x VGA
1x DVI
2x HDMI
1x Audio
B
Input Interface (On- Board Housing)
acklight, STB (5V, 1amp), Light Sensor, Key + IR, RS232/485 (Reserved, Optional), Audio, Display Port (Reserved, Optional)
Output Interface
1x LVDS (40 Pins)
Others
1x USB-A (By-Pass)
Audio
10W+10W @ 8Ω Class-D stereo Audio Amplifier
Power Input
DC+12V/ 24V (9-26 Available)
Max. Current: 3amp; Quiescent Current <50mA
Backlight Power Output
**By-Pass from DC Jack Power Input
(Needs to Make Sure the Power Input = Backlight Power Required)
Backlight Max Current
6amp
LVDS Power Selection
DC+3.3V/+5V/+12V
OSD Key
Power, Menu (/OK), Exit (/Back), Up, Down
OSD Language
English
Board Dimension
Backlight — LED
Display Area — 176.64 x 99.36 mm
Resolution — 1280 x 720
Pixel Pitch — 0.138 x 0.138 mm
Colour Pixel Arrangement — RGB Vertical
Brightness — 800 nits
Response Time — 30 ms
Contrast Ratio — 900:1
View Angle — 85/85/85/85
Interface — LVDS
Life Time — 30,000 Hours
Touch Glass
Touch Types — Capacitive Multi-Touch
Touch Interface — USB
Glass — AR/AF Strengthen Glass
Surface Hardness — 6H
Actual Area — 176.64 x 99.36 mm
Operating Temperature
-20°C to 70°C
Storage Temperature
-30°C to 70°C
Humidity
≦ 80%, Non-Condensing
IAD-M121
WQXGA LCD AD Board
