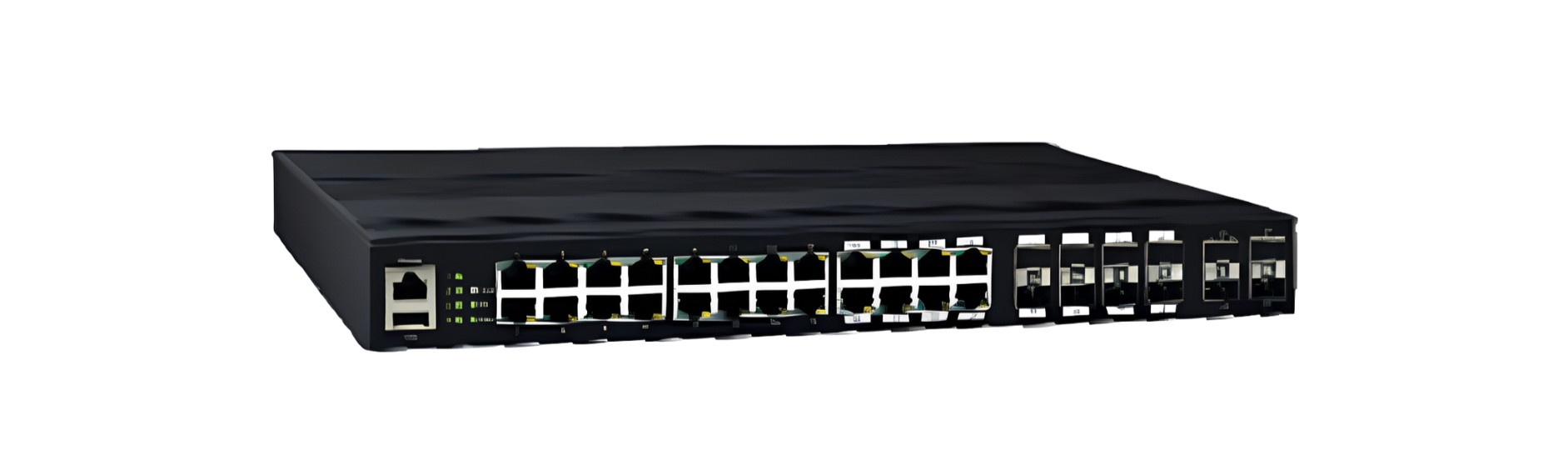

Technology

Standard  —

• IEEE 802.3 10BaseT
• IEEE 802.3u 100BaseTX
• IEEE 802.3ab 1000BaseT
• IEEE 802.3z 1000BaseX
• IEEE 802.3x Flow Control
• IEEE 802.3ad/802.1AX LACP
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1w Rapid STP
• IEEE 802.1s Multiple STP
• ITU‐T G.8032 / Y.1344 ERPS
• IEEE 802.1Q VLAN Tagging
• IEEE 802.1ad Stacked VLANs
• IEEE 802.1p Class of Service
• IEEE 802.1X Network Authentication
• IEEE 802.1AB LLDP
• IEEE 1588 PTP

Processing Type  — Store and Forward

Switch Properties

Switch Fabric — 56Gbps

Priority Queues — 8 Queues

Jumbo Frames — 9216 byte

MAC Table Size — 16K

Packet Buffer — 12M bits

VLAN Table Size — 4094

IGMP Group — 512

ACL Group — 512

Software Feature

Network Redundancy — RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP

Security — 802.1X, RADIUS, TACACS+, SSL, SSH

Management — IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP

Diagnostics —RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP, DDM

Configuration — DHCP Server/Client, Relay Option 82, TFTP, USB

Filter — 802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier,

Independent Vlan Learning

Time Sync. — NTP, IEEE1588v2 OC (Software Timestamp), TC (Hardware Timestamp)

QoS — CoS, DSCP, WRR/SPQ Queuing, Storm Protection

Industrial Profiles — Ethernet/IP, Modbus TCP

Interface

RJ45 Port — 16x 10/100/1000T(x), Auto Negotiation Speed Duplex Mode, Auto MDI/

MDI‐X

Combo Port — 8x 10/100/1000T(x) with Dual Speed SFP Combo Port, Auto Media

Detect

Fiber Port — 4x 1000F(x) SFP Slot

LED Indicators —

• Per Unit: PWR1, PWR2(AC2/DC2), Fault, Ring Master, Ring State
• Ports: Link/Active with Greed LED on the Left, Speed on the Right with Highest Speed (Amber), Low Speed (OFF)

Alarm Contact — 1x Relay Output with Current Carrying Capacity of 1A @ 24 VDC

Digital Inputs —

• 1x Isolated Input from the Electronics.
• +13 to +30V for State "1"
• ‐30 to +3V for State "0"
• Max. Input Current: 8mA

Button — Multiple Functions Reset Button

Serial Console — 1x RS232 in RJ45 Connector with Console Cable, 115.2Kbps, 8N1

Storage — 1x USB 2.0 Storage for Firmware Update, Configuration Backup, Restore,

Boot Up and Syslog

Power Requirements

Operation Voltage — 90 - 264VAC, 12 - 48VDC, Redundant Dual Inputs

Connection — AC Socket, DC 4‐Pin Terminal Block

Power Consumption — 0.3A@110VAC, 0.82A@24VDC

Protection — Overload Current Protected, Reverse Polarity Protected

Mechanical Construction

Enclosure — Aluminum/ Steel

Protection Class — IP30

Form Factor — 440 x 44 x 331 mm (W x H x D)

Weight — 4.80 kg

Mounting — Rack Mounting
