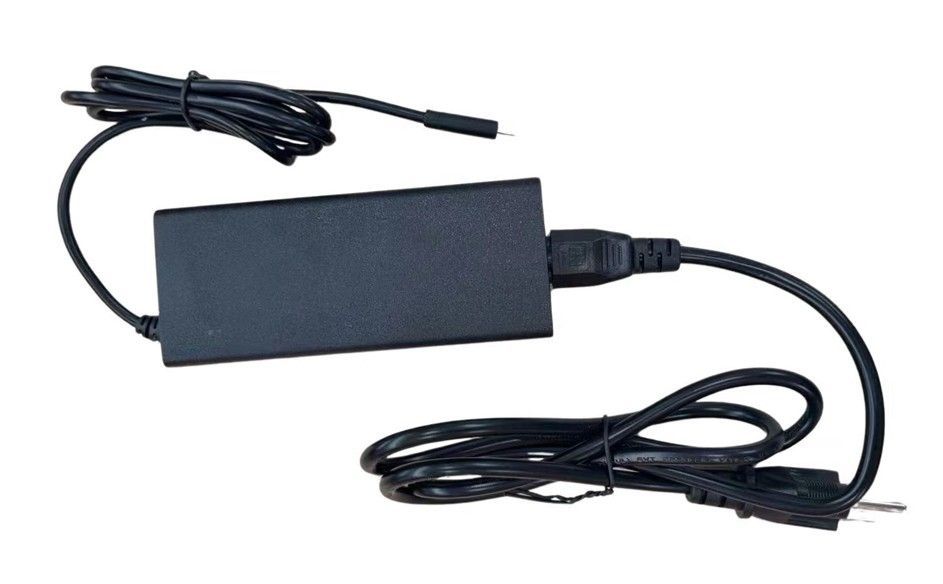

100W USB-C PD Adapter With DC Cable

• Input: 100 – 240 VAC 50/60Hz 1.6A Max.

• Output: 5VDC 3A; 9VDC 3A; 12VDC 3A; 15VDC 3A; 20VDC 5A

• Type C 100W PD Adapter

• The Power Supply Size: 137 (L) x 57 (W) x 32 (H) mm

• DC Cable: 1.5m Cable With Type-C Connector

• AC Cable (Optional) : 1.2m US Standard Cable

• Black color

DC/DC Converter , ACP-HCS2 Series

• Package Type：SIP6

• Operating Temperature range：-40℃ - +105℃

• Isolation Voltage：3000VAC

• High Efficiency up to：90%

• Compliant with Standard: International Standard Pin Method

• Fields of Application： Electricity, Industrial Control, Communication, Internet of Things, Automotive.

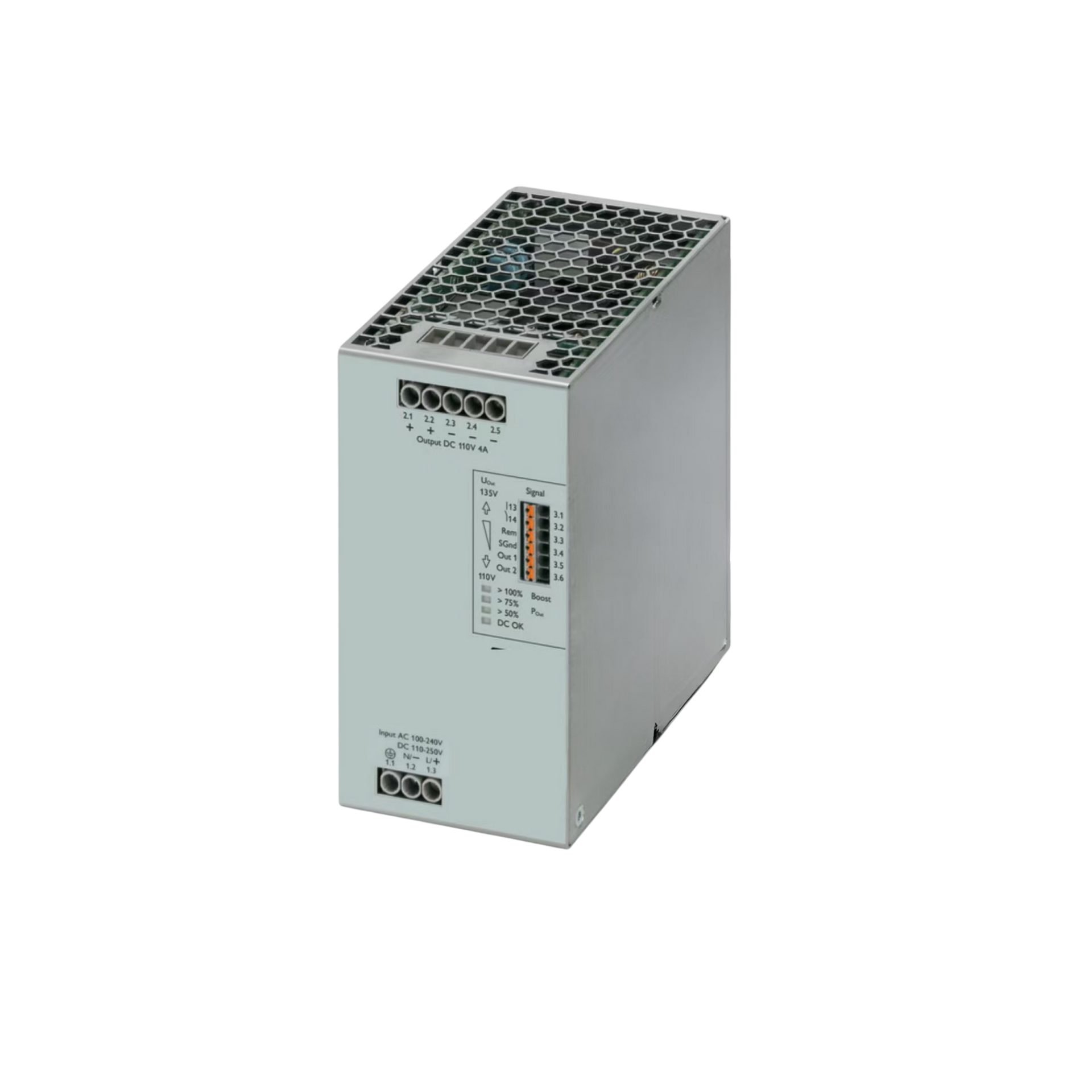

100-240V AC to 110V DC Converter

• Input Voltage Range : 100VAC to 240 VAC (±10%)

• Mains Buffering : Typ. 37ms (120VAC) , Typ. 38ms (230VAC)

• Nominal Output Voltage (UN) : 110VDC

• Setting Range of the Output Voltage (USet) : 110VDC to 135VDC

• Nominal Output Current (IN) : 4A

• Output Power (PN) : 440 W

• Efficiency : Typ. 93.5% (120VAC), Typ. 94.7% (230VAC)

• Residual Ripple : 600 mVPP

• MTBF (IEC61709, SN29500) : >688000h (40°C)

• Dimension (WxHxD) : 70 x 130 x 125 mm
